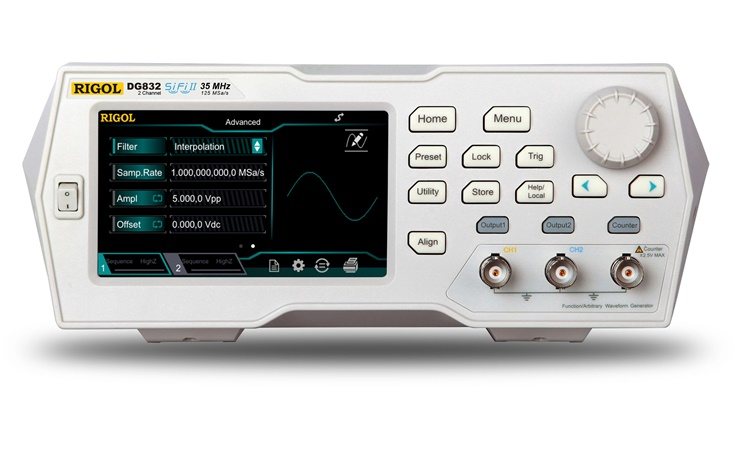

Rigol DG832

9 Reviews

2 channel function / arbitrary waveform generator with 1 μHz to 35 MHz bandwidth, 125 MSa/s samplerate, 16 Bit resolution, 2 Mpts memory depth (8 Mpts optional), amplitude range 1 mVpp to 2.5 Vpp (high impedance), 10.9 cm (4.3") touchdisplay.

This article is no longer available.

Description

The DG800 redefines the entry level waveform generator by bringing advanced capabilities like 16 bit high resolution, intuitive touch screen control, and a quiet fanless design to our most affordable line of generators. Add SiFi II point-to-point sampling technology and 2 MPts of standard arb memory and the DG800 Series delivers a powerful low cost generator for students and engineers alike.

Model	DG811	DG812	DG821	DG822	DG831	DG832
Max. Frequency	10 MHz	10 MHz	25 MHz	25 MHz	35 MHz	35 MHz
Resolution	1 µHz	1 µHz	1 µHz	1 µHz	1 µHz	1 µHz
Sample rate	125 MSa/s	125 MSa/s	125 MSa/s	125 MSa/s	125 MSa/s	125 MSa/s
Vertical resolution	16 bits	16 bits	16 bits	16 bits	16 bits	16 bits
Max Amplitude	10 Vpp <= 10 MHz	10 Vpp <= 10 MHz	10 Vpp <= 10 MHz 5 Vpp <= 30 MHz	10 Vpp <= 10 MHz 5 Vpp <= 30 MHz	10 Vpp <= 10 MHz 5 Vpp <= 30 MHz 2.5 Vpp <= 35 MHz	10 Vpp <= 10 MHz 5 Vpp <= 30 MHz 2.5 Vpp <= 35 MHz
Frequency Counter	up to 240 MHz	up to 240 MHz	up to 240 MHz	up to 240 MHz	up to 240 MHz	up to 240 MHz
Channels	1	2	1	2	1	2
