Tekbox RF Surface Current Monitoring Probes

Model	TBSCP1-5M300	TBSCP1-10M500
Characterized frequency range	30 kHz – 400 MHz	30 kHz – 600 MHz
Footprint	-7 dBΩ	-5 dBΩ
Grundfläche	40x15 mm	40x15 mm

Tekbox RF Surface Monitoring Probes

2 of 2 Article

Sorting

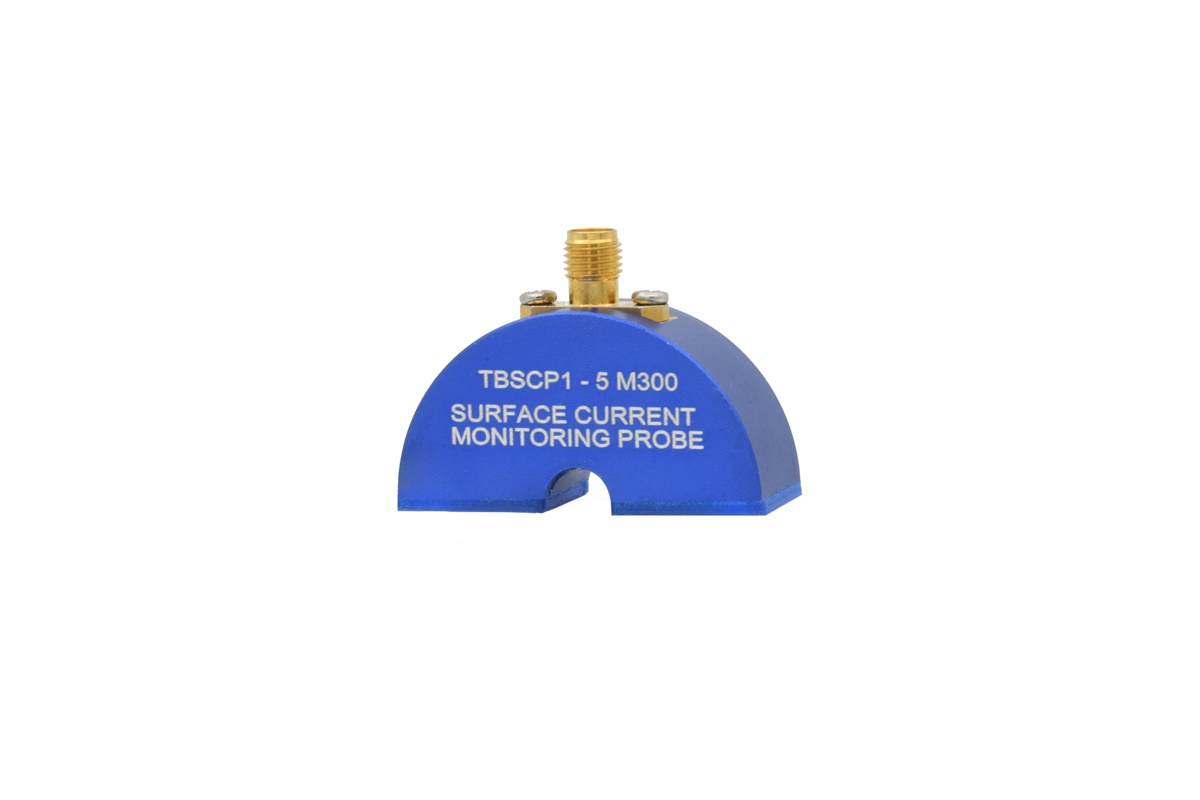

TBSCP1-5M300 Measurement Accessory by TekBox — Be the first to write a review
The TBSCP1-5M300 has a very flat response from 5 MHz to 300 MHz and is characterized over the frequency range from 30 kHz to 400 MHz. The probe is for RF current monitoring applications that need to measure RF currents flowing on surfaces such as PCB groundplanes or traces, metal planes or wires. The footprint of the RF current monitoring probe measures 40 mm x 15 mm. The transfer impedance is -7 dB Ohm with a typical 3dB bandwidth from 5 MHz to 300 MHz.

TBSCP1-5M300 Measurement Accessory by TekBox — Be the first to write a review
The TBSCP1-5M300 has a very flat response from 5 MHz to 300 MHz and is characterized over the frequency range from 30 kHz to 400 MHz. The probe is for RF current monitoring applications that need to measure RF currents flowing on surfaces such as PCB groundplanes or traces, metal planes or wires. The footprint of the RF current monitoring probe measures 40 mm x 15 mm. The transfer impedance is -7 dB Ohm with a typical 3dB bandwidth from 5 MHz to 300 MHz.

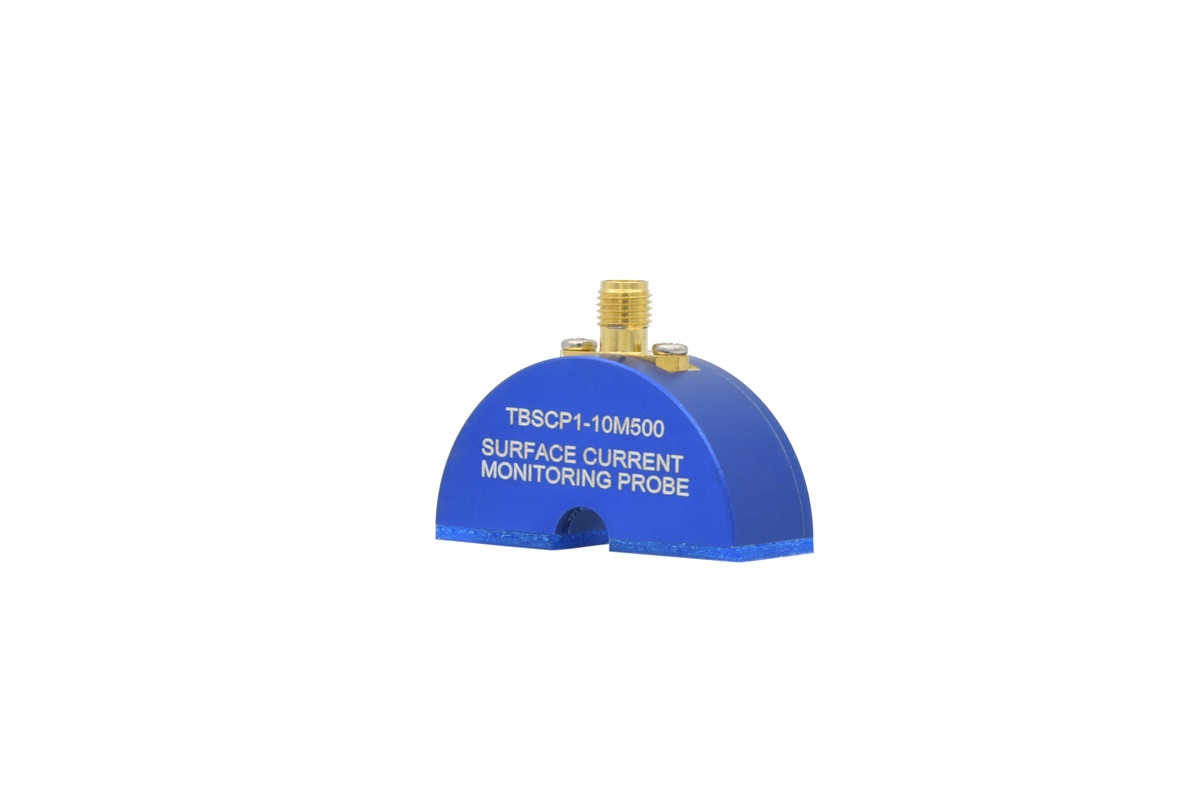

TBSCP1-10M500 Measurement Accessory by TekBox — Be the first to write a review
The TBSCP1-10M500 has a very flat response from 10 MHz to 500 MHz and is characterized over the frequency range from 30 kHz to 600 MHz. The TBSCP1-10M500 is for RF current monitoring applications that need to measure RF currents flowing on surfaces such as PCB groundplanes or traces, metal planes or wires. The footprint of the RF current monitoring probe measures 40 mm x 15 mm. The transfer impedance is -5 dB Ohm with a typical 3dB bandwidth from 10 MHz to 500 MHz.

TBSCP1-10M500 Measurement Accessory by TekBox — Be the first to write a review
The TBSCP1-10M500 has a very flat response from 10 MHz to 500 MHz and is characterized over the frequency range from 30 kHz to 600 MHz. The TBSCP1-10M500 is for RF current monitoring applications that need to measure RF currents flowing on surfaces such as PCB groundplanes or traces, metal planes or wires. The footprint of the RF current monitoring probe measures 40 mm x 15 mm. The transfer impedance is -5 dB Ohm with a typical 3dB bandwidth from 10 MHz to 500 MHz.
