Tekbox Bulk Current Injection Probes

Model	TBBCI1-200K280	TBBCI1-800K420
Frequency range	150 kHz – 230 MHz	1 MHz – 400 MHz
Coupling loss	8 dB typ.	5 dB typ.
Maximum RF input power	50 W	50 W
Aperture diameter	27 mm	27 mm
Outer dimensions	92 x 76 mm	92 x 76 mm
Application / Standard	BCI probe for IEC / ISO 61000-6-4	BCI probe for IEC / ISO 61000-6-4

Tekbox Bulk Current Injection Probes

3 of 3 Article

Sorting

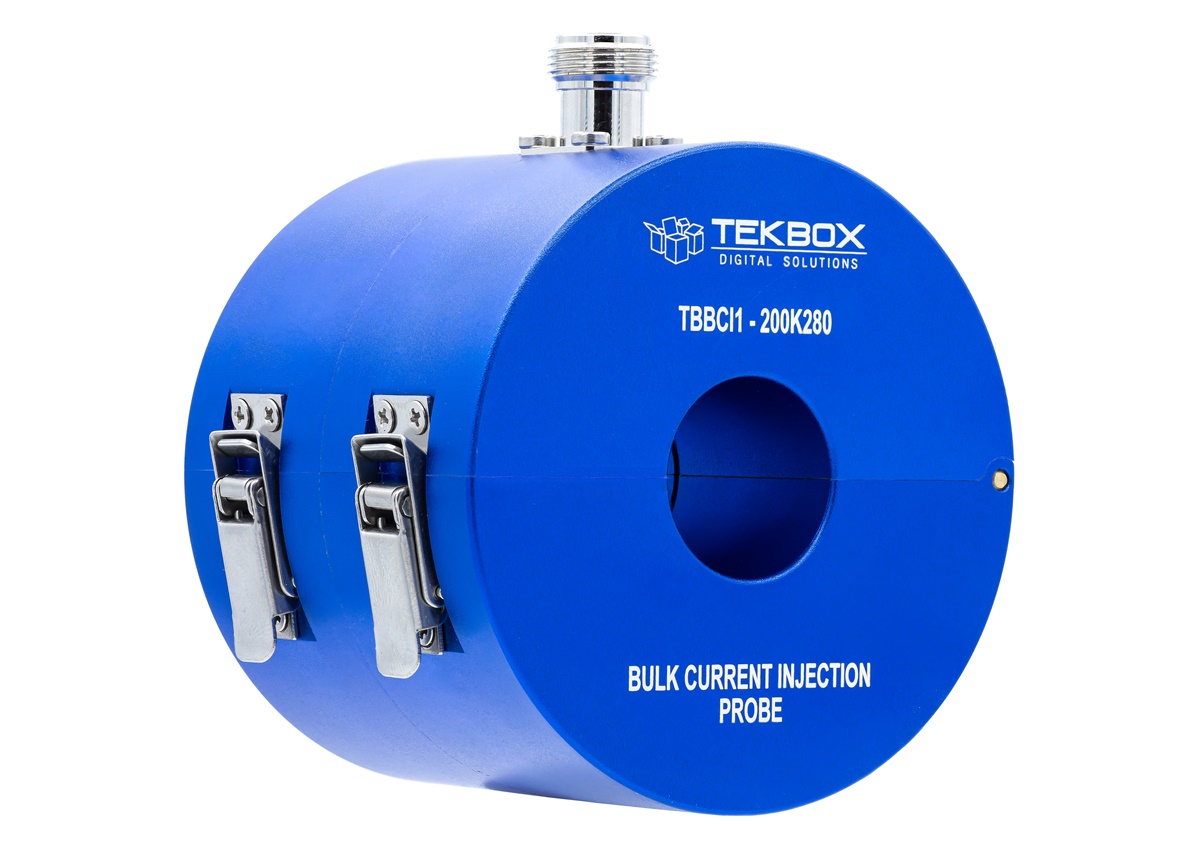

Measurement Accessory by TekBox, Side view — Be the first to write a review
RF current transformer for measuring in the range of 10 kHz to 300 MHz.

Aperture diameter: 27 mm

Outside diameter: 92 mm

Height: 76 mm

Weight: 1,200 g

Connector type: N female

Transfer impedance: 26 dB Ω typ.; 50 Ω system (100 Ω loop impedance)

Power rating: capable of injecting level 1, 2, 3 and stress level X up to 30V, 150 Ohm test set-up according to IEC/EN 61000-4-6

Max. core temperature: 80 °C

Measurement Accessory by TekBox, Front view — Be the first to write a review
RF current transformer for measuring in the range of 10 kHz to 300 MHz.

Aperture diameter: 27 mm

Outside diameter: 92 mm

Height: 76 mm

Weight: 1,200 g

Connector type: N female

Transfer impedance: 26 dB Ω typ.; 50 Ω system (100 Ω loop impedance)

Power rating: capable of injecting level 1, 2, 3 and stress level X up to 30V, 150 Ohm test set-up according to IEC/EN 61000-4-6

Max. core temperature: 80 °C

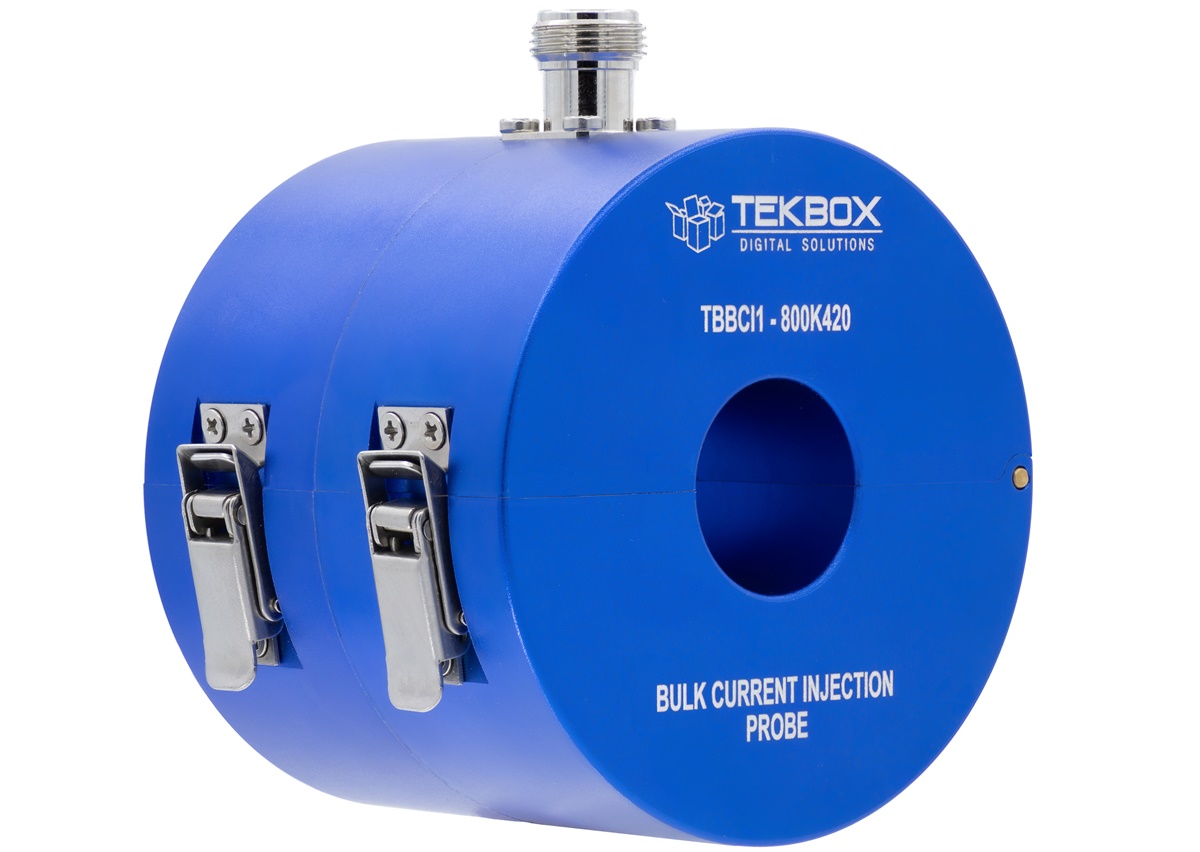

TBBCI1-800K420 Measurement Accessory by TekBox, Side view — Be the first to write a review
RF current transformer for measuring in the range of 10 kHz to 500 MHz.

Aperture diameter: 27 mm

Outside diameter: 92 mm

Height: 76 mm

Weight: 1,200 g

Connector type: N female

Transfer impedance: 29 dB Ω typ.; 50 Ω system (100 Ω loop impedance)

Power rating: capable of injecting severity levels I, II, III, IV according to ISO 11452 and customer specified level V up to 500 mA

Max. core temperature: 80 °C

TBBCI1-800K420 Measurement Accessory by TekBox, Front view — Be the first to write a review
RF current transformer for measuring in the range of 10 kHz to 500 MHz.

Aperture diameter: 27 mm

Outside diameter: 92 mm

Height: 76 mm

Weight: 1,200 g

Connector type: N female

Transfer impedance: 29 dB Ω typ.; 50 Ω system (100 Ω loop impedance)

Power rating: capable of injecting severity levels I, II, III, IV according to ISO 11452 and customer specified level V up to 500 mA

Max. core temperature: 80 °C

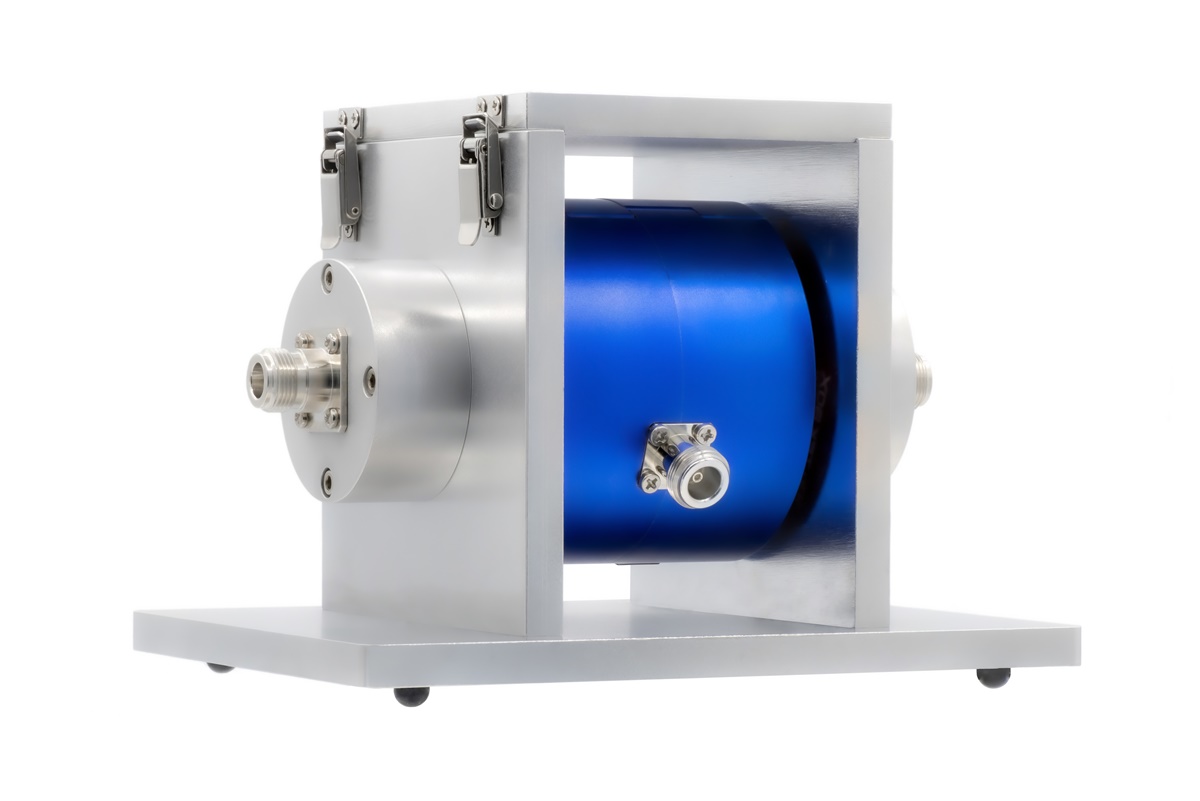

Measurement Accessory by TekBox, Side view — Be the first to write a review
The TBBCI1-CAL is a calibration fixture for the TBBCI1 series of Bulk Current Injection probes. The calibration fixture is used in combination with a Vector Network Analyzer or Spectrum Analyzer equipped with tracking generator in order to measure the transfer impedance or insertion loss of BCI probes. Every Tekbox RF current monitoring probes is shipped together with a corresponding calibration sheet containing the insertion loss and transfer impedance values vs frequency.

Measurement Accessory by TekBox, Front view — Be the first to write a review
The TBBCI1-CAL is a calibration fixture for the TBBCI1 series of Bulk Current Injection probes. The calibration fixture is used in combination with a Vector Network Analyzer or Spectrum Analyzer equipped with tracking generator in order to measure the transfer impedance or insertion loss of BCI probes. Every Tekbox RF current monitoring probes is shipped together with a corresponding calibration sheet containing the insertion loss and transfer impedance values vs frequency.
