Tekbox coaxial RF Current Monitoring Probes

Model	ТВССР1-2K70	ТВССР1-3K100	ТВССР1-400K600
Characterized frequency range	10 kHz – 100 MHz	10 Hz – 100 MHz	10 Hz – 600 MHz
Trans-impedance	0 dBΩ	+5 dBΩ	+23 dBΩ
Application	Transducer for large loop antennas (LLA)	General purpose coupling device	General purpose coupling device

Tekbox coaxial RF current monitoring Probes

3 of 3 Article

Sorting

by TekBox — Be the first to write a review
The TBCCP1-2K70 is a coaxial RF current monitoring probe designed to be used as transducer for large loop antennas or for applications that need to measure RF currents in coaxial cables. With a trans-impedance of 0 dBΩ, it is compliant with the specifications for large loop antennas (LLA) in CISPR 15 (EN 555015) and CISPR 16-1-4.

Characterized frequency range: 10 Hz to 100 MHz

Transfer impedance: 0 dBΩ when loaded with 50Ω

3 dB bandwidth: 2 kHz to 70 MHz, typ.

Dimensions: 76 mm x 102 x 69 mm

Weight: 450 g

Connector type: N female

Max. primary current (RF): 12 A

Max. core temperature: 125 °C

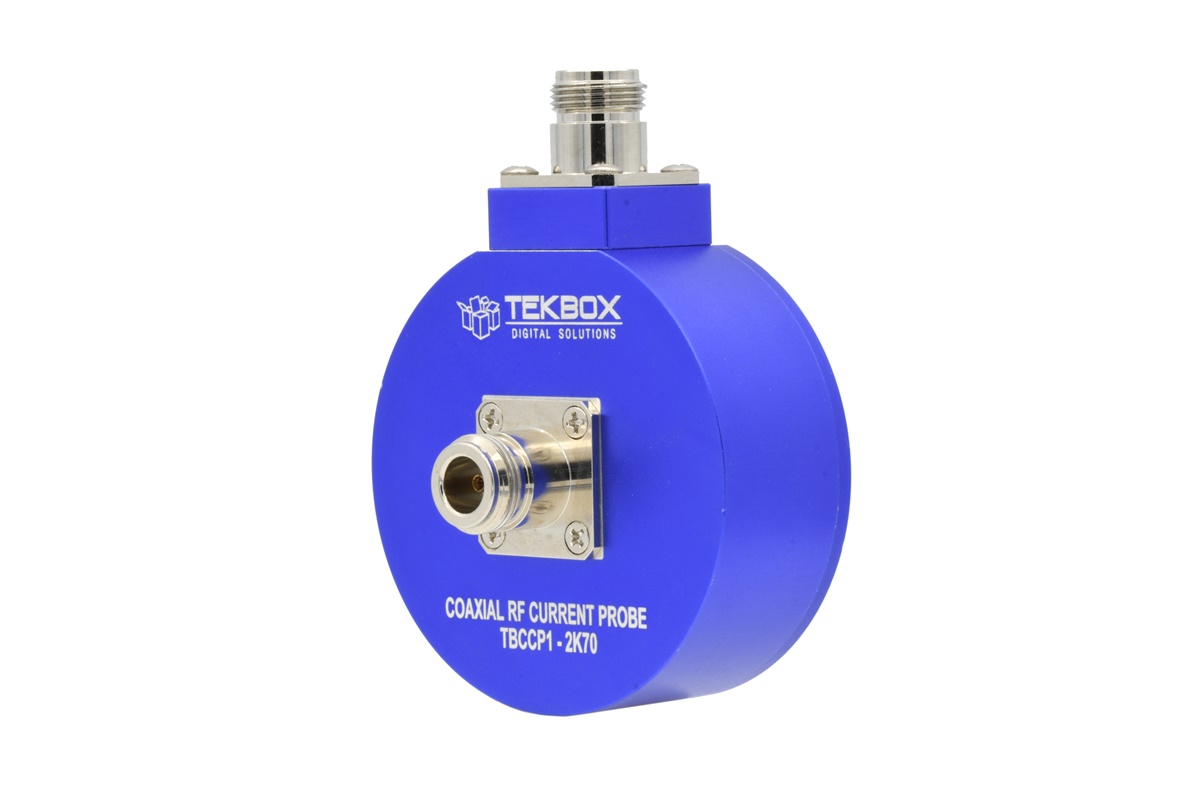

ТВССР1-2K70 Measurement Accessory by TekBox — Be the first to write a review
The TBCCP1-2K70 is a coaxial RF current monitoring probe designed to be used as transducer for large loop antennas or for applications that need to measure RF currents in coaxial cables. With a trans-impedance of 0 dBΩ, it is compliant with the specifications for large loop antennas (LLA) in CISPR 15 (EN 555015) and CISPR 16-1-4.

Characterized frequency range: 10 Hz to 100 MHz

Transfer impedance: 0 dBΩ when loaded with 50Ω

3 dB bandwidth: 2 kHz to 70 MHz, typ.

Dimensions: 76 mm x 102 x 69 mm

Weight: 450 g

Connector type: N female

Max. primary current (RF): 12 A

Max. core temperature: 125 °C

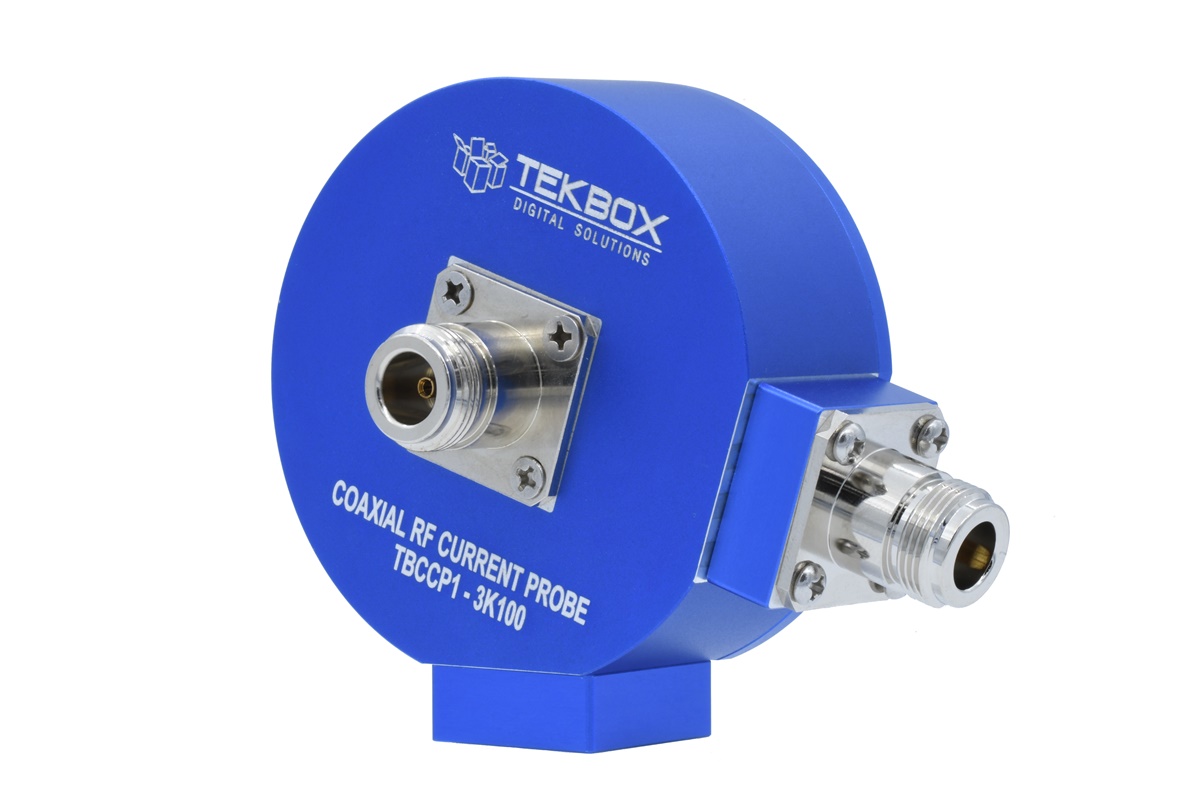

TВССР1-3K100 Measurement Accessory by TekBox — Be the first to write a review
The probe has a 3 dB bandwidth from 3 kHz to 100 MHz and a very flat response from 9 kHz to 30 MHz. The transimpedance is characterized over the frequency range from 10 Hz to 100 MHz. The TBCCP1-3K100 is primarily designed for measurement of RF currents in coaxial cables. Furthermore it can be used as transducer for passive loop antennas. The probe is equipped with N-connectors. An attachment with a ¼” thread permits connectivity to standard tripods.

Characterized frequency range: 10 Hz to 100 MHz

Transfer impedance: 5 dBΩ

3 dB bandwidth: 3 kHz to 100 MHz, typ.

Dimensions: 76 mm x 102 x 69 mm

Weight: 400 g

Connector type: N female

Max. primary current (RF): 12 A

Max. core temperature: 125 °C

Measurement Accessory by TekBox, Side view — Be the first to write a review
The probe has a 3 dB bandwidth from 3 kHz to 100 MHz and a very flat response from 9 kHz to 30 MHz. The transimpedance is characterized over the frequency range from 10 Hz to 100 MHz. The TBCCP1-3K100 is primarily designed for measurement of RF currents in coaxial cables. Furthermore it can be used as transducer for passive loop antennas. The probe is equipped with N-connectors. An attachment with a ¼” thread permits connectivity to standard tripods.

Characterized frequency range: 10 Hz to 100 MHz

Transfer impedance: 5 dBΩ

3 dB bandwidth: 3 kHz to 100 MHz, typ.

Dimensions: 76 mm x 102 x 69 mm

Weight: 400 g

Connector type: N female

Max. primary current (RF): 12 A

Max. core temperature: 125 °C

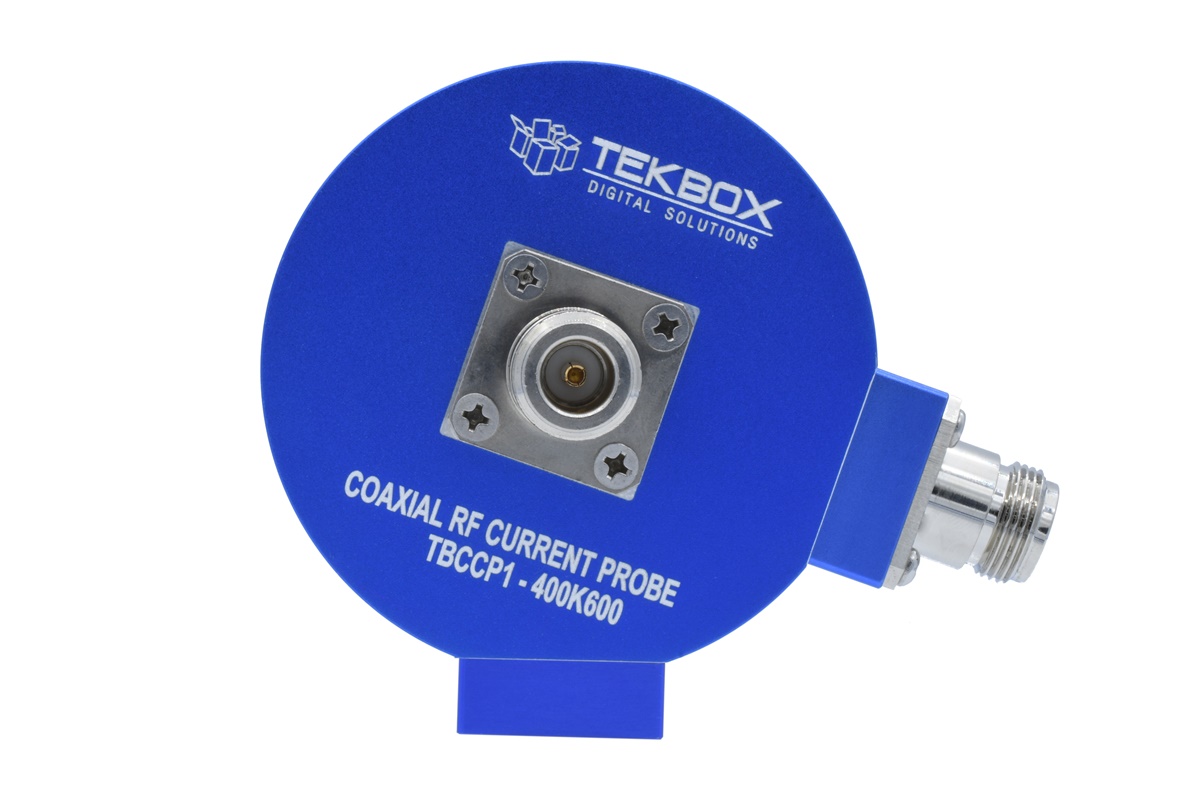

TВССР1-400K600 Measurement Accessory by TekBox — Be the first to write a review
The probe has a 3 dB bandwidth from 400 kHz to 600 MHz and a very flat response from 1 kHz to 200 MHz. The transimpedance is characterized over the frequency range from 10 Hz to 100 MHz. The TBCCP1-400K600 is primarily designed for measurement of RF currents in coaxial cables. Furthermore it can be used as transducer for passive loop antennas. The probe is equipped with N-connectors. An attachment with a ¼” thread permits connectivity to standard tripods.

Characterized frequency range: 10 Hz to 600 MHz

Transfer impedance: 23 dBΩ

3 dB bandwidth: 400 kHz to 600 MHz, typ.

Dimensions: 76 mm x 102 x 69 mm

Weight: 400 g

Connector type: N female

Max. primary current (RF): 12 A

Max. core temperature: 125 °C

Measurement Accessory by TekBox, Side view — Be the first to write a review
The probe has a 3 dB bandwidth from 400 kHz to 600 MHz and a very flat response from 1 kHz to 200 MHz. The transimpedance is characterized over the frequency range from 10 Hz to 100 MHz. The TBCCP1-400K600 is primarily designed for measurement of RF currents in coaxial cables. Furthermore it can be used as transducer for passive loop antennas. The probe is equipped with N-connectors. An attachment with a ¼” thread permits connectivity to standard tripods.

Characterized frequency range: 10 Hz to 600 MHz

Transfer impedance: 23 dBΩ

3 dB bandwidth: 400 kHz to 600 MHz, typ.

Dimensions: 76 mm x 102 x 69 mm

Weight: 400 g

Connector type: N female

Max. primary current (RF): 12 A

Max. core temperature: 125 °C
