Tekbox Standard RF Current Monitoring Probes


Model TBCP1-200 TBCP1-250 TBCP1-500 TBCP2-250 TBCP2-30K400 TBCP2-500 TBCP2-750 ТВСР3-1000 TBCP4-250 TBCP4-500 TBCP4-750
Characterized frequency range 1 kHz- 500 MHz 1 kHz- 300 MHz 1 kHz- 500 MHz 1 kHz- 400 MHz 10 Hz- 500 MHz 1 kHz- 1 GHz 1 kHz- 750 MHz 1 kHz- 1 GHz 1 kHz- 400 MHz 1 kHz- 600 MHz 1 kHz- 1 GHz
Trans-impedance 17 dBΩ 18 dBΩ 19 dBΩ 13 dBΩ 3 dBΩ 16 dBΩ 20 dBΩ 20 dBΩ 13 dBΩ 16 dBΩ 20 dBΩ
Aperture diameter 25 mm 25 mm 25 mm 32 mm 32 mm 32 mm 32 mm 17 mm 32 mm 32 mm 32 mm
Snap on / hinge no no no yes yes yes yes no no no no

Tebox High Saturation RF Current Monitoring Probes


Specification TBCP2-1M800 TBCP2-1M100 TBCP2-6M300 TBCP2-3M900 TBCP2-20M700 TBCP2-30M1000 TBCP5-150K400
Characterized frequency range 10 kHz – 1 GHz 10 kHz – 200 MHz 10 kHz – 500 MHz 10 kHz – 1 GHz 10 kHz – 800 MHz 10 kHz – 1 GHz 10 Hz – 500 MHz
3dB bandwidth 1 MHz – 800 MHz 1 MHz – 100 MHz 6 MHz – 300 MHz 3 MHz – 900 MHz 20 MHz – 700 MHz 30 MHz – 900 MHz 150 kHz – 400 MHz
Trans-impedance 0 dBΩ, typ. 3 dBΩ, typ. 10 dBΩ, typ. 10 dBΩ, typ. 20 dBΩ, typ. 22 dBΩ ± 2 dBΩ from 25 MHz – 1 GHz 11 dBΩ
Max. RF Current 10 A 40 A 20 A 3 A 15 A 10 A 2 A
Saturation DC-400Hz ≥ 400 A ≥ 400 A ≥ 400 A ≥ 100 A ≥ 100 A ≥ 50 A ≥ 200 A
Aperture diameter 32 mm 32 mm 32 mm 32 mm 32 mm 32 mm 46 mm
Snap on / hinge yes yes yes yes yes yes yes
Application High frequency; High saturation High frequency; High saturation High frequency; High saturation High frequency; High saturation High frequency; High saturation High frequency; High saturation High frequency; High saturation

Tekbox Standard RF current monitoring probes

17 of 17 Article

TekBox TBCP1-200

Be the first to write a review

RF current monitoring probe for measuring in the range of 10 kHz to 200 MHz.

  • Aperture diameter: 25 mm
  • Outside diameter: 76 mm
  • Height: 31 mm
  • Weight: 320 g
  • Connector type: N female
  • Transfer impedance: 3 to 17 dBΩ
  • Max. primary current (DC – 400 Hz): 80 A
  • Max. primary current (RF): 3 A
  • Max. core temperature: 125 °C
2 years warranty

No.: TBCP1-200
EAN: 8936120670118

Free shipping within Germany and to our neighboring EU countries! Shipping charges apply to all other countries.
In 41-60 days in stock.
325.- €
net (VAT Details)
386.75 €
incl. 19% VAT

TekBox TBCP1-250

Be the first to write a review

RF current monitoring probe for measuring in the range of 30 kHz to 250 MHz.

  • Aperture diameter: 25 mm
  • Outside diameter: 76 mm
  • Height: 31 mm
  • Weight: 320 g
  • Connector type: N female
  • Transfer impedance: 0 to 18 dBΩ
  • Max. primary current (DC – 400 Hz): 80 A
  • Max. primary current (RF): 3 A
  • Max. core temperature: 125 °C
2 years warranty

No.: TBCP1-250
EAN: 8936120670125

Free shipping within Germany and to our neighboring EU countries! Shipping charges apply to all other countries.
In stock
325.- €
net (VAT Details)
386.75 €
incl. 19% VAT

TekBox TBCP1-500

Be the first to write a review

RF current monitoring probe for measuring in the range of 30 kHz to 500 MHz.

  • Aperture diameter: 25 mm
  • Outside diameter: 76 mm
  • Height: 31 mm
  • Weight: 320 g
  • Connector type: N female
  • Transfer impedance: -6 to 20 dBΩ
  • Max. primary current (DC – 400 Hz): 80 A
  • Max. primary current (RF): 3 A
  • Max. core temperature: 125 °C
2 years warranty

No.: TBCP1-500
EAN: 8936120670248

Free shipping within Germany and to our neighboring EU countries! Shipping charges apply to all other countries.
In stock
420.- €
net (VAT Details)
499.80 €
incl. 19% VAT

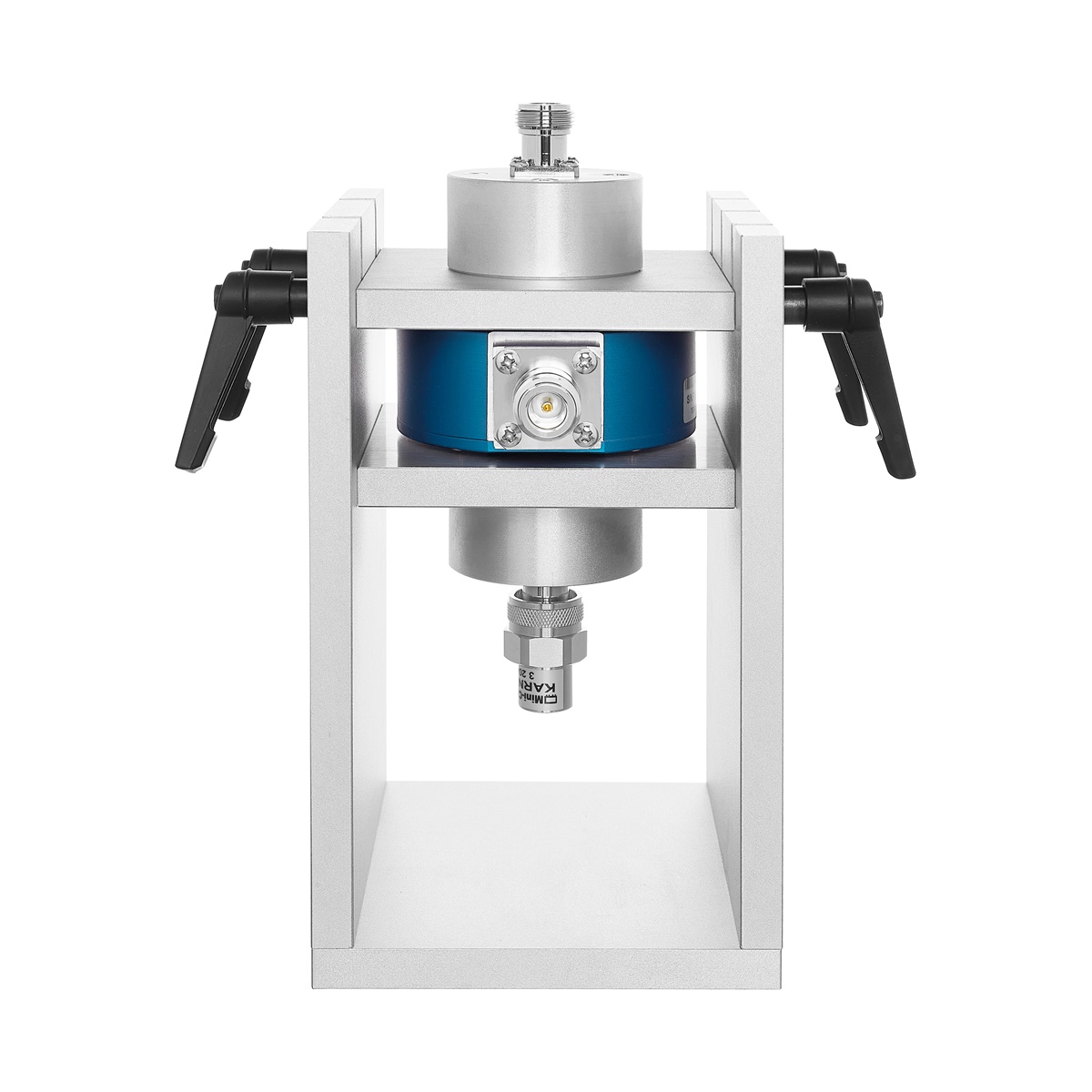

TekBox TBCP1-CAL

Be the first to write a review

The Tekbox TBCP1-CAL calibration device can be used to measure the transfer impedance of Tekbox TBCP1 RF probes in conjunction with a spectrum analyzer or a vector network analyzer. The calibration device is compatible with all TBCP1 models, e.g. the TBPCP1-20100, and is used exclusively as a calibration instrument. Each Tekbox RF transducer is supplied together with a corresponding calibration sheet, which shows the values of insertion loss and the transfer impedance as a function of the frequency.

2 years warranty

No.: TBCP1-CAL

Free shipping within Germany and to our neighboring EU countries! Shipping charges apply to all other countries.
In 11-30 days after order in stock.
545.- €
net (VAT Details)
648.55 €
incl. 19% VAT

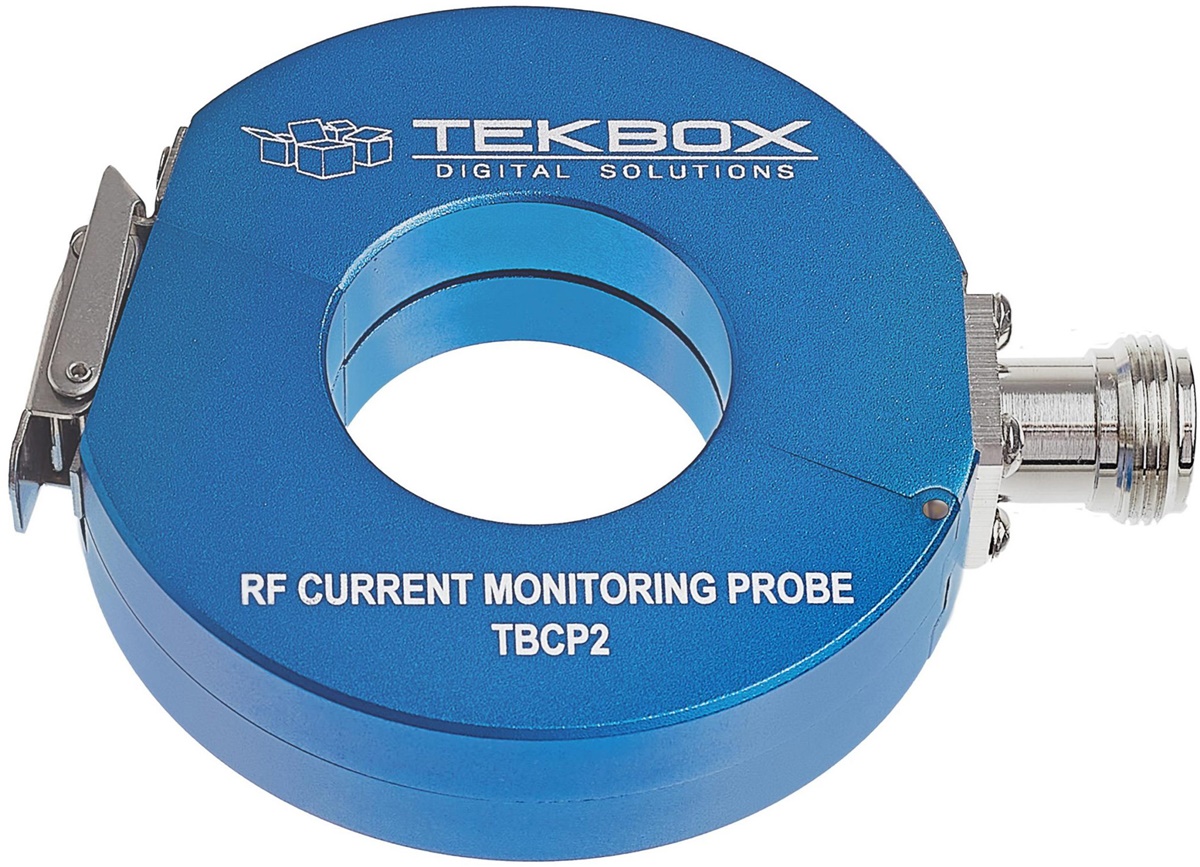

TekBox TBCP2-250

Be the first to write a review

RF current monitoring probe for measuring in the range of 30 kHz to 250 MHz.

  • Aperture diameter: 32 mm
  • Outside diameter: 73 mm
  • Height: 20 mm
  • Weight: 320 g
  • Connector type: N female
  • Transfer impedance: 0 to 14 dBΩ between 100 kHz and 250 MHz
  • Max. primary current (DC – 400 Hz): 80 A
  • Max. primary current (RF): 3 A
  • Max. core temperature: 125 °C
2 years warranty

No.: TBCP2-250
EAN: 8936120670354

Free shipping within Germany and to our neighboring EU countries! Shipping charges apply to all other countries.
In 41-60 days in stock.
675.- €
net (VAT Details)
803.25 €
incl. 19% VAT

TekBox TBCP2-500

Be the first to write a review

RF current monitoring probe for measuring in the range of 30 kHz to 600 MHz.

  • Aperture diameter: 32 mm
  • Outside diameter: 73 mm
  • Height: 20 mm
  • Weight: 320 g
  • Connector type: N female
  • Transfer impedance: 0 to 18 dBΩ between 100 kHz and 500 MHz
  • Max. primary current (DC – 400 Hz): 80 A
  • Max. primary current (RF): 3 A
  • Max. core temperature: 125 °C
2 years warranty

No.: TBCP2-500
EAN: 8936120670385

Free shipping within Germany and to our neighboring EU countries! Shipping charges apply to all other countries.
In stock
745.- €
net (VAT Details)
886.55 €
incl. 19% VAT

TekBox TBCP2-30K400

Be the first to write a review

RF current monitoring probe for measuring in the range of 10 kHz to 500 MHz.

  • Aperture diameter: 32 mm
  • Outside diameter: 73 mm
  • Height: 20 mm
  • Weight: 320 g
  • Connector type: N female
  • Transfer impedance: 0 to 20 dBΩ between 30 kHz and 400 MHz
  • Max. primary current (DC – 400 Hz): 25 A
  • Max. primary current (RF): 2 A
  • Max. core temperature: 125 °C
2 years warranty

No.: TBCP2-30K400

Free shipping within Germany and to our neighboring EU countries! Shipping charges apply to all other countries.
In 11-30 days after order in stock.
731.73 €
net (VAT Details)
870.76 €
incl. 19% VAT

TekBox TBCP2-750

Be the first to write a review

RF current monitoring probe for measuring in the range of 30 kHz to 800 MHz.

  • Aperture diameter: 32 mm
  • Outside diameter: 73 mm
  • Height: 20 mm
  • Weight: 320 g
  • Connector type: N female
  • Transfer impedance: 0 to 20 dBΩ between 100 kHz and 750 MHz
  • Max. primary current (DC – 400 Hz): 80 A
  • Max. primary current (RF): 3 A
  • Max. core temperature: 125 °C
2 years warranty

No.: TBCP2-750
EAN: 8936120670392

Free shipping within Germany and to our neighboring EU countries! Shipping charges apply to all other countries.
In 41-60 days in stock.
795.- €
net (VAT Details)
946.05 €
incl. 19% VAT

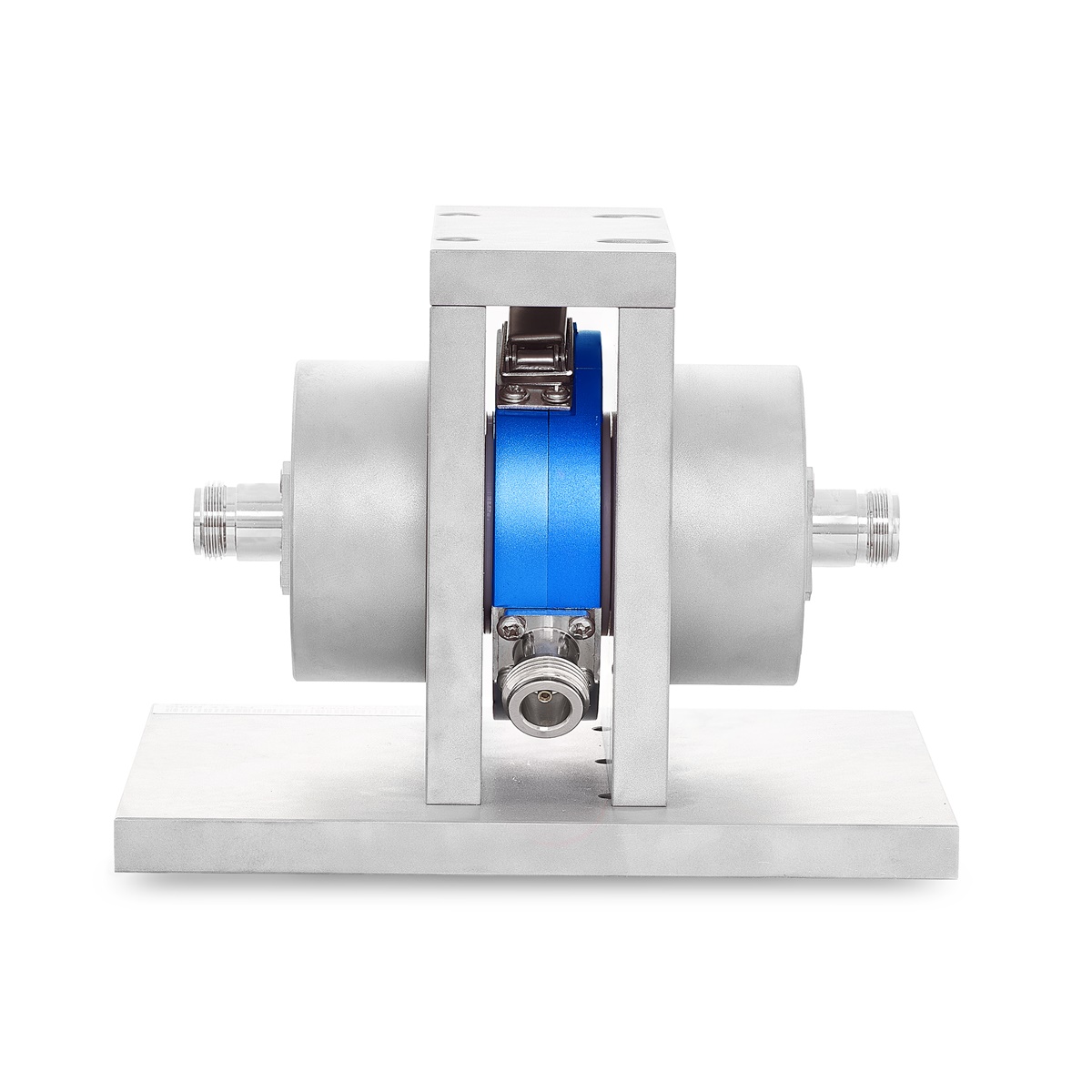

TekBox TBCP2-CAL

Be the first to write a review

The Tekbox TBCP2-CAL calibration device can be used to measure the transfer impedance of Tekbox TBCP2 RF probes in conjunction with a spectrum analyzer or a vector network analyzer. The calibration device is compatible with all TBCP2 models and is used exclusively as a calibration instrument. Each Tekbox RF transducer is supplied together with a corresponding calibration sheet, which shows the values of insertion loss and the transfer impedance as a function of the frequency.

2 years warranty

No.: TBCP2-CAL
EAN: 8936120670422

Free shipping within Germany and to our neighboring EU countries! Shipping charges apply to all other countries.
In stock
548.- €
net (VAT Details)
652.12 €
incl. 19% VAT

TekBox TBCP3-1000

Be the first to write a review

RF current monitoring probe for measuring in the range of 30 kHz to 1 GHz.

  • Aperture diameter: 17 mm
  • Outside diameter: 52 mm
  • Height: 14 mm
  • Weight: 55 g
  • Connector type: SMA female
  • Transfer impedance: 20 dBΩ
  • Max. primary current (DC – 400 Hz): 30 A
  • Max. primary current (RF): 4 A
  • Max. core temperature: 125 °C
2 years warranty

No.: TBCP3-1000
EAN: 8936120670408

Free shipping within Germany and to our neighboring EU countries! Shipping charges apply to all other countries.
In stock
635.- €
net (VAT Details)
755.65 €
incl. 19% VAT

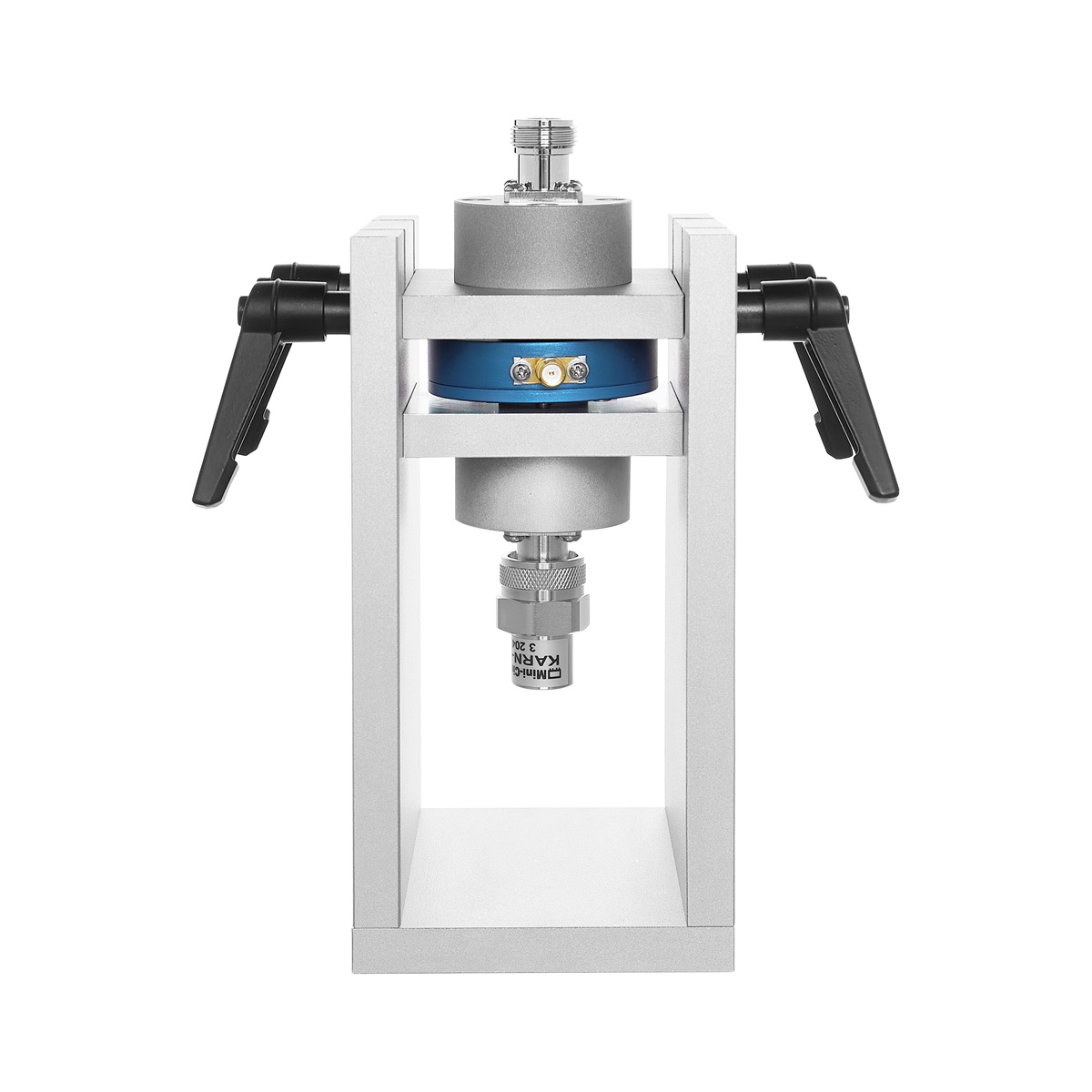

TekBox TBCP3-CAL

Be the first to write a review

The Tekbox TBCP3-CAL calibration device can be used to measure the transfer impedance of Tekbox TBCP3 RF probes in conjunction with a spectrum analyser or a vector network analyser. with a spectrum analyser or a vector network analyser. The calibration device is compatible with all TBCP3 models and is used exclusively as a calibration instrument. Each Tekbox RF transducer is supplied together with a corresponding calibration sheet, which shows the values of insertion loss and the transfer impedance as a function of the frequency.

2 years warranty

No.: TBCP3-CAL

Free shipping within Germany and to our neighboring EU countries! Shipping charges apply to all other countries.
In 11-30 days after order in stock.
548.- €
net (VAT Details)
652.12 €
incl. 19% VAT

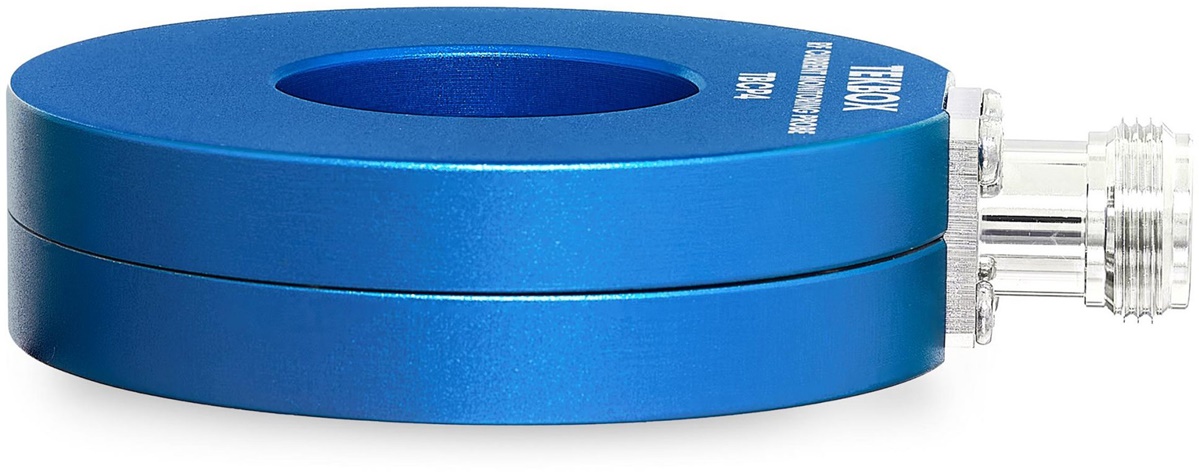

TekBox TBCP4-250

Be the first to write a review

RF current monitoring probe for measuring in the range of 10 kHz to 250 MHz.

  • Aperture diameter: 32 mm
  • Outside diameter: 73 mm
  • Height: 20 mm
  • Weight: 320 g
  • Connector type: N female
  • Transfer impedance: 14 dBΩ
  • Max. primary current (DC – 400 Hz): 80 A
  • Max. primary current (RF): 3 A
  • Max. core temperature: 125 °C
2 years warranty

No.: TBCP4-250
EAN: 8936120670347

Free shipping within Germany and to our neighboring EU countries! Shipping charges apply to all other countries.
In stock
405.- €
net (VAT Details)
481.95 €
incl. 19% VAT

TekBox TBCP4-500

Be the first to write a review

RF current monitoring probe for measuring in the range of 10 kHz to 500 MHz.

  • Aperture diameter: 32 mm
  • Outside diameter: 73 mm
  • Height: 20 mm
  • Weight: 320 g
  • Connector type: N female
  • Transfer impedance: 16 dBΩ
  • Max. primary current (DC – 400 Hz): 80 A
  • Max. primary current (RF): 3 A
  • Max. core temperature: 125 °C
2 years warranty

No.: TBCP4-500
EAN: 8936120670361

Free shipping within Germany and to our neighboring EU countries! Shipping charges apply to all other countries.
In stock
520.- €
net (VAT Details)
618.80 €
incl. 19% VAT

TekBox TBCP4-750

Be the first to write a review

RF current monitoring probe for measuring in the range of 10 kHz to 750 MHz.

  • Aperture diameter: 32 mm
  • Outside diameter: 73 mm
  • Height: 20 mm
  • Weight: 320 g
  • Connector type: N female
  • Transfer impedance: 20 dBΩ
  • Max. primary current (DC – 400 Hz): 80 A
  • Max. primary current (RF): 3 A
  • Max. core temperature: 125 °C
2 years warranty

No.: TBCP4-750
EAN: 8936120670378

Free shipping within Germany and to our neighboring EU countries! Shipping charges apply to all other countries.
In stock
635.- €
net (VAT Details)
755.65 €
incl. 19% VAT

TekBox TBCP4-CAL

Be the first to write a review

The Tekbox TBCP4-CAL calibration device can be used to measure the transfer impedance of Tekbox TBCP4 RF probes in conjunction with a spectrum analyzer or a vector network analyzer. The calibration device is compatible with all TBCP4 models and is used exclusively as a calibration instrument. Each Tekbox RF transducer is supplied together with a corresponding calibration sheet, which shows the values of insertion loss and the transfer impedance as a function of the frequency.

2 years warranty

No.: TBCP4-CAL

Free shipping within Germany and to our neighboring EU countries! Shipping charges apply to all other countries.
In 11-30 days after order in stock.
548.- €
net (VAT Details)
652.12 €
incl. 19% VAT

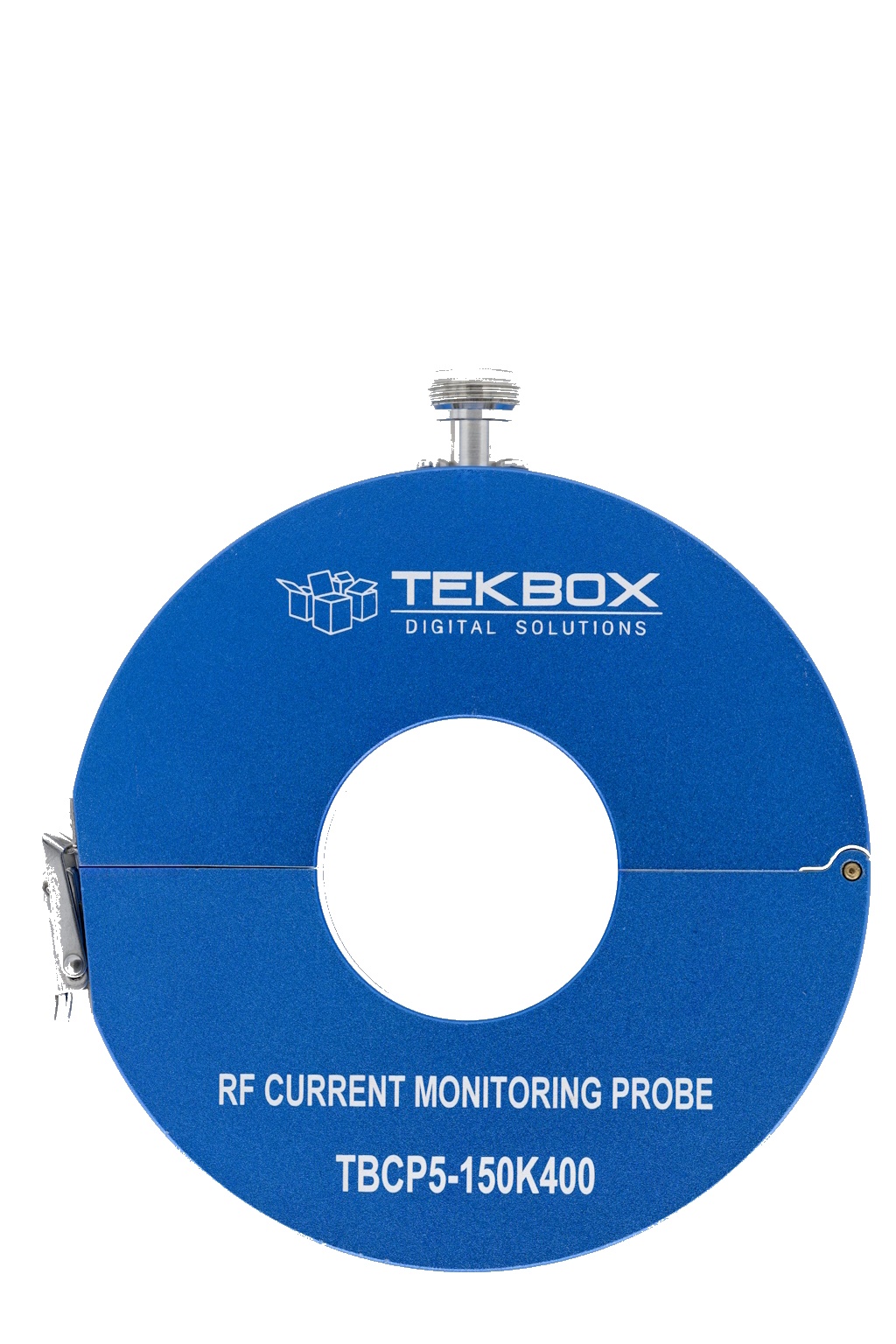

TekBox TBCP5-150K400

Be the first to write a review

RF current monitoring probe for measuring in the range of 10 Hz to 500 MHz.

  • Characterized frequency range: 10 Hz to 500 MHz, 3 dB bandwidth: 150 kHz to 400 MHz, typ.
  • Transfer impedance: 11 dBΩ (3.5 Ω) in the flat region, typ. (50 Ω load impedance)
  • Insertion impedance: <400mΩ up to 400 MHz (series measurement method)
  • Shunt capacitance: <1 pF (concentric cable with ⌀ 10 mm)
  • Output impedance: 50 Ω (resistive matching)
  • Max. bias current (DC – 400 Hz): 200 A (no influence on transimpedance)
  • Max. primary current (RF): 2 A
  • Max. core temperature: 125 °C
  • Connector type: N female
2 years warranty

No.: TBCP5-150K400

Free shipping within Germany and to our neighboring EU countries! Shipping charges apply to all other countries.
In 31-60 days after order in stock.
895.- €
net (VAT Details)
1,065.05 €
incl. 19% VAT

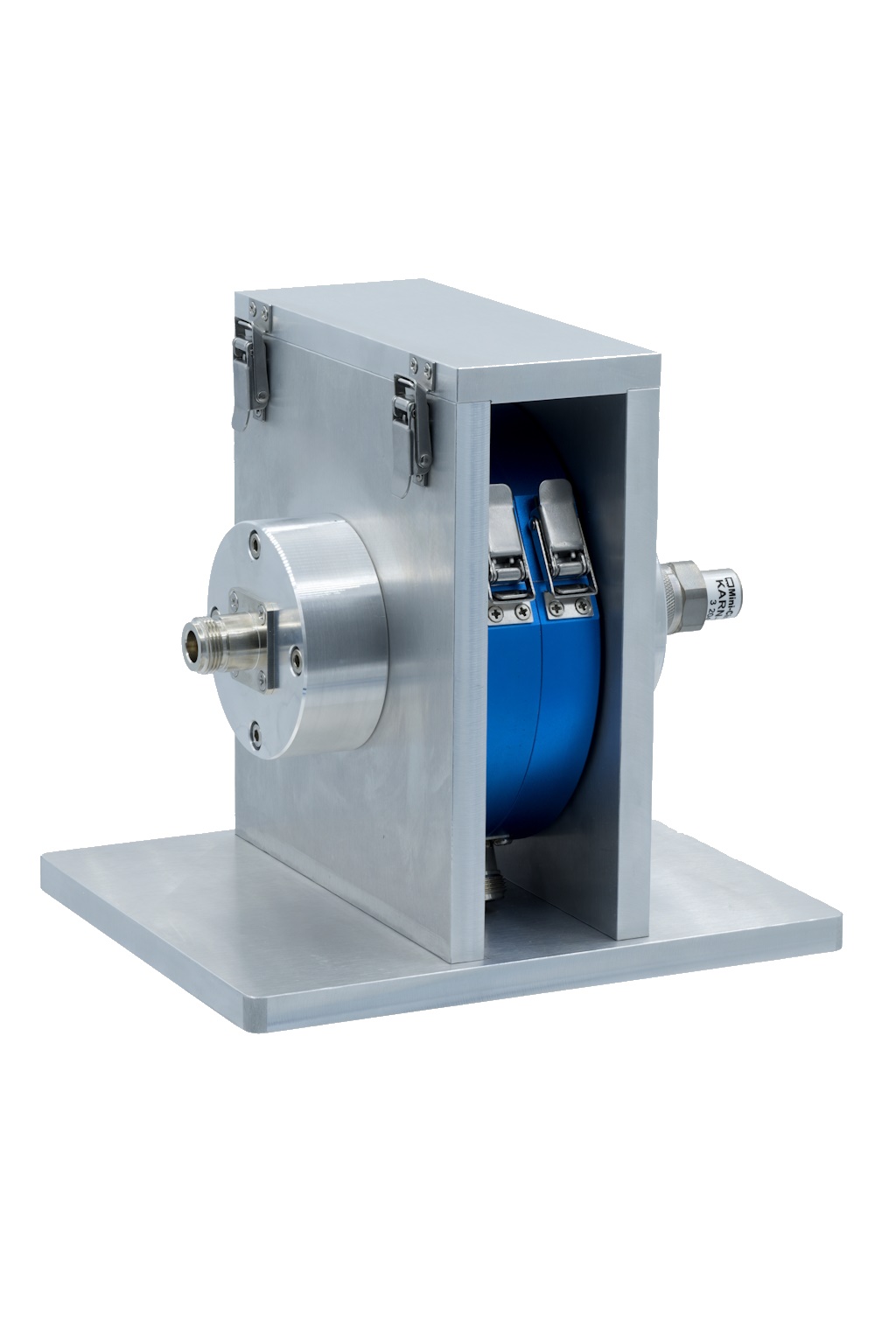

TekBox TBCP5-CAL

Be the first to write a review

The Tekbox TBCP5-CAL calibration device can be used to measure the transfer impedance of Tekbox TBCP5 RF probe in conjunction with a spectrum analyzer or a vector network analyzer. Each Tekbox RF transducer is supplied together with a corresponding calibration sheet, which shows the values of insertion loss and the transfer impedance as a function of the frequency.

2 years warranty

No.: TBCP5-CAL

Free shipping within Germany and to our neighboring EU countries! Shipping charges apply to all other countries.
In 31-60 days after order in stock.
649.- €
net (VAT Details)
772.31 €
incl. 19% VAT
