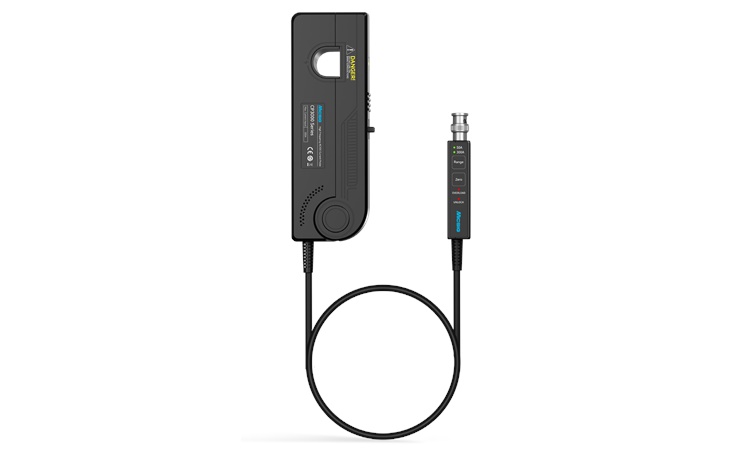

Micsig’s CP series current probes can measure both direct and alternating current and feature a compact design. They have a standard BNC interface for oscilloscopes. Two optional measurement ranges are available, as well as automatic demagnetisation and zeroing, and both visual and audible overload indicators.
| Specification | CP5005 | CP3008 | CP3005 | CP1510 |
|---|---|---|---|---|
| Bandwidth | 5 MHz | 8 MHz | 5 MHz | 10 MHz |
| Rise time | ≤ 70 ns | ≤ 53 ns | ≤ 70 ns | ≤ 46 ns |
| Max. current input | 500 Arms, 750 Apeak | 300 Arms, 500 Apeak | 300 Arms, 500 Apeak | 150 Arms, 300 Apeak |
| Range | 75 Arms (75 A) 500 Arms (500 A) | 50 Arms (50 A) 300 Arms (300 A) | 50 Arms (50 A) 300 Arms (300 A) | 30 Arms (30 A) 150 Arms (150 A) |
| Accuracy (Max continuous current @ DC and 45-66Hz) | ±1% ±10 mA (75 A) ±1% ±100 mA (500 A) | ±1% ±10 mA (50 A) ±1% ±100 mA (300 A) | ±1% ±10 mA (50 A) ±1% ±100 mA (300 A) | ±1% ±10 mA (30 A) ±1% ±100 mA (150 A) |
| Lowest measurable current | 10 mA (75 A) 100 mA (500 A) | 10 mA (50 A) 100 mA (300 A) | 10 mA (50 A) 100 mA (300 A) | 10 mA (30 A) 100 mA (150 A) |
| Noise | <2.2 mArms (75 A) <20 mArms (500 A) | <1.5 mArms (50 A) <12 mArms (300 A) | <1.5 mArms (50 A) <12 mArms (300 A) | <1.5 mArms (30 A) <10 mArms (150 A) |
| Output sensivity | 1 V / 10 A (75 A, 10×) 1 V / 100 A (500 A, 100×) | 1 V / 10 A (50 A, 10×) 1 V / 100 A (300 A, 100×) | 1 V / 10 A (50 A, 10×) 1 V / 100 A (300 A, 100×) | 1 V / 10 A (30 A, 10×) 1 V / 100 A (150 A, 100×) |
| Power supply | DC 12 V | DC 12 V | DC 12 V | DC 12 V |
| Max. conductor diameter | 20 mm | 20 mm | 20 mm | 20 mm |
| Cable length | 2 m | 2 m | 2 m | 2 m |
| Interface | Standard BNC interface | Standard BNC interface | Standard BNC interface | Standard BNC interface |
