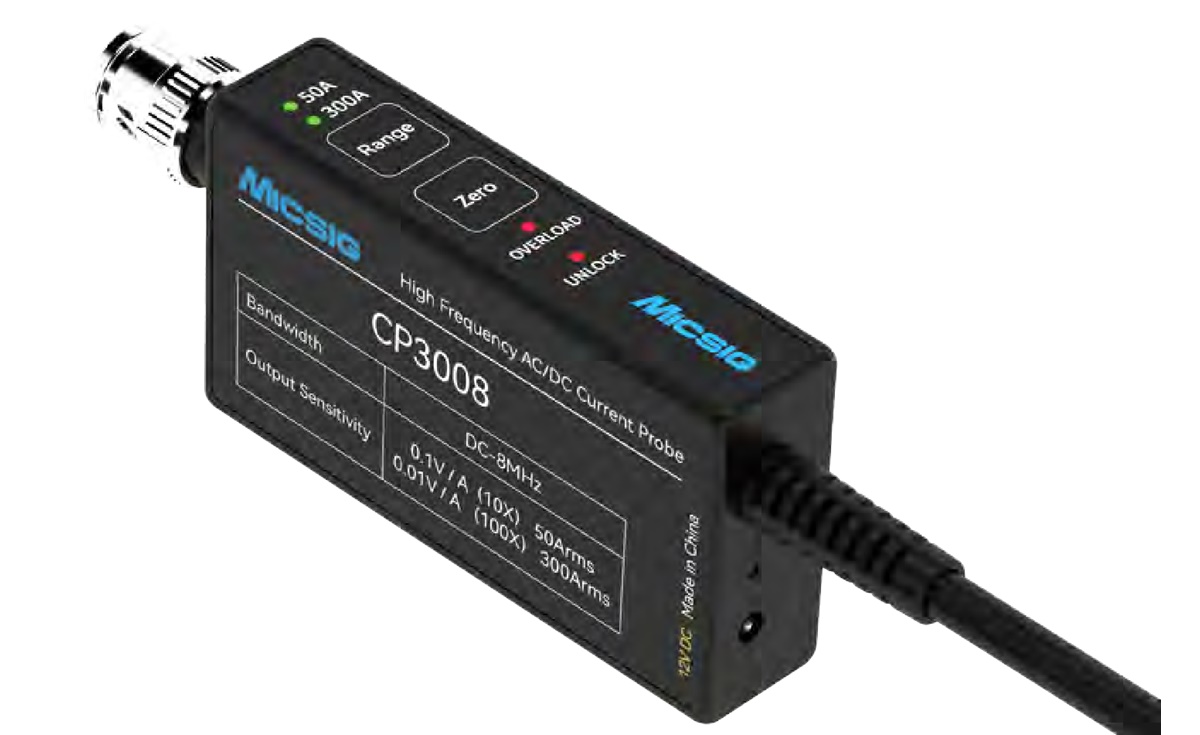

The current probes in the CP series from Micsig can measure both AC and DC current and have a compact design. The current probes have a standard BNC interface for oscilloscopes. They feature two optional measuring ranges, automatic degaussing and zeroing, as well as a visual and audible overload indicators.
| Model | CP2100A | CP2100B | CP3005 | CP3008 | CP1510 |
|---|---|---|---|---|---|
| Bandwidth | DC-800 kHz | DC-2.5 MHz | DC-5 MHz | DC-8 MHz | DC-10 MHz |
| Rise Time | <= 583 ns | <= 175 ns | ≤ 70 ns | <= 43.75 ns | ≤ 46 ns |
| Ranges | 10 A/100 A | 10 A/100 A | 50 A / 300 A | 50 A / 300 A | 30 A / 150 A |
| Output Sensitivity | 0.1 V/A (10 A) 0.01 V/A (100 A) | 0.1 V/A (10 A) 0.01 V/A (100 A) | 0.1 V/A (10 A) 0.01 V/A (100 A) | 1 V / 10 A （50 A，10X ) 1 V / 100 A （300 A，100X） | 0,1 V/A (30 A) 0,01 V/A (150 A) |
| DC Accuracy | 3 %+-50 mA (10 A) 4 %+-50 mA (100 A, 500 mA-40 Apk) 15 % (100 A, 40 Apk-100 Apk) | 3 %+-50 mA (10 A) 4 %+-50 mA (100 A, 500 mA-40 Apk) 15% (100 A, 40 Apk-100 Apk) | ±1% ±10 mA （50 A) ±1% ±100 mA （300 A） | ±1% ±10 mA （50 A) ±1% ±100 mA （300 A） | ±1% ±10 mA （30 A) ±1% ±100 mA （150 A） |
| Signal Delay | <150 ns (10 A) <200 ns (100 A) | <150 ns (10 A) <200 ns (100 A) | 40 ns | 40 ns | 40 ns |
| Max. Voltage | CAT II 600 V / CAT III 300 V | CAT II 600 V / CAT III 300 V | CAT II 600 V / CAT III 300 V | CAT II 600 V / CAT III 300 V | CAT II 600 V / CAT III 300 V |
| Power supply | DC 5 V | DC 5 V | DC 12 V | DC 12 V | DC 12 V |
