Testec TT-SI-7005

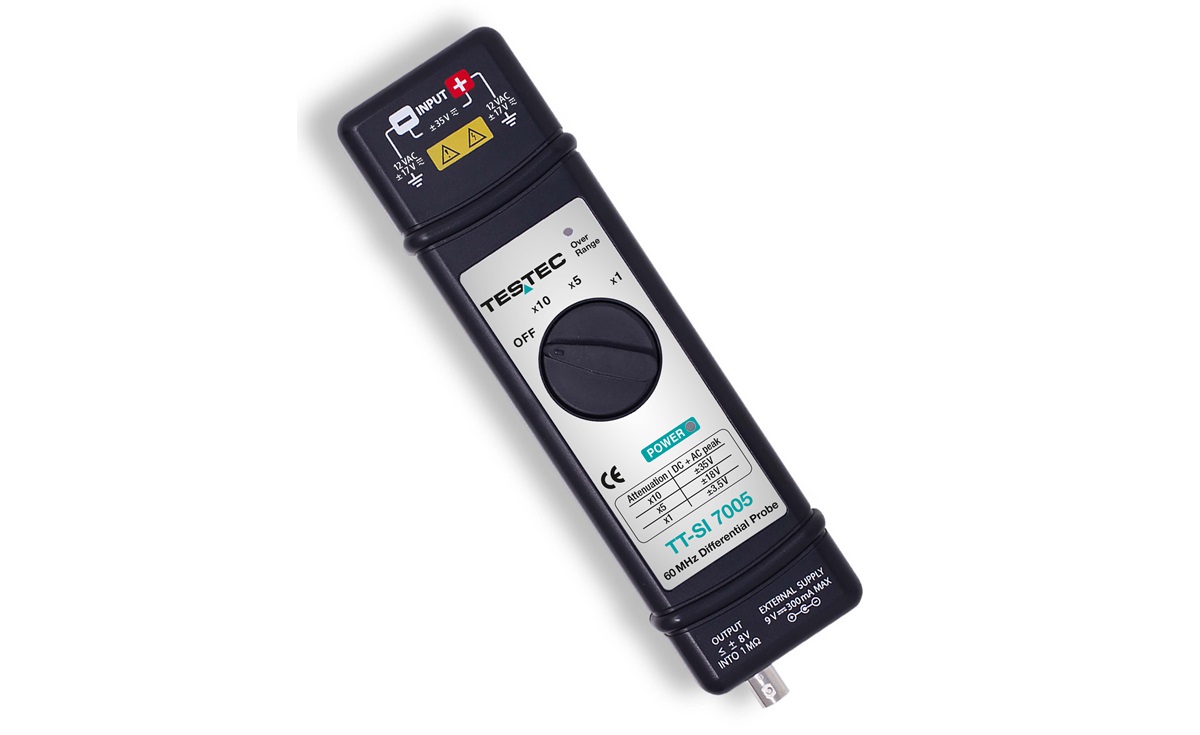

Picture: Testec TT-SI-7005
Be the first to write a review

Active differential probe, switchable

Attenuation 1:1 5:1 10:1
Bandwith 15 MHz 50 MHz 60 MHz
Rise Time 23 ns 7 ns 5.8 ns
Max. Test Input 3.5 V 18 V 35 V

Input Impedance (diff.) 1 MΩ 2.5 pF
Input Impedance 0.5 MΩ 6 pF
Max. Input CAT III 35 V
Cable Length (BNC/Input) 1 m / 0.55 m

  • Only connect to a grounded (earthed) oscilloscope!
1 year warranty

No.: Testec TT-SI-7005

with FREE shipping within the EU!
Shipping costs outside EU
in Stock
€ 362.88 net (VAT Details)
€ 431.83 incl. 19% VAT

The TT-SI 7005 differential probe allows safe, accurate measurement between two voltage points where neither point is referenced to ground. The probe is designed for high sensitivity measurements up to 60 MHz bandwidth. Compatible with oscilloscopes from all major manufacturers, the probe is exclusively powered by the included 9 V power adapter.

Features

  • Meets IEC/EN 61010-31:2015 safety standard
  • Selectable attenuation settings of x1, x5 and x10
  • 60 MHz bandwidth @ x10 attenuation setting
  • 50 MHz bandwidth @ x5 attenuation setting
  • 15 MHz bandwidth @ x1 attenuation setting
  • Up to ±35 V (DC + AC peak) common mode
  • High accuracy (±2%)
  • Power indicator LED
  • Over range indicator LED

Downloads

Datasheet

Adobe PDF

TT-SI 7000 Data sheet

Language: English
File Size: 168.14 KiB
Release Date: 05.02.2020
