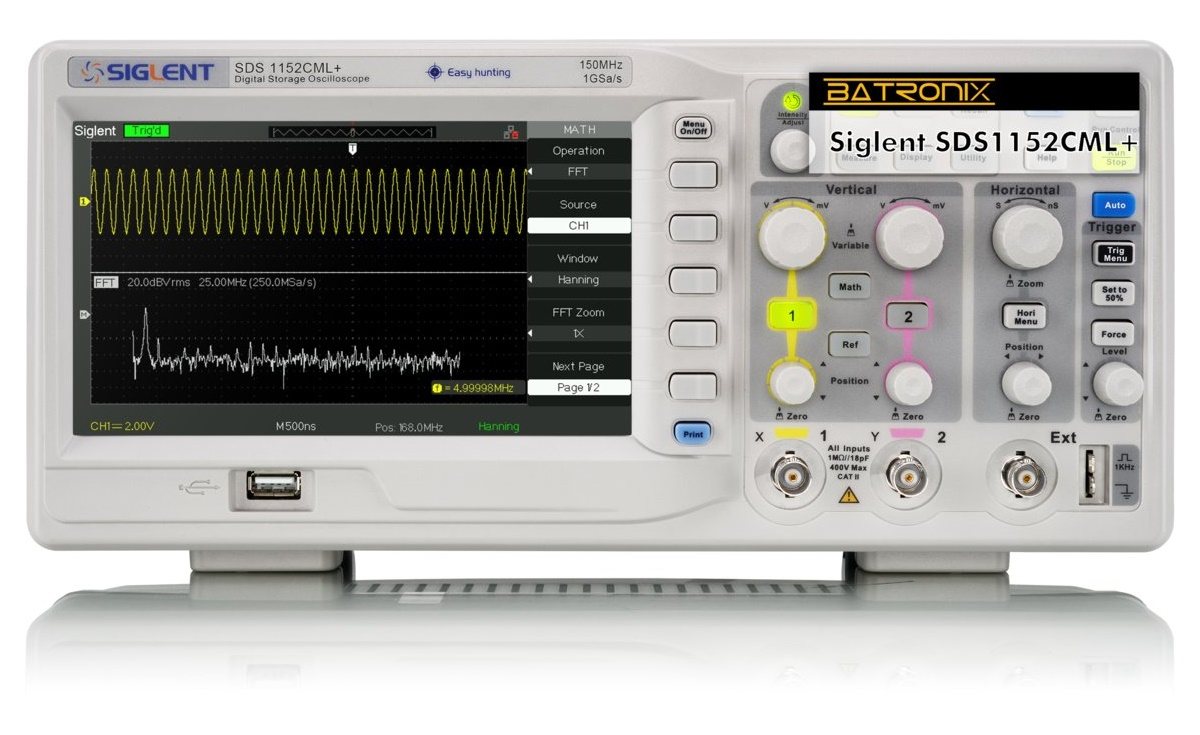

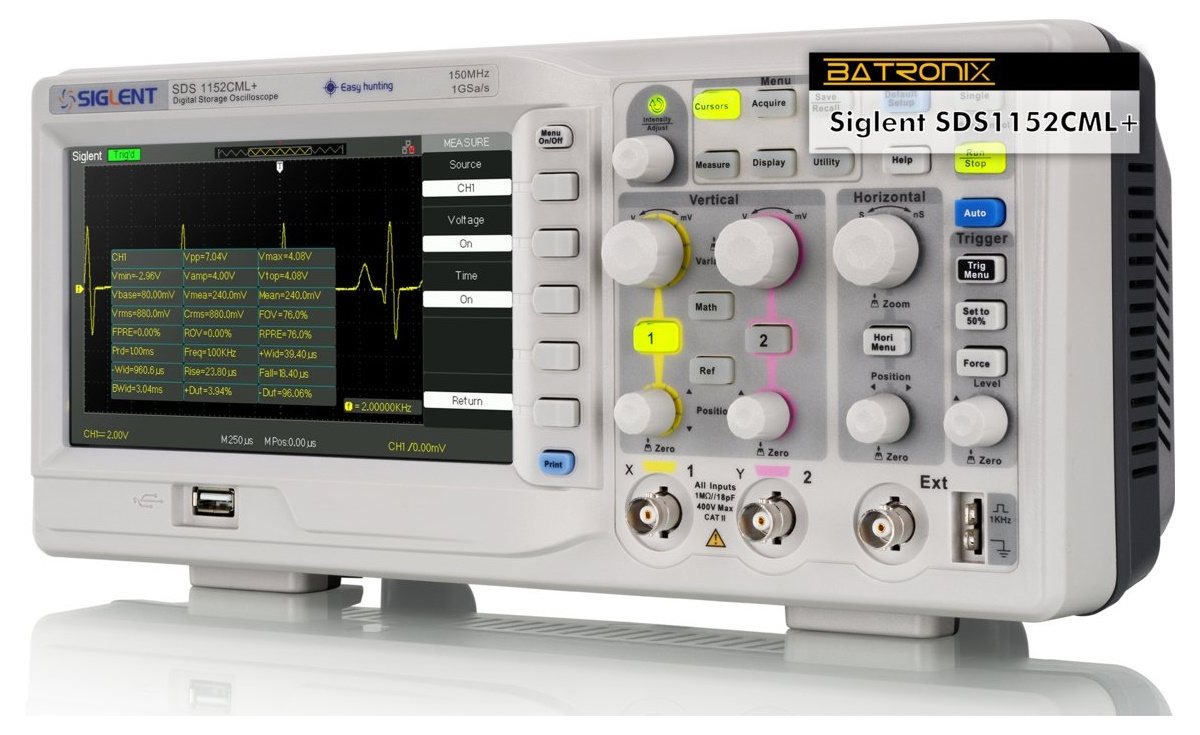

The Siglent SDS1152CML+ is a high quality dual channel digital oscilloscope with 150 MHz bandwidth, 1 GSa/s sampling rate and 2 Mpts memory depth.
The Siglent oscilloscopes have a very well thought-out and simple operation, which at the same time offers extensive comfort functions for all measurement tasks. The menu navigation is intuitive and multilingual (including German).
The large 7" (17.78 cm) TFT colour screens are very easy to read, and the 18 horizontal divisions ensure that a maximum range of signal display is always available. Signal waveforms and FFT display can be shown simultaneously on the screen.
| Models | SDS1102CML+ | SDS1152CML+ |
|---|---|---|
| Bandwidth | 100 MHz | 150 MHz |
| Sampling Rate (max.) | 1 GSa/s | 1 GSa/s |
| Memory Depth | 2 Mpts | 2 Mpts |
| Channels | 2 | 2 |
Special Features
Plus Version
The + version of the Siglent SDS1000CML+ series features some major improvements towards the previous non + version, as there are:
- a higher display resolution (800×480 instead of 480×234)
- a front panel redesign
- a LAN interface
- a memory repartition (more waveform recording memory, less memory for internal saved waveforms)
Cursor Measurements
Cursors report absolute and relative values in the Time and Volt axes of the main display. They may be manually or automatically adjusted to measure features of interest or set to track automatic measurements such as peak or RMS voltages, time periods and more.
Automatic Measurements
The Siglent SDS1000 oscilloscopes offer 32 different automatical time and voltage measurements for easy signal analysis.
Alternating Trigger
It is possible to trigger both channes independently to display signals with different frequencies.
Slope Trigger
Triggers on the signals rise or fall time using user defined parameters.
Digital Filter
Unique digital filters like High pass, Low pass, Band pass or Band Stop filters may improve the signal quality.
Pass / Fail Test
The Pass/Fail function monitors the changes of signals by comparing whether the input signal is within the pre-defined mask. The testing results not only can be displayed on screen or output by isolated pass/fail port, but also can be alarmed according to turn on system sound.
Fast Fourier Transformation
The FFT function provides spectrum analysis function for users. Supported FFT windows: Rectangle, Hanning, Hamming, Blackman.
USB Stick Support
The device supports an easy-to-use file system. It allows for both USB flash drive and local file storage.
Waveform Recorder
The Waveform Recorder can record input waveforms from CH1 and CH2 with a maximum record length of 2500 frames. This record behavior can also be activated by the pass/fail test output, which makes this function especially useful to capture abnormal signals in long term without keeping an eye watching it.| General Data | Siglent SDS1152CML+ |
|---|---|
| Display | 7" (17.78 cm) TFT true color LCD |
| Resolution | 800 × 480 Pixel |
| Size | 323 × 157 × 135 mm (12.7" × 6.1" × 5.3") |
| Weight | 2500 g (5.51 lbs) |
| Oscilloscope Details | Siglent SDS1152CML+ |
|---|---|
| Channels | 2 |
| Real-time sample rate | 1 GSa/s real time |
| Bandwidth | 150 MHz |
| Sampling mode | Normal, average, peak detect |
| Mathematics | A+B, A-B, A×B, A/B, FFT (Fast Fourier Transform) |
| FFT windows | Rectangle, Hanning, Hamming, Blackman |
| Signal | Siglent SDS1152CML+ |
|---|---|
| Max. Input voltage | 400 Vrms CAT I |
| Real-time sample rate | up to 1 GSa/s real time |
| Time base | 5 ns/Div. to 50 s/Div. (Steps 1 - 2.5 - 5) |
| Memory | 2 Mpts (1 channel) 1 Mpts (2 channels) |
| Vertical | Siglent SDS1152CML+ |
|---|---|
| Analog digital converter (A/D) | 8 bit |
| Sensitivity range (V/div) | 2 mV/Div to 10 V/Div. |
| Displacement range | ±10 Div. (2 mV - 10 V) |
| Trigger | Siglent SDS1152CML+ |
|---|---|
| Trigger | Channel 1, Channel 2, Ext, Ext / 5, AC Line |
| Signal system and line/field frequency (Video triggering mode) | Support the NTSC, PAL and SECAM broadcasting systems of any field or line frequency. |
| Measurement | Siglent SDS1152CML+ |
|---|---|
| Cursor measurement | Manual, Track and Auto Measure modes |
| Auto measurement | Vpp, Vmax, Vmin, Vamp, Vtop, Vbase, Vavg, Mean,Crms, Vrms, ROVShoot, FOVShoot, RPREShoot, FPREShoot, Rise time, Fall time, Freq, Period,+ Wid,－Wid, ＋Dut, －Dut, BWid, Phase, FRR, FRF, FFR, FFF, LRR, LRF, LFR, LFF |
