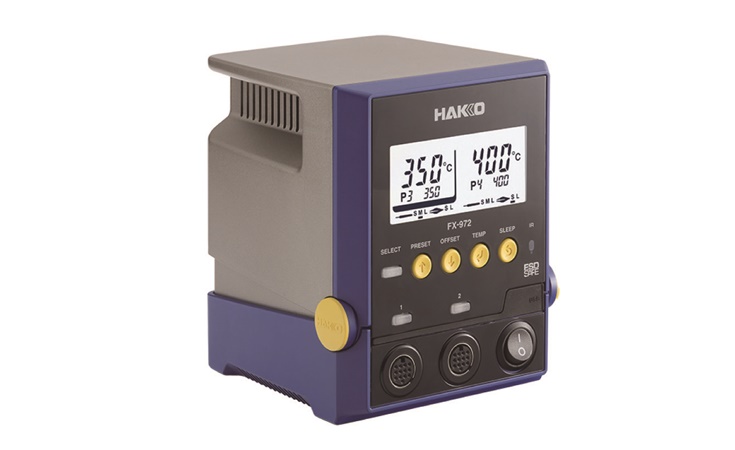

HAKKO FX-972 control station

FX-972 control station Soldering Station by HAKKO
3 Reviews

HAKKO FX-972 2 channel complete station (2x 200 W) for general soldering work.

Attention: cartridges/tips and tools are not included

We have no authorization for the distribution of the HAKKO Professional Line in Switzerland

1 year warranty

No.: FX-972-311
EAN: 4962615060724

Free shipping within Germany and to our neighboring EU countries! Shipping charges apply to all other countries.
In stock
497.50 € net (VAT Details)
592.03 € incl. 19% VAT

The new HAKKO FX-972 2-port soldering station is a 2x200W soldering station that offers the option of using multiple handpieces for different operator requirements. The FX-972 supports 8 different tools, including standard, micro, rework tweezers, micro tweezers and high-performance soldering irons as well as nitrogen handpieces. Over 60 soldering tips are also available. The FX-972 has a large LCD screen and a new intuitive user interface, wireless IR temperature compensation and works with the new HAKKO CONTROL SOFTWARE V4 or higher.





Combinations


Iron Soldering tip series
FX-9701 T39
FX-9702 (N2) T39 + nozzle unit
FX-9703 T50
FX-9704 (N2) T50 + nozzle unit
FX-9705 rework tweezers T51
FX-9706 micro tweezers T52
FX-9707 T53
FX-9708 (N2) T53 + nozzle unit

Specification


Power 230 V AC 50/60 Hz
Power consumption 2 x 200 W
Output XXX W (24 V), depending on handpiece used
DimensionsAbmessungen (W)×(H)×(D) 126 × 151 × 149 mm (in tilted position)
126 x 115 x 139 mm (not tilted position)
Gewicht (Kg) ohne Kabel 2.8 kg
Temperature range 50 to 500 °C
Temperature stability At idle temperature ±5 °C

HAKKO T39 Soldering tips for irons FX-9701, FX-9702

20 of 20 Article

T39-B02 Conical 0.2 mm

Be the first to write a review

HAKKO active soldering tip T39-B02

For use with the HAKKO FX 972 and FX 971 soldering station in conjunction with the HAKKO FX 9701 soldering iron and HAKKO FX 9702 N2 soldering iron. Suitable for nitrogen (N2 nozzle not included), compatible nozzles: B 5295 / nozzle group F

Soldering tip
Form
Conical
Tip size
0.2 mm

No.: T39-B02
EAN: 4962615058813

Plus Shipping Costs
In stock
16.- €
net (VAT Details)
19.04 €
incl. 19% VAT

T39-B05 Conical 0.5 mm

Be the first to write a review

HAKKO active soldering tip T39-B05

For use with the HAKKO FX 972 and FX 971 soldering station in conjunction with the HAKKO FX 9701 soldering iron and HAKKO FX 9702 N2 soldering iron. Suitable for nitrogen (N2 nozzle not included), compatible nozzles: B 5296 / nozzle group G

Soldering tip
Form
Conical
Tip size
0.5 mm

No.: T39-B05
EAN: 4962615058820

Plus Shipping Costs
In 11-30 days after order in stock.
18.- €
net (VAT Details)
21.42 €
incl. 19% VAT

T39-B07 Conical 0.7 mm

Be the first to write a review

HAKKO active soldering tip T39-B07

For use with the HAKKO FX 972 and FX 971 soldering station in conjunction with the HAKKO FX 9701 soldering iron and HAKKO FX 9702 N2 soldering iron. Suitable for nitrogen (N2 nozzle not included), compatible nozzles: B 5292 / nozzle group C

Soldering tip
Form
Conical
Tip size
0.7 mm

No.: T39-B07
EAN: 4962615058837

Plus Shipping Costs
In stock
16.- €
net (VAT Details)
19.04 €
incl. 19% VAT

T39-BC1020 Bevel 1x2 mm

Be the first to write a review

HAKKO active soldering tip T39-B1020

For use with the HAKKO FX 972 and FX 971 soldering station in conjunction with the HAKKO FX 9701 soldering iron and HAKKO FX 9702 N2 soldering iron. Suitable for nitrogen (N2 nozzle not included), compatible nozzles: B 5298 / nozzle group I

Soldering tip
Form
Bevel
Tip size
2 mm

No.: T39-BC1020
EAN: 4962615058844

Plus Shipping Costs
In 11-30 days after order in stock.
17.- €
net (VAT Details)
20.23 €
incl. 19% VAT

T39-BC1530 Bevel 1,5x3 mm

Be the first to write a review

HAKKO active soldering tip T39-B1530

For use with the HAKKO FX 972 and FX 971 soldering station in conjunction with the HAKKO FX 9701 soldering iron and HAKKO FX 9702 N2 soldering iron. Suitable for nitrogen (N2 nozzle not included), compatible nozzles: B 5298 / nozzle group I

Soldering tip
Form
Bevel
Tip size
3 mm

No.: T39-BC1530
EAN: 4962615058851

Plus Shipping Costs
In 11-30 days after order in stock.
18.- €
net (VAT Details)
21.42 €
incl. 19% VAT

T39-BC2040 Bevel 2x4 mm

Be the first to write a review

HAKKO active soldering tip T39-BC2040

For use with the HAKKO FX 972 and FX 971 soldering station in conjunction with the HAKKO FX 9701 soldering iron and HAKKO FX 9702 N2 soldering iron. Suitable for nitrogen (N2 nozzle not included), compatible nozzles: B 5298 / nozzle group I

Soldering tip
Form
Bevel
Tip size
4 mm

No.: T39-BC2040
EAN: 4962615058868

Plus Shipping Costs
In 11-30 days after order in stock.
18.- €
net (VAT Details)
21.42 €
incl. 19% VAT

T39-BC2535 Bevel 2.5x3.5 mm

Be the first to write a review

HAKKO active soldering tip T39-BC2535

For use with the HAKKO FX 972 and FX 971 soldering station in conjunction with the HAKKO FX 9701 soldering iron and HAKKO FX 9702 N2 soldering iron. Suitable for nitrogen (N2 nozzle not included), compatible nozzles: B 5297 / nozzle group H

Soldering tip
Form
Bevel
Tip size
3.5 mm

No.: T39-BC2535
EAN: 4962615058875

Plus Shipping Costs
In 11-30 days after order in stock.
19.- €
net (VAT Details)
22.61 €
incl. 19% VAT

T39-BCR12 Bevel, V-groove 1.2 mm

Be the first to write a review

HAKKO active soldering tip T39-BCR12

For use with the HAKKO FX 972 and FX 971 soldering station in conjunction with the HAKKO FX 9701 soldering iron and HAKKO FX 9702 N2 soldering iron. Suitable for nitrogen (N2 nozzle not included), compatible nozzles: B 5298 / nozzle group I

Soldering tip
Form
Bevel
Tip size
1.2 mm

No.: T39-BCR12
EAN: 4962615058950

Plus Shipping Costs
In 11-30 days after order in stock.
29.50 €
net (VAT Details)
35.11 €
incl. 19% VAT

T39-BCR1235 Bevel, slot 3.5 mm

Be the first to write a review

HAKKO active soldering tip T39-BCR1235

For use with the HAKKO FX 972 and FX 971 soldering station in conjunction with the HAKKO FX 9701 soldering iron and HAKKO FX 9702 N2 soldering iron. Suitable for nitrogen (N2 nozzle not included), compatible nozzles: B 5293 / nozzle group D

Soldering tip
Form
Bevel
Tip size
3.5 mm

No.: T39-BCR1235
EAN: 4962615059216

Plus Shipping Costs
In 11-30 days after order in stock.
29.50 €
net (VAT Details)
35.11 €
incl. 19% VAT

T39-BCR16 Bevel, V-groove 1.6 mm

Be the first to write a review

HAKKO active soldering tip T39-BCR16

For use with the HAKKO FX 972 and FX 971 soldering station in conjunction with the HAKKO FX 9701 soldering iron and HAKKO FX 9702 N2 soldering iron. Suitable for nitrogen (N2 nozzle not included), compatible nozzles: B 5298 / nozzle group I

Soldering tip
Form
Bevel
Tip size
1.6 mm

No.: T39-BCR16
EAN: 4962615058967

Plus Shipping Costs
In 11-30 days after order in stock.
29.50 €
net (VAT Details)
35.11 €
incl. 19% VAT

T39-D4 Chisel 4 mm

Be the first to write a review

HAKKO active soldering tip T39-D4

For use with the HAKKO FX 972 and FX 971 soldering station in conjunction with the HAKKO FX 9701 soldering iron and HAKKO FX 9702 N2 soldering iron. Suitable for nitrogen (N2 nozzle not included), compatible nozzles: B 5291 / nozzle group B

Soldering tip
Form
Chisel
Tip size
4 mm

No.: T39-D4
EAN: 4962615059148

Plus Shipping Costs
In 11-30 days after order in stock.
16.- €
net (VAT Details)
19.04 €
incl. 19% VAT

T39-D16 Chisel 1.6 mm

Be the first to write a review

HAKKO active soldering tip T39-D16

For use with the HAKKO FX 972 and FX 971 soldering station in conjunction with the HAKKO FX 9701 soldering iron and HAKKO FX 9702 N2 soldering iron. Suitable for nitrogen (N2 nozzle not included), compatible nozzles: B 5296 / nozzle group G

Soldering tip
Form
Chisel
Tip size
1.6 mm

No.: T39-D16
EAN: 4962615059117

Plus Shipping Costs
In 11-21 days in stock.
16.- €
net (VAT Details)
19.04 €
incl. 19% VAT

T39-D24 Chisel 2.4 mm

Be the first to write a review

HAKKO active soldering tip T39-D24

For use with the HAKKO FX 972 and FX 971 soldering station in conjunction with the HAKKO FX 9701 soldering iron and HAKKO FX 9702 N2 soldering iron. Suitable for nitrogen (N2 nozzle not included), compatible nozzles: B 5293 / nozzle group D

Soldering tip
Form
Chisel
Tip size
2.4 mm

No.: T39-D24
EAN: 4962615059124

Plus Shipping Costs
In 11-30 days after order in stock.
16.- €
net (VAT Details)
19.04 €
incl. 19% VAT

T39-D32 Chisel 3.2 mm

Be the first to write a review

HAKKO active soldering tip T39-D32

For use with the HAKKO FX 972 and FX 971 soldering station in conjunction with the HAKKO FX 9701 soldering iron and HAKKO FX 9702 N2 soldering iron. Suitable for nitrogen (N2 nozzle not included), compatible nozzles: B 5293 / nozzle group D

Soldering tip
Form
Chisel
Tip size
3.2 mm

No.: T39-D32
EAN: 4962615059131

Plus Shipping Costs
In 11-30 days after order in stock.
16.- €
net (VAT Details)
19.04 €
incl. 19% VAT

T39-D52 Chisel 5.2 mm

Be the first to write a review

HAKKO active soldering tip T39-D52

For use with the HAKKO FX 972 and FX 971 soldering station in conjunction with the HAKKO FX 9701 soldering iron and HAKKO FX 9702 N2 soldering iron. Suitable for nitrogen (N2 nozzle not included), compatible nozzles: B 5291 / nozzle group B

Soldering tip
Form
Chisel
Tip size
5.2 mm

No.: T39-D52
EAN: 4962615059155

Plus Shipping Costs
In 11-30 days after order in stock.
16.- €
net (VAT Details)
19.04 €
incl. 19% VAT

T39-DL32 Chisel 3.2 mm

Be the first to write a review

HAKKO active soldering tip T39-D32

For use with the HAKKO FX 972 and FX 971 soldering station in conjunction with the HAKKO FX 9701 soldering iron and HAKKO FX 9702 N2 soldering iron.

Soldering tip
Form
Chisel
Tip size
3.2 mm

No.: T39-DL32
EAN: 4962615059162

Plus Shipping Costs
In 11-30 days after order in stock.
18.- €
net (VAT Details)
21.42 €
incl. 19% VAT

HAKKO T39-ILS015 Conical, slim 0.15 mm

Be the first to write a review

HAKKO active soldering tip T39-ILS015

For use with the HAKKO FX 972 and FX 971 soldering station in conjunction with the HAKKO FX 9701 soldering iron and HAKKO FX 9702 N2 soldering iron. Suitable for nitrogen (N2 nozzle not included), compatible nozzles: B 5333 / nozzle group K

Soldering tip
Form
Conical
Tip size
0.15 mm

No.: T39-ILS015
EAN: W

Plus Shipping Costs
In 11-30 days after order in stock.
19.- €
net (VAT Details)
22.61 €
incl. 19% VAT

T39-J02 Conical, bent 0.2 mm

Be the first to write a review

HAKKO active soldering tip T39-J02

For use with the HAKKO FX 972 and FX 971 soldering station in conjunction with the HAKKO FX 9701 soldering iron and HAKKO FX 9702 N2 soldering iron. Suitable for nitrogen (N2 nozzle not included), compatible nozzles: B 5298 / nozzle group B

Soldering tip
Form
Conical
Tip size
0.2 mm

No.: T39-J02
EAN: 4962615059346

Plus Shipping Costs
In 11-30 days after order in stock.
20.- €
net (VAT Details)
23.80 €
incl. 19% VAT

T39-JD08 Chisel, bent 0.8 mm

Be the first to write a review

HAKKO active soldering tip T39-JD08

For use with the HAKKO FX 972 and FX 971 soldering station in conjunction with the HAKKO FX 9701 soldering iron and HAKKO FX 9702 N2 soldering iron.

Soldering tip
Form
Chisel
Tip size
0.8 mm

No.: T39-JD08
EAN: 4962615059353

Plus Shipping Costs
In stock
20.- €
net (VAT Details)
23.80 €
incl. 19% VAT

T39-JD16 Chisel, bent 1.6 mm

Be the first to write a review

HAKKO active soldering tip T39-JD16

For use with the HAKKO FX 972 and FX 971 soldering station in conjunction with the HAKKO FX 9701 soldering iron and HAKKO FX 9702 N2 soldering iron.

Soldering tip
Form
Chisel
Tip size
1.6 mm

No.: T39-JD16
EAN: 4962615059377

Plus Shipping Costs
In stock
20.- €
net (VAT Details)
23.80 €
incl. 19% VAT

HAKKO T50 Soldering tips for irons FX-9703, FX-9704

8 of 8 Article

T50-D02 Micro chisel 0.2 mm

Be the first to write a review

HAKKO active soldering tip T50-D02

For use with the HAKKO FX 972 and FX 971 soldering station in conjunction with the HAKKO FX 9703 soldering iron and HAKKO FX 9704 N2 soldering iron. Suitable for nitrogen (N2 nozzle not included).

Soldering tip
Form
Chisel
Tip size
0.2 mm

No.: T50-D02
EAN: 4962615059520

Plus Shipping Costs
In stock
40.- €
net (VAT Details)
47.60 €
incl. 19% VAT

T50-D04 Micro chisel 0.2 mm

Be the first to write a review

HAKKO active soldering tip T50-D04

For use with the HAKKO FX 972 and FX 971 soldering station in conjunction with the HAKKO FX 9703 soldering iron and HAKKO FX 9704 N2 soldering iron. Suitable for nitrogen (N2 nozzle not included).

Soldering tip
Form
Chisel
Tip size
0.4 mm

No.: T50-D04
EAN: 4962615059537

Plus Shipping Costs
In stock
40.- €
net (VAT Details)
47.60 €
incl. 19% VAT

T50-D06 Micro chisel 0.6 mm

Be the first to write a review

HAKKO active soldering tip T50-D06

For use with the HAKKO FX 972 and FX 971 soldering station in conjunction with the HAKKO FX 9703 soldering iron and HAKKO FX 9704 N2 soldering iron. Suitable for nitrogen (N2 nozzle not included).

Soldering tip
Form
Chisel
Tip size
0.6 mm

No.: T50-D06
EAN: 4962615059544

Plus Shipping Costs
In stock
40.- €
net (VAT Details)
47.60 €
incl. 19% VAT

T50-D1 Micro chisel 1 mm

Be the first to write a review

HAKKO active soldering tip T50-D1

For use with the HAKKO FX 972 and FX 971 soldering station in conjunction with the HAKKO FX 9703 soldering iron and HAKKO FX 9704 N2 soldering iron. Suitable for nitrogen (N2 nozzle not included).

Soldering tip
Form
Chisel
Tip size
1 mm

No.: T50-D1
EAN: 4962615059551

Plus Shipping Costs
In stock
40.- €
net (VAT Details)
47.60 €
incl. 19% VAT

T50-I01 Micro conical 0.1 mm

Be the first to write a review

HAKKO active soldering tip T50-I01

For use with the HAKKO FX 972 and FX 971 soldering station in conjunction with the HAKKO FX 9703 soldering iron and HAKKO FX 9704 N2 soldering iron. Suitable for nitrogen (N2 nozzle not included).

Soldering tip
Form
Conical
Tip size
0.1 mm

No.: T50-I01
EAN: 4962615059568

Plus Shipping Costs
In stock
40.- €
net (VAT Details)
47.60 €
incl. 19% VAT

T50-J01 Micro conical, bent 0.1 mm

Be the first to write a review

HAKKO active soldering tip T50-J01

For use with the HAKKO FX 972 and FX 971 soldering station in conjunction with the HAKKO FX 9703 soldering iron and HAKKO FX 9704 N2 soldering iron. Suitable for nitrogen (N2 nozzle not included). Compatible nozzels: A – B5337

Soldering tip
Form
Conical
Tip size
0.1 mm

No.: T50-J01
EAN: 4962615059575

Plus Shipping Costs
In stock
45.- €
net (VAT Details)
53.55 €
incl. 19% VAT

T50-KN Micro knife 0.8x1.4 mm

Be the first to write a review

HAKKO active soldering tip T50-KN

For use with the HAKKO FX 972 and FX 971 soldering station in conjunction with the HAKKO FX 9703 soldering iron and HAKKO FX 9704 N2 soldering iron. Suitable for nitrogen (N2 nozzle not included).

Soldering tip
Form
Knife
Tip size
1.4 mm

No.: T50-KN
EAN: 4962615059599

Plus Shipping Costs
In stock
45.- €
net (VAT Details)
53.55 €
incl. 19% VAT

T50-KU Micro knife 0.04x1.8 mm

Be the first to write a review

HAKKO active soldering tip T50-KU

For use with the HAKKO FX 972 and FX 971 soldering station in conjunction with the HAKKO FX 9703 soldering iron and HAKKO FX 9704 N2 soldering iron. Suitable for nitrogen (N2 nozzle not included). Compatible nozzels: A-B5337

Soldering tip
Form
Knife
Tip size
1.8 mm

No.: T50-KU
EAN: 4962615059582

Plus Shipping Costs
In stock
45.- €
net (VAT Details)
53.55 €
incl. 19% VAT

HAKKO T51 Soldering tips for tweezers FX-9705

14 of 14 Article

T51-C05 Chip 0.5x0.7 mm

Be the first to write a review

HAKKO active soldering tip T51-C05, set containing 2 pieces.

For use with the Hakko FX-9705 parallel tweezers and the Hakko FX-972 soldering station.

Soldering tip
Form
Chip
Tip size
0.5 mm

No.: T51-C05
EAN: 4962615060489

Plus Shipping Costs
In 11-30 days after order in stock.
91.50 €
net (VAT Details)
108.89 €
incl. 19% VAT

T51-I05 Chip 0.5x0.7 mm

Be the first to write a review

HAKKO active soldering tip T51-I05, set containing 2 pieces.

For use with the Hakko FX-9705 parallel tweezers and the Hakko FX-972 soldering station.

Soldering tip
Form
Chip
Tip size
0.5 mm

No.: T51-I05
EAN: 4962615060496

Plus Shipping Costs
In 11-30 days after order in stock.
91.50 €
net (VAT Details)
108.89 €
incl. 19% VAT

T51-L1 Chip 0.7x1 mm

Be the first to write a review

HAKKO active soldering tip T51-L1, set containing 2 pieces.

For use with the Hakko FX-9705 parallel tweezers and the Hakko FX-972 soldering station.

Soldering tip
Form
Chip
Tip size
1 mm

No.: T51-L1
EAN: 4962615060502

Plus Shipping Costs
In 11-30 days after order in stock.
91.50 €
net (VAT Details)
108.89 €
incl. 19% VAT

T51-L2 Chip 0.7x2 mm

Be the first to write a review

HAKKO active soldering tip T51-L2, set containing 2 pieces.

For use with the Hakko FX-9705 parallel tweezers and the Hakko FX-972 soldering station.

Soldering tip
Form
Chip
Tip size
2 mm

No.: T51-L2
EAN: 4962615060519

Plus Shipping Costs
In 11-30 days after order in stock.
91.50 €
net (VAT Details)
108.89 €
incl. 19% VAT

T51-L3 Chip 0.7x3 mm

Be the first to write a review

HAKKO active soldering tip T51-L3, set containing 2 pieces.

For use with the Hakko FX-9705 parallel tweezers and the Hakko FX-972 soldering station.

Soldering tip
Form
Chip
Tip size
3 mm

No.: T51-L3
EAN: 4962615060526

Plus Shipping Costs
In 11-30 days after order in stock.
91.50 €
net (VAT Details)
108.89 €
incl. 19% VAT

T51-L6 Blade 0.7x6 mm

Be the first to write a review

HAKKO active soldering tip T51-L6, set containing 2 pieces.

For use with the Hakko FX-9705 parallel tweezers and the Hakko FX-972 soldering station.

Soldering tip
Form
Blade
Tip size
6 mm

No.: T51-L6
EAN: 4962615060533

Plus Shipping Costs
In 11-30 days after order in stock.
91.50 €
net (VAT Details)
108.89 €
incl. 19% VAT

T51-L8 Blade 0.7x8 mm

Be the first to write a review

HAKKO active soldering tip T51-L8, set containing 2 pieces.

For use with the Hakko FX-9705 parallel tweezers and the Hakko FX-972 soldering station.

Soldering tip
Form
Blade
Tip size
8 mm

No.: T51-L8
EAN: 4962615060540

Plus Shipping Costs
In 11-30 days after order in stock.
91.50 €
net (VAT Details)
108.89 €
incl. 19% VAT

T51-L10 Blade 0.7x10 mm

Be the first to write a review

HAKKO active soldering tip T51-L10, set containing 2 pieces.

For use with the Hakko FX-9705 parallel tweezers and the Hakko FX-972 soldering station.

Soldering tip
Form
Blade
Tip size
10 mm

No.: T51-L10
EAN: 4962615060557

Plus Shipping Costs
In 11-30 days after order in stock.
91.50 €
net (VAT Details)
108.89 €
incl. 19% VAT

T51-L13 Blade 0.7x13 mm

Be the first to write a review

HAKKO active soldering tip T51-L13, set containing 2 pieces.

For use with the Hakko FX-9705 parallel tweezers and the Hakko FX-972 soldering station.

Soldering tip
Form
Blade
Tip size
13 mm

No.: T51-L13
EAN: 4962615060564

Plus Shipping Costs
In 11-30 days after order in stock.
91.50 €
net (VAT Details)
108.89 €
incl. 19% VAT

T51-L16 Blade 0.7x16 mm

Be the first to write a review

HAKKO active soldering tip T51-L16, set containing 2 pieces.

For use with the Hakko FX-9705 parallel tweezers and the Hakko FX-972 soldering station.

Soldering tip
Form
Blade
Tip size
16 mm

No.: T51-L16
EAN: 4962615060571

Plus Shipping Costs
In 11-30 days after order in stock.
91.50 €
net (VAT Details)
108.89 €
incl. 19% VAT

T51-LA3 Blade, angled 0.7x3 mm

Be the first to write a review

HAKKO active soldering tip T51-LA3, set containing 2 pieces.

For use with the Hakko FX-9705 parallel tweezers and the Hakko FX-972 soldering station.

Soldering tip
Form
Blade
Tip size
3 mm

No.: T51-LA3
EAN: 4962615060588

Plus Shipping Costs
In 11-30 days after order in stock.
91.50 €
net (VAT Details)
108.89 €
incl. 19% VAT

T51-LA6 Blade, angled 0.7x6 mm

Be the first to write a review

HAKKO active soldering tip T51-LA6, set containing 2 pieces.

For use with the Hakko FX-9705 parallel tweezers and the Hakko FX-972 soldering station.

Soldering tip
Form
Blade
Tip size
6 mm

No.: T51-LA6
EAN: 4962615060595

Plus Shipping Costs
In 11-30 days after order in stock.
91.50 €
net (VAT Details)
108.89 €
incl. 19% VAT

T51-LA8 Blade, angled 0.7x8 mm

Be the first to write a review

HAKKO active soldering tip T51-LA8, set containing 2 pieces.

For use with the Hakko FX-9705 parallel tweezers and the Hakko FX-972 soldering station.

Soldering tip
Form
Blade
Tip size
8 mm

No.: T51-LA8
EAN: 4962615060601

Plus Shipping Costs
In 11-30 days after order in stock.
91.50 €
net (VAT Details)
108.89 €
incl. 19% VAT

T51-LA10 Blade, angled 0.7x10 mm

Be the first to write a review

HAKKO active soldering tip T51-LA10, set containing 2 pieces.

For use with the Hakko FX-9705 parallel tweezers and the Hakko FX-972 soldering station.

Soldering tip
Form
Blade
Tip size
10 mm

No.: T51-LA10
EAN: 4962615060618

Plus Shipping Costs
In 11-30 days after order in stock.
91.50 €
net (VAT Details)
108.89 €
incl. 19% VAT

HAKKO T52 Soldering tips for micro tweezers FX-9706

7 of 7 Article

T52-J005 Micro conical, bent 0.05 mm

Be the first to write a review

HAKKO active soldering tip T52-J005, set containing 2 pieces.

For use with the Hakko FX-9706 micro-tweezers and the Hakko FX-972 soldering station.

Soldering tip
Form
Conical
Tip size
0.05 mm

No.: T52-J005
EAN: 4962615060427

Plus Shipping Costs
In 11-30 days after order in stock.
135.- €
net (VAT Details)
160.65 €
incl. 19% VAT

T52-J015 Micro conical, bent 0.15 mm

Be the first to write a review

HAKKO active soldering tip T52-J015, set containing 2 pieces.

For use with the Hakko FX-9706 micro-tweezers and the Hakko FX-972 soldering station.

Soldering tip
Form
Conical
Tip size
0.15 mm

No.: T52-J015
EAN: 4962615060410

Plus Shipping Costs
In stock
96.50 €
net (VAT Details)
114.84 €
incl. 19% VAT

T52-L1 Micro chip 1 mm

Be the first to write a review

HAKKO active soldering tip T52-L1, set containing 2 pieces.

For use with the Hakko FX-9706 micro-tweezers and the Hakko FX-972 soldering station.

Soldering tip
Form
Chip
Tip size
1 mm

No.: T52-L1
EAN: 4962615060397

Plus Shipping Costs
In stock
96.50 €
net (VAT Details)
114.84 €
incl. 19% VAT

T52-L2 Micro chip 2 mm

Be the first to write a review

HAKKO active soldering tip T52-L2, set containing 2 pieces.

For use with the Hakko FX-9706 micro-tweezers and the Hakko FX-972 soldering station.

Soldering tip
Form
Chip
Tip size
2 mm

No.: T52-L2
EAN: 4962615060403

Plus Shipping Costs
In stock
96.50 €
net (VAT Details)
114.84 €
incl. 19% VAT

T52-I005 Micro conical 0.05 mm

Be the first to write a review

HAKKO active soldering tip T52-I005, set containing 2 pieces.

For use with the Hakko FX-9706 micro-tweezers and the Hakko FX-972 soldering station.

Soldering tip
Form
Conical
Tip size
0.05 mm

No.: T52-I005
EAN: 4962615060380

Plus Shipping Costs
In 11-30 days after order in stock.
135.- €
net (VAT Details)
160.65 €
incl. 19% VAT

T52-I015 Micro conical 0.15 mm

Be the first to write a review

HAKKO active soldering tip T52-I015, set containing 2 pieces.

For use with the Hakko FX-9706 micro-tweezers and the Hakko FX-972 soldering station.

Soldering tip
Form
Conical
Tip size
0.15 mm

No.: T52-I015
EAN: 4962615060373

Plus Shipping Costs
In stock
96.50 €
net (VAT Details)
114.84 €
incl. 19% VAT

T52-K Micro knife 0.2x1.8 mm

Be the first to write a review

HAKKO active soldering tip T52-K, set containing 2 pieces.

For use with the Hakko FX-9706 micro-tweezers and the Hakko FX-972 soldering station.

Soldering tip
Form
Knife
Tip size
0.2 mm

No.: T52-K
EAN: 4962615060434

Plus Shipping Costs
In stock
96.50 €
net (VAT Details)
114.84 €
incl. 19% VAT

HAKKO T53 Soldering tips for irons FX-9707

2 of 2 Article

T53-B05 Conical 0.5 mm

Be the first to write a review

HAKKO active soldering tip T53-B05

For use with the HAKKO FX 972 and FX 971 soldering station in conjunction with the HAKKO FX 9707 soldering iron and HAKKO FX 9708 N2 soldering iron. Suitable for nitrogen (N2 nozzle not included), compatible nozzles: B 5345 / nozzle group A

Soldering tip
Form
Conical
Tip size
0.5 mm

No.: T53-B05
EAN: 4962615060090

Plus Shipping Costs
In 11-30 days after order in stock.
35.- €
net (VAT Details)
41.65 €
incl. 19% VAT

T53-B2030 Bevel 2x3 mm

Be the first to write a review

HAKKO active soldering tip T53-B2030

For use with the HAKKO FX 972 and FX 971 soldering station in conjunction with the HAKKO FX 9707 soldering iron and HAKKO FX 9708 N2 soldering iron. Suitable for nitrogen (N2 nozzle not included), compatible nozzles: B 5345 / nozzle group A

Soldering tip
Form
Bevel
Tip size
3 mm

No.: T53-B2030
EAN: 4962615060106

Plus Shipping Costs
In stock
35.- €
net (VAT Details)
41.65 €
incl. 19% VAT

Accessories, HAKKO FX-972/973

16 of 16 Article

HAKKO FX-9701-811

Be the first to write a review

HAKKO FX-9701 general soldering iron 100 W ( 24V ) and the FH-215-81 tool tray for HAKKO FX-972 soldering station. The FX-9701 has an ergonomic design and a sleep sensor built directly into the iron. The FX-9701 uses the new T39 soldering tips. The new FH-215 holder is fully redesigned to support the handpiece with a new receptacle piece, extra tip storage, easy removable back and sponge and brass wire.

Attention: Cartridges/tips are not included!

We have no authorization for the distribution of the HAKKO Professional Line in Switzerland

No.: FX-9701-811
EAN: 4962615060441

Plus Shipping Costs
In 11-30 days after order in stock.
152.- €
net (VAT Details)
180.88 €
incl. 19% VAT

HAKKO FX-9701-81

Be the first to write a review

HAKKO general soldering iron 95 W (24 V) for HAKKO soldering station FX-971 / FX-972 for use with soldering tips of the T39 series.

Attention: Cartridges/tips are not included!

We have no authorization for the distribution of the HAKKO Professional Line in Switzerland

No.: FX-9701-81
EAN: 4962615059605

Plus Shipping Costs
In 11-30 days after order in stock.
63.50 €
net (VAT Details)
75.57 €
incl. 19% VAT

HAKKO FX-9703-811

Be the first to write a review

HAKKO FX-9703 micro soldering 70 W ( 24V ) and the FH-215-811 tool tray for HAKKO FX-972 soldering station. The FX-9703 uses the all new T50 micro series tips. The new FH-215 holder is fully redesigned to support the handpiece with a new receptacle piece, extra tip storage, easy removable back and sponge and brass wire.

Attention: Cartridges/tips are not included!

We have no authorization for the distribution of the HAKKO Professional Line in Switzerland

No.: FX-9703-811
EAN: 4962615059667

Plus Shipping Costs
In 11-30 days after order in stock.
192.50 €
net (VAT Details)
229.08 €
incl. 19% VAT

HAKKO FX-9703-81

Be the first to write a review

HAKKO micro soldering iron 70 W (24 V) for HAKKO soldering station FX-971 / FX-972 for use with soldering tips of the T50 series.

Attention: Cartridges/tips are not included!

We have no authorization for the distribution of the HAKKO Professional Line in Switzerland

No.: FX-9703-81
EAN: 4962615059650

Plus Shipping Costs
In stock
79.50 €
net (VAT Details)
94.61 €
incl. 19% VAT

HAKKO FX-9705-811

Be the first to write a review

HAKKO FX-9705 soldering tweezers with 95 W watt at each tip and the FH-220-813 tool tray for HAKKO FX-972 soldering station. The FX-9705 has an ergonomic design and a sleep sensor built directly into the iron. The FX 9705 uses the new T51 soldering tips. The new FH-220-813 holder is fully redesigned to support the handpiece with a new receptacle piece, extra tip storage, easy removable back and sponge and brass wire.

Attention: Cartridges/tips are not included!

We have no authorization for the distribution of the HAKKO Professional Line in Switzerland

No.: FX-9705-811
EAN: 4962615060472

Free shipping within Germany and to our neighboring EU countries! Shipping charges apply to all other countries.
In 11-30 days after order in stock.
262.- €
net (VAT Details)
311.78 €
incl. 19% VAT

HAKKO FX-9705-81

Be the first to write a review

HAKKO soldering tweezers 190W (24V) for HAKKO FX-972 soldering station without accessories. It's designed for the removal of small surface mount components, is lightweight, ergonomic, and delivers nearly 200W of power with superior thermal recovery. The FX-9705 has two levels of tip alignment to ensure the job gets done efficiently.

Attention: Cartridges/tips are not included!

We have no authorization for the distribution of the HAKKO Professional Line in Switzerland

No.: FX-9705-81
EAN: 4962615060465

Plus Shipping Costs
In stock
146.50 €
net (VAT Details)
174.34 €
incl. 19% VAT

HAKKO FX-9706-811

Be the first to write a review

HAKKO FX-9706 micro soldering tweezers 140 W ( 24V ) with 70 watts at each tip and the FH-215-814 Tool tray for HAKKO FX-972 soldering station. The FX-9706 has quick thermal recovery performance and is excellent for micro SMD components. The FX-9706 uses the new T52 soldering tips. A 140 W Micro tweezer with four levels of adjustment, vertical, horizontal, forward, and angle.

Attention: Cartridges/tips are not included!

We have no authorization for the distribution of the HAKKO Professional Line in Switzerland

No.: FX-9706-81
EAN: 4962615060359

Free shipping within Germany and to our neighboring EU countries! Shipping charges apply to all other countries.
In 11-30 days after order in stock.
283.50 €
net (VAT Details)
337.37 €
incl. 19% VAT

HAKKO FX-9706-81

Be the first to write a review

HAKKO micro soldering tweezers 140 W ( 24V ) with 70 watts at each tip for HAKKO FX-972 soldering station.

The FX-9706 has quick thermal recovery performance and is excellent for micro SMD components. A 140W Micro tweezer with four levels of adjustment, vertical, horizontal, forward, and angle.

Attention: Cartridges/tips are not included!

We have no authorization for the distribution of the HAKKO Professional Line in Switzerland

No.: FX-9706-81
EAN: 4962615060342

Plus Shipping Costs
In stock
162.- €
net (VAT Details)
192.78 €
incl. 19% VAT

HAKKO FX-9707-811

Be the first to write a review

HAKKO FX-9707 heavy duty soldering iron 200 W ( 24V ) and the FH-220-81 tool tray for HAKKO FX-972 soldering station. The FX-9707 has an ergonomic design and a sleep sensor built directly into the iron. The FX-9707 uses the new T53 soldering tips. The new FH-220-81 holder is fully redesigned to support the handpiece with a new receptacle piece, extra tip storage, easy removable back and sponge and brass wire.

Attention: Cartridges/tips are not included!

We have no authorization for the distribution of the HAKKO Professional Line in Switzerland

No.: FX-9707-811
EAN: 4962615060243

Plus Shipping Costs
In 11-30 days after order in stock.
192.50 €
net (VAT Details)
229.08 €
incl. 19% VAT

HAKKO FX-9707-81

Be the first to write a review

HAKKO high-performance soldering iron 200 W (24 V) for HAKKO FX-972 soldering station for use with T53 soldering tips.

Attention: Cartridges/tips are not included!

We have no authorization for the distribution of the HAKKO Professional Line in Switzerland

No.: FX-9707-81
EAN: 4962615060236

Plus Shipping Costs
In stock
88.- €
net (VAT Details)
104.72 €
incl. 19% VAT

HAKKO A5044 Ceramic filters for FR-41xx/301/300,817/808/809/807

Be the first to write a review

HAKKO ceramic paper filter L for the filter tube of HAKKO desoldering guns 809 / 815 / 816 / FR 300 / FR301 / FR 410 (PU 10 pieces)

We have no authorization for the distribution of the HAKKO Professional Line in Switzerland

No.: A5044
EAN: 4962615050770

Plus Shipping Costs
In stock
11.60 €
net (VAT Details)
13.80 €
incl. 19% VAT

HAKKO 599B-02 Soldering tip cleaner

Be the first to write a review

The metal wool, which is made of a bronze alloy, is coated with a wafer-thin layer of flux and deposited in a container. The application is uncomplicated. The soldering tip is dipped into the wool without any additional movement, whereby it is cleaned and comes out clean again.

We have no authorization for the distribution of the HAKKO Professional Line in Switzerland

No.: 599B-02
EAN: 4962615007637

Plus Shipping Costs
In stock
10.90 €
net (VAT Details)
12.97 €
incl. 19% VAT

HAKKO 599-029 Replacement bale 599B

Be the first to write a review

The curly brass wire is tough enough to scrub residual solder from your soldering tools without your soldering iron becoming cool. The 599B is the perfect alternative to using a damp sponge.

We have no authorization for the distribution of the HAKKO Professional Line in Switzerland

No.: 599-029
EAN: 4962615541360

Plus Shipping Costs
In stock
5.- €
net (VAT Details)
5.95 €
incl. 19% VAT

HAKKO HAKKO FS-100 tip cleaning paste Tip cleaning paste

Be the first to write a review

The Hakko FS-100 paste re-tins oxidized soldering iron tips and is 100% Lead-Free. The flux does not contain Diammonium phosphate and does not leave a corrosive residue. Depending on the severity of the oxidation and/or corrosion, the FS-100 will help rejuvenate very oxidized and/or corroded soldering iron tips back to useful life. For optimum performance, use the FS-100 paste in conjuntion with the Hakko FT-700 tip polisher for increased oxide removal.

We have no authorization for the distribution of the HAKKO Professional Line in Switzerland

No.: FS 100-01
EAN: 4962615017957

Plus Shipping Costs
In stock
10.10 €
net (VAT Details)
12.02 €
incl. 19% VAT

HAKKO FT-700 Soldering tip polisher

Be the first to write a review

The Hakko FT-700 Tip Polisher helps increase the life of your tip with the action of two spinning polishing brushes. The Hakko FT-700 is an expeditious and efficient way to boost tip life and keep free from oxidation. Comes with the Hakko FS-100 Tip Polish.

We have no authorization for the distribution of the HAKKO Professional Line in Switzerland

No.: FT-700-13
EAN: 4962615020032

Free shipping within Germany and to our neighboring EU countries! Shipping charges apply to all other countries.
In 11-30 days after order in stock.
226.50 €
net (VAT Details)
269.54 €
incl. 19% VAT

HAKKO FT-710 Soldering tip cleaner

Be the first to write a review

The Hakko FT-710 Tip Cleaner quickly and effectively cleans the soldering iron tip with the use of counter-rotating brushes to scrub away oxides, excess solder, and debris. Brushes are activated when the tip is pressed into the receptacle chamber which accurately positions the tip for optimal cleaning.

We have no authorization for the distribution of the HAKKO Professional Line in Switzerland

No.: FT-710-05
EAN: 4962615034985

Plus Shipping Costs
In 11-30 days after order in stock.
195.70 €
net (VAT Details)
232.88 €
incl. 19% VAT

Downloads

Product information

Adobe PDF

Hakko FX-971 / 972 - catalog

Language: English
Version: spec-e-002
File Size: 1.25 MiB
Release Date: 15.02.2024

Adobe PDF

Hakko FX-971 / 972 - catalog

Language: German
Version: CA00573ObYa002
File Size: 4.66 MiB
Release Date: 01.03.2023

Datasheet

Adobe PDF

HAKKO FX-971/FX-972/FX973 Datasheet

Language: German
Version: CA00604QbYa002
File Size: 12.12 MiB
Release Date: 07.08.2025

Manual

Adobe PDF

HAKKO FX-972 user manual

Language: German
Version: 801005-001
File Size: 6.58 MiB
Release Date: 01.12.2022

Adobe PDF

HAKKO FX-972 user manual

Language: Spain
Version: 960022-001
File Size: 6.58 MiB
Release Date: 05.01.2023

Adobe PDF

HAKKO FX-972 user manual

Language: English
Version: 801001-001a
File Size: 6.58 MiB
Release Date: 05.01.2023

Guide

Adobe PDF

HAKKO FX-971/FX-972 combinations

Language: German
File Size: 352.76 KiB
Release Date: 04.04.2023
