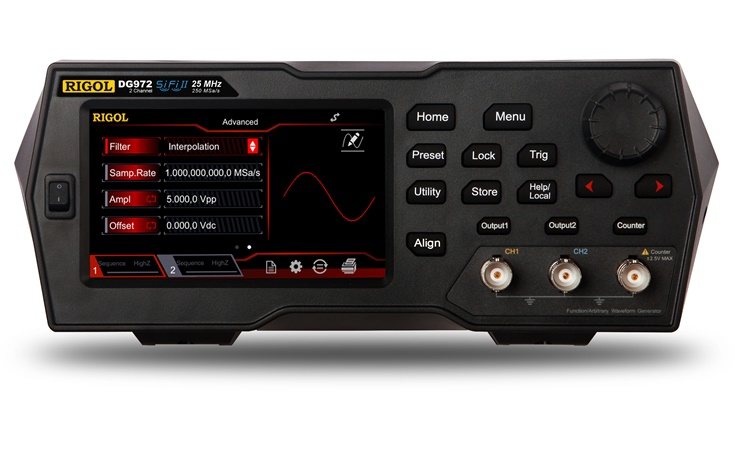

Rigol DG972

Be the first to write a review

2 channel function / arbitrary waveform generator with 1 μHz to 70 MHz bandwidth, 250 MSa/s samplerate, 16 Bit resolution, 16 Mpts memory depth, amplitude range 1 mVpp to 2.5 Vpp (high impedance), 10.9 cm (4.3") touchdisplay.

This article is no longer available.

Description

Engineers and students who require high signal fidelity in a reliable and capable waveform generation need look no further than the DG900 Series generators. With frequencies up to 100 MHz, 16Bit Resolution, and arbitrary waveforms of up to 16 Mpts the DG900 reproduces any waveform with high signal fidelity. SiFi II adds additional filtering capabilities making this one of the most flexible generators on the market.
The intuitive touchscreen control and compact fanless design make it the perfect choice for your desk, bench, or lab.

Model	DG952	DG972	DG992
Max. Frequency	50 MHz	70 MHz	100 MHz
Resolution	1 µHz	1 µHz	1 µHz
Sample rate	250 MSa/s	250 MSa/s	250 MSa/s
vertical resolution	16 bits	16 bits	16 bits
Max Amplitude	2.5 Vpp < 60 MHz	1 Vpp < 60 MHz	1 Vpp < 60 MHz
Frequency Counter	up to 240 MHz	up to 240 MHz	up to 240 MHz
Channels	2	2	2
