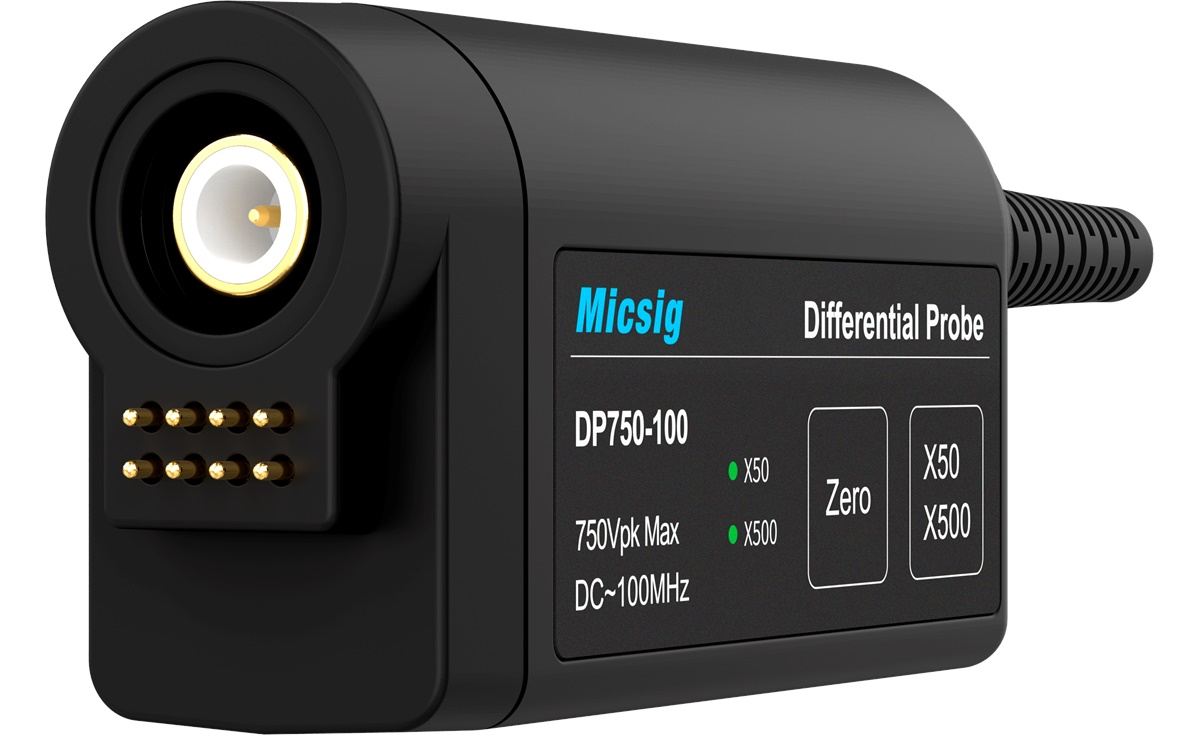

Micsig DP750-100 (discontinued, remaining stock)

Active differential probe, switchable

Attenuation	50:1 / 500:1
Input Impedance	8 MΩ 1.25 pF （differential） 4 MΩ 2.5 pF （single ended to ground）
Bandwith	100 MHz
Rise Time	3.5 ns
Max. Test Input	75 V (50:1) 750 V (500:1)
Max. Input (grounded)	CAT II 1000 V
Input Cablelength	0.15 m
Output Cablelength	1.0 m

1 year warranty

Nr: DP750-100

Plus Shipping Costs

in Stock

€ 179.- net (VAT Details)

€ 213.01 incl. 19% VAT

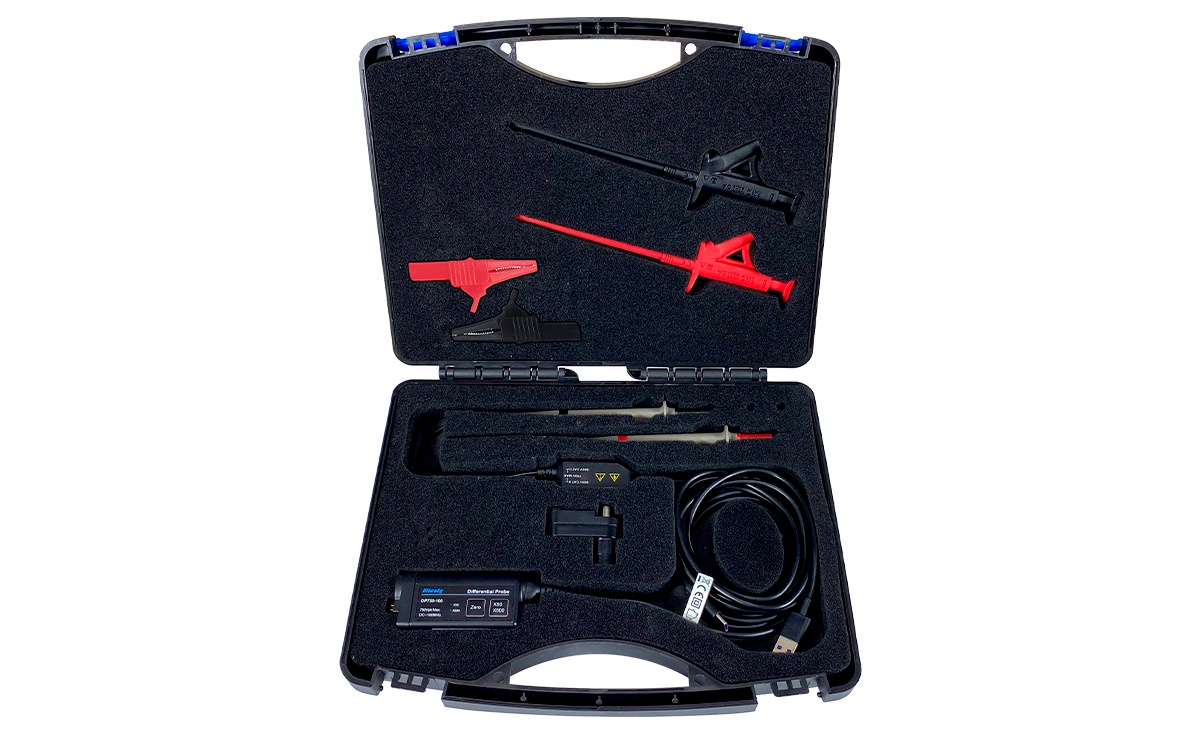

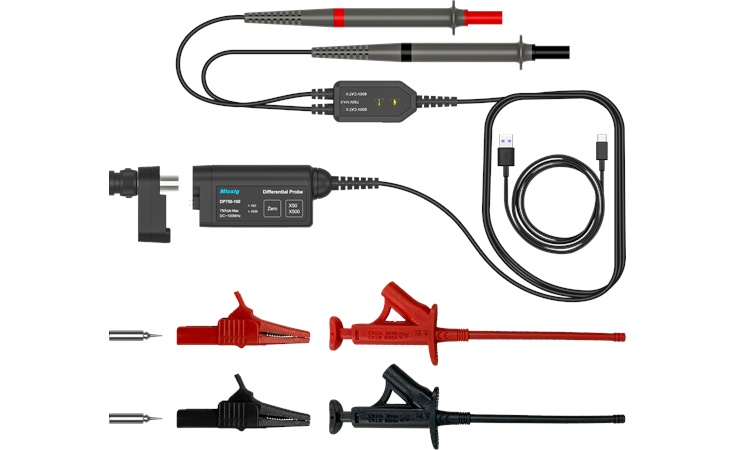

The leads and probe are with shielded design, interface ends are integrated in a compact box;
No need to twist the cables, leads to a lower noise floor and has less interference.
Support one-press Zero calibration and automatic overrange alarm;
Directly powered by Micsig UPI interface, auto match scaling setup with oscilloscope;
Can be powered by oscilloscope via USB cable.

Active differential probe, switchable

Model	DP10007	DP750-100	DP10013	DP20003
Bandwith	100 MHz	100 MHz	100 MHz	100 MHz
Rise Time	3.5 ns	3.5 ns	3.5 ns	3.5 ns
Attenuation	10 : 1 100 : 1	50 : 1 500 : 1	50 : 1 500 : 1	200 : 1 2000 : 1
Gain Accuracy	±1%	±2%	±2%	±2%
Max. Diff. Test Input	70 V （10 : 1） 700 V （100 : 1）	75 V （50 : 1） 750 V （500 : 1）	130 V （50 : 1） 1300 V （500 : 1）	560 V （200 : 1） 5600 V （2000 : 1）
Max. Input(earthed)	CAT II 600 V CAT I 1000 V	CAT II 600 V	CAT II 1000 V	CAT III 1000 V
Common Mode Rejection Ratio	＞-80 dB (50 Hz）＞-60 dB （20 kHz）＞-45 dB （1 MHz）	＞-80 dB (50 Hz）＞-60 dB （20 kHz）＞-50 dB （1 MHz）	＞-80 dB (50 Hz）＞-60 dB （20 kHz）＞-50 dB （1 MHz）	＞-80 dB (50 Hz）＞-60 dB （20 kHz）＞-50 dB （1 MHz）
Input Impedance	8 MΩ/1.25 pF (differential) 4 MΩ/2.5 pF (each input to ground)	8 MΩ/1.25 pF (differential) 4 MΩ/2.5 pF (each input to ground)	10 MΩ/1 pF (differential) 5 MΩ/2 pF (each input to ground)	50 MΩ/1.25 pF (differential) 25 MΩ/2.5 pF (each input to ground)
Output	≤7V	≤1.5V	≤3V	≤3V
Overrange Alarm	Button light flashes	Button light flashes	Button light flashes	Button light flashes
Power Supply	DC 5 V，USB	DC 5 V，USB or Micsig UPI	DC 5 V，USB	DC 5 V，USB
Power	1.25 W	1 W	0.85 W	0.85 W
Dimensions	14.5 cm x 6 cm x 2.7 cm	8 cm x 3.7 cm x 2.2 cm	14.5 cm x 6 cm x 2.7 cm	14.5 cm x 6 cm x 2.7 cm
Input Cable Length	0.45 m	0.15 m	0.45 m	0.45 m
Output Cable Length	0.90 m	1.0 m	0.90 m	0.90 m
