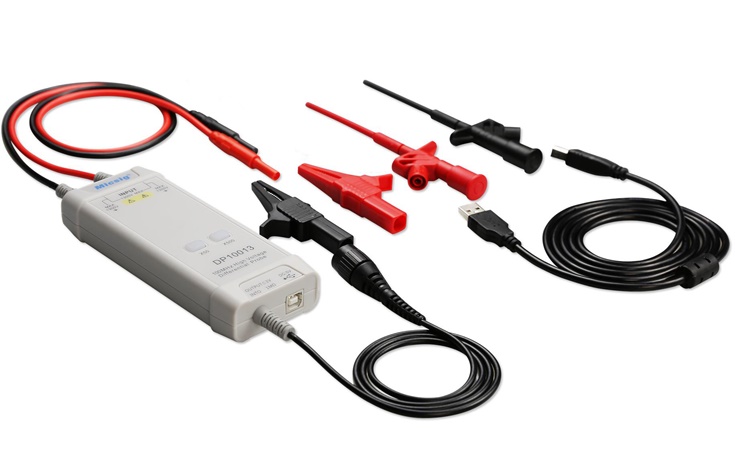

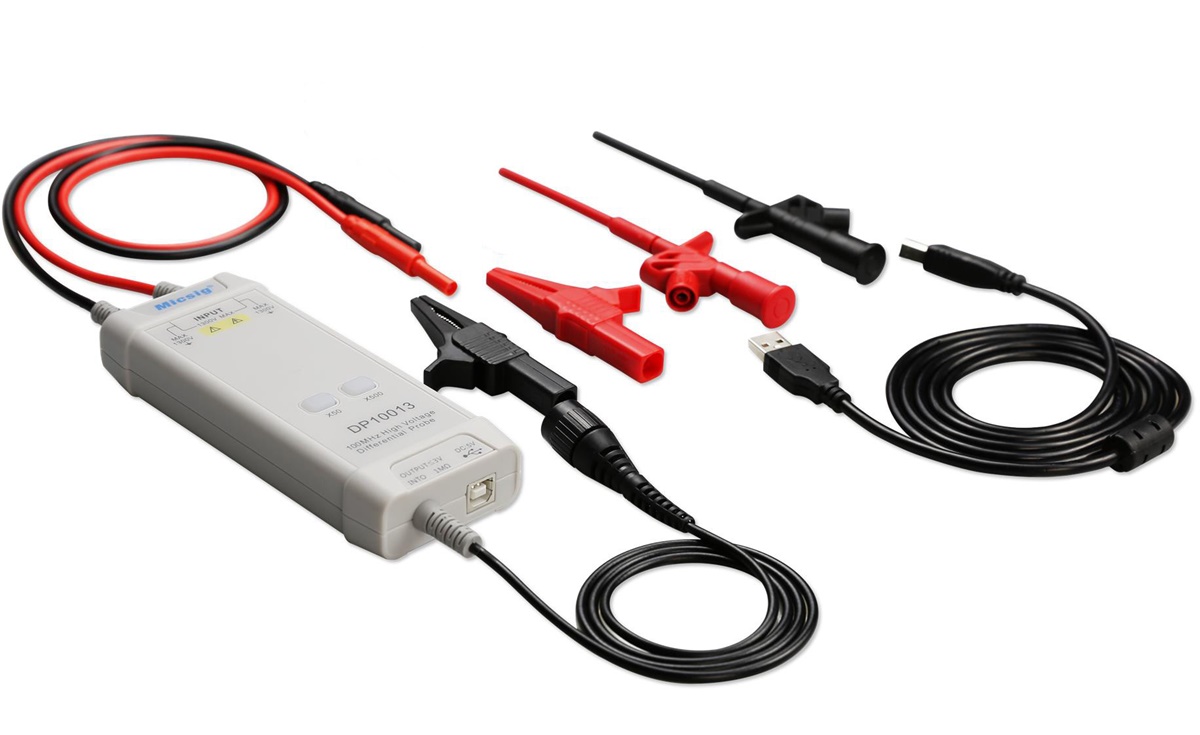

- Micsig DP Series High Voltage Differential Probes can be used with any brand of oscilloscope.
- It adopts high-impedance isolation between the input and output to protect personal safety, converts the input high-voltage signal to a low-voltage signal for observation and analysis on oscilloscope.
- Light weight and compact size, easy to carry
- Powered by USB output (DC 5V) from oscilloscope, apply easily to floating measurements.
- Easy self-calibration
- No mechanical switches, support self-illuminating button
- USB DC power output, convenient for cascading power supply when multiple probes are used at the same time
Active differential probe, switchable
| Model | DP10007 | DP750-100 | DP10013 | DP20003 |
|---|---|---|---|---|
| Bandwith | 100 MHz | 100 MHz | 100 MHz | 100 MHz |
| Rise Time | 3.5 ns | 3.5 ns | 3.5 ns | 3.5 ns |
| Attenuation | 10 : 1 100 : 1 | 50 : 1 500 : 1 | 50 : 1 500 : 1 | 200 : 1 2000 : 1 |
| Gain Accuracy | ±1% | ±2% | ±2% | ±2% |
| Max. Diff. Test Input | 70 V （10 : 1） 700 V （100 : 1） | 75 V （50 : 1） 750 V （500 : 1） | 130 V （50 : 1） 1300 V （500 : 1） | 560 V （200 : 1） 5600 V （2000 : 1） |
| Max. Input(earthed) | CAT II 600 V CAT I 1000 V | CAT II 600 V | CAT II 1000 V | CAT III 1000 V |
| Common Mode Rejection Ratio | ＞-80 dB (50 Hz） ＞-60 dB （20 kHz） ＞-45 dB （1 MHz） | ＞-80 dB (50 Hz） ＞-60 dB （20 kHz） ＞-50 dB （1 MHz） | ＞-80 dB (50 Hz） ＞-60 dB （20 kHz） ＞-50 dB （1 MHz） | ＞-80 dB (50 Hz） ＞-60 dB （20 kHz） ＞-50 dB （1 MHz） |
| Input Impedance | 8 MΩ/1.25 pF (differential) 4 MΩ/2.5 pF (each input to ground) | 8 MΩ/1.25 pF (differential) 4 MΩ/2.5 pF (each input to ground) | 10 MΩ/1 pF (differential) 5 MΩ/2 pF (each input to ground) | 50 MΩ/1.25 pF (differential) 25 MΩ/2.5 pF (each input to ground) |
| Output | ≤7V | ≤1.5V | ≤3V | ≤3V |
| Overrange Alarm | Button light flashes | Button light flashes | Button light flashes | Button light flashes |
| Power Supply | DC 5 V，USB | DC 5 V，USB or Micsig UPI | DC 5 V，USB | DC 5 V，USB |
| Power | 1.25 W | 1 W | 0.85 W | 0.85 W |
| Dimensions | 14.5 cm x 6 cm x 2.7 cm | 8 cm x 3.7 cm x 2.2 cm | 14.5 cm x 6 cm x 2.7 cm | 14.5 cm x 6 cm x 2.7 cm |
| Input Cable Length | 0.45 m | 0.15 m | 0.45 m | 0.45 m |
| Output Cable Length | 0.90 m | 1.0 m | 0.90 m | 0.90 m |
