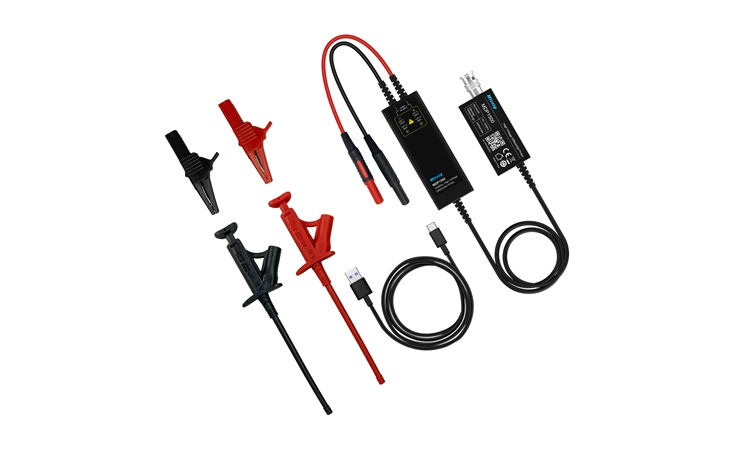

The high-voltage differential probes of the MDP series are based on Micsig's innovative SigOFITTM technology. They are characterised by a very low noise floor, excellent amplitude-frequency characteristics and industry-leading common mode rejection, enabling users to test high frequency and high voltage signals with ease. Micsig MDP series probes can be used with oscilloscopes from all manufacturers.
Features
- Quick Zero: Short-circuit the test leads, press the zero button, the probe can be zeroed very quickly.
- Dual range selection: Improves the signal-to-noise ratio, meets more test requirements.
- BNC interface: Standard BNC interface, works with any oscilloscope.
- USB power supply: Powered directly from the oscilloscope's USB port via a Type-C cable.
- Overvoltage alarm: LED flashes, buzzer "beeps" quickly and indicates an over-range alert.
- Exceptionally compact: Much smaller than conventional differential probes.
Micsig DP1500 series
| Model | DP1500 | DP1501 | DP1502 | DP1503 | DP1505 |
|---|---|---|---|---|---|
| Bandwidth | 100 MHz | 150 MHz | 200 MHz | 300 MHz | 500 MHz |
| Rise time | ≤ 3.5 ns | ≤ 2.33 ns | ≤ 1.75 ns | ≤ 1.2 ns | ≤ 0.7 ns |
| Attenuation | 20 : 1 200 : 1 | 20 : 1 200 : 1 | 20 : 1 200 : 1 | 50 : 1 500 : 1 | 50 : 1 500 : 1 |
| Accuracy | ±2 % | ±2 % | ±2 % | ±2 % | ±2 % |
| Max. Differential Voltage ( DC+AC PK) | 150 V （20 : 1） 1500 V （200 :1） | 150 V （20 : 1） 1500 V （200 :1） | 150 V （20 : 1） 1500 V （200 :1） | 150 V （50 : 1） 1500 V （500 :1） | 150 V （50 : 1） 1500 V （500 :1） |
| Max. Common Mode Input Voltage | CAT II 1000 V CAT III 600 V | CAT II 1000 V CAT III 600 V | CAT II 1000 V CAT III 600 V | CAT II 1000 V CAT III 600 V | CAT II 1000 V CAT III 600 V |
| CMRR | DC: > -80 dB 100 kHz: > -60 dB 10 MHz: > -30 dB 100 MHz: > -26 dB | DC: > -80 dB 100 kHz: > -60 dB 10 MHz: > -30 dB 100 MHz: > -26 dB | DC: > -80 dB 100 kHz: > -60 dB 10 MHz: > -30 dB 100 MHz: > -26 dB | DC: > -80 dB 100 kHz: > -60 dB 20 MHz: > -40 dB | DC: > -80 dB 100 kHz: > -60 dB 20 MHz: > -40 dB |
| Input impedance | 10 MΩ 2 pF （differential） 5 MΩ 4 pF （single） | 10 MΩ 2 pF （differential） 5 MΩ 4 pF （single） | 10 MΩ 2 pF （differential） 5 MΩ 4 pF （single） | 16 MΩ 1.5 pF （differential） 8 MΩ 3 pF （single） | 16 MΩ 1.5 pF （differential） 8 MΩ 3 pF （single） |
| Output voltage | ≤ 7.5 V | ≤ 7.5 V | ≤ 7.5 V | ≤ 3 V | ≤ 3 V |
| Overrange | LED/buzzer | LED/buzzer | LED/buzzer | LED/buzzer | LED/buzzer |
| Power supply | USB Type-C | USB Type-C | USB Type-C | USB Type-C | USB Type-C |
| Power | 2 W | 2 W | 2 W | 2 W | 2 W |
| Cable length input | approx. 8 cm | approx. 8 cm | approx. 8 cm | approx. 8 cm | approx. 8 cm |
| Cable length output | approx. 120 cm | approx. 120 cm | approx. 120 cm | approx. 120 cm | approx. 120 cm |
