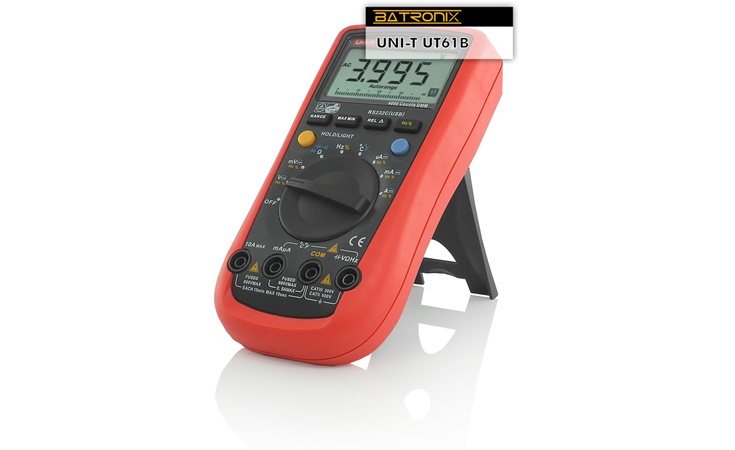

Name: UNI-T UT61B
Brand: UNI-T
SKU: 6935750561027
Availability: Discontinued
Rating: 5.0 (3 reviews)

Description

The UNI-T digital multimeter provides a sophisticated measurement technology at a very good price / performance ratio. Different models cover the entire range, from the good entry-level model to precise measurement devices with a precision of 0.05% deviation.

Besides the quality, the measurement devices distinguish by their ease of use, good legibility of the display and sophisticated measurement functions. UNI-T digital multimeters also fulfill the important details of everyday measuring, such as the almost immediate response of the continuity test, reliable measurement results, and conservative use of the battery. If you have ever worked with a digital multimeter from one of the various cheap manufacturers, you are familiar with problems such as continuity tests taking several seconds, noticeable deviation of measurement results if the battery is low, and rapid battery drain...

Models	UT61B	UT61C	UT61D	UT61E
max. Resolution	3¾ Digits	3 5/6 Digits	3 5/6 Digits	4½ Digits
max. Display	4.000	6.000	6.000	22.000
max. Sample Rate	2 Sa/s	2 Sa/s	2 Sa/s	2 Sa/s
True RMS

USB Measurement Possibilities

The UNI-T UT61B has a built-in USB / RS232 interface for PC communications. Combined with its software, it allows receiving, recording and performing long time data measurements with graphical visualization. It can save up to 2 Sa/s, depending on the measurement function selected (DCV, Resistance, Frequency, ...)

Specifications

Measurement	Range	Accuracy	Resolution
DC Voltage (DCV)	40.00 mV 400.0 mV 4.000 V 40.00 V 400.0 V 1000 V	±(0.8%+3 dig.) ±(0.8%+3 dig.) ±(0.5%+1 dig.) ±(0.5%+1 dig.) ±(0.5%+1 dig.) ±(1.0%+3 dig.)	0.01 mV 0.1 mV 0.001 V 0.01 V 0.1 V 1 V
AC Voltage (ACV) 45 Hz - 400 Hz	40.0 mV 400.0 mV 4.000 V 40.00 V 400.0 V 750 V	±(1.2%+5 dig.) ±(1.0%+3 dig.) ±(1.0%+3 dig.) ±(1.0%+3 dig.) ±(1.0%+3 dig.) ±(1.2%+5 dig.)	0.01 mV 0.1 mV 0.001 V 0.01 V 0.1 V 1 V
DC Current (DCA)	400.0 µA 4000 µA 40.00 mA 400.0 mA 4.000 A 10.00 A	±(1.0%+2 dig.) ±(1.0%+2 dig.) ±(1.2%+3 dig.) ±(1.2%+3 dig.) ±(1.5%+3 dig.) ±(1.5%+3 dig.)	0.1 µA 1 µA 0.01 mA 0.1 mA 0.001 A 0.01 A
AC Current (ACA)	400.0 µA 4000 µA 40.00 mA 400.0 mA 4.000 A 10.00 A	±(1.2%+5 dig.) ±(1.2%+5 dig.) ±(1.5%+5 dig.) ±(1.5%+5 dig.) ±(2.0%+5 dig.) ±(2.0%+5 dig.)	0.1 µA 1 µA 0.01 mA 0.1 mA 0.001 A 0.01 A
Resistance	400.0 Ω 4.000 kΩ 40.00 kΩ 400.0 kΩ 4.000 MΩ 40.00 MΩ	±(1.2%+2 dig.) ±(1.0%+2 dig.) ±(1.0%+2 dig.) ±(1.0%+2 dig.) ±(1.2%+2 dig.) ±(1.5%+2 dig.)	0.1 Ω 0.001 kΩ 0.01 kΩ 0.1 kΩ 0.001 MΩ 0.01 MΩ
Capacitance	40.00 nF 400.0 nF 4.000 µF 40.00 µF 400.0 µF 4000 µF	±(3.0%+5 dig.) ±(3.0%+5 dig.) ±(3.0%+5 dig.) ±(3.0%+5 dig.) ±(4.0%+5 dig.) unspecified	0.01 nF 0.1 nF 0.001 µF 0.01 µF 0.1 µF 1 µF
Frequency	10.00 Hz ~ 10 MHz	±(0.1%+4 dig.)	0.01 Hz
Temperature °C ¹⁾	-40°C ~ -20°C -20°C ~ 0°C 0°C ~ 100°C 100°C ~ 1000°C	±(8.0%+5 dig.) ±(1.2%+4 dig.) ±(1.2%+3 dig.) ±(2.5%+2 dig.)	1°C 1°C 1°C 1°C
Temperature °F ¹⁾	-40°F ~ 4°F 4°F ~ 32°F 32°F ~ 212°F 212°F ~ 1832°F	±(8.0%+6 dig.) ±(1.2%+5 dig.) ±(1.2%+4 dig.) ±(2.5%+3 dig.)	1°F 1°F 1°F 1°F

¹⁾The included K-type temperature probe can be used for temperatures up to 230°C, do not use it with higher temperatures!

Function	Digital Multimeter UT61B
USB/RS232 Interface	(isolated optical connection)
True RMS (TRMS)
Auto Range
Manual Range
Diode test
Transistor test
Continuity test	(fast reaction time below 0.5 seconds!)
Low battery indication
Relatively measuring
Data hold
Min-Max / Peak hold
Auto power-off
Overload protection	Fuse 1: F500 mA 600 V, ⌀6.3 x 32 mm; Fuse 2: F10 A 600 V, ⌀10.3 x 38 mm
Shockproof Protection
Backlight
"Analogue" Bargraph	(41 steps)
Max. Reading	4000 (3¾ digits)
LCD Size	65 mm x 43 mm
Sampling rate	Approx. 2 times / second

Details	Digital Multimeter UT61B
Battery	9 V Block Battery (included in delivery)
Safety standard	CAT III 1000 V CAT IV 600 V
Dimensions	18.0 cm × 8.7 cm × 4.7 cm (7.09" × 3.43" × 1.85")
Weight without accessories / packaging	370 g (with battery) (0.82 lb)
Weight with accessories / packaging	730 g (1.61 lbs)
Warranty	2 Years
