The UNI-T digital multimeter provides a sophisticated measurement technology at a very good price / performance ratio. Different models cover the entire range, from the good entry-level model to precise measurement devices with a precision of 0.05% deviation.
Besides the quality, the measurement devices distinguish by their ease of use, good legibility of the display and sophisticated measurement functions. UNI-T digital multimeters also fulfill the important details of everyday measuring, such as the almost immediate response of the continuity test, reliable measurement results, and conservative use of the battery. If you have ever worked with a digital multimeter from one of the various cheap manufacturers, you are familiar with problems such as continuity tests taking several seconds, noticeable deviation of measurement results if the battery is low, and rapid battery drain...
| Models | UT61B | UT61C | UT61D | UT61E |
|---|---|---|---|---|
| max. Resolution | 3¾ Digits | 3 5/6 Digits | 3 5/6 Digits | 4½ Digits |
| max. Display | 4.000 | 6.000 | 6.000 | 22.000 |
| max. Sample Rate | 2 Sa/s | 2 Sa/s | 2 Sa/s | 2 Sa/s |
| True RMS |
USB Measurement Possibilities

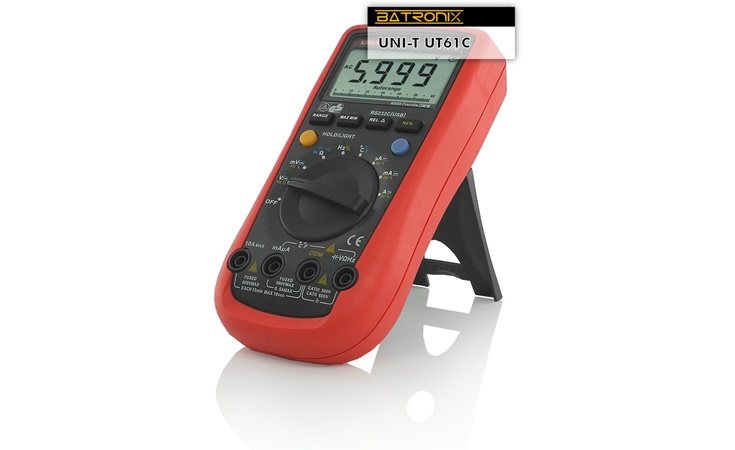

The UNI-T UT61C has a built-in USB / RS232 interface for PC communications. Combined with its software, it allows receiving, recording and performing long time data measurements with graphical visualization.
It can save up to 2 Sa/s, depending on the measurement function selected (DCV, Resistance, Frequency, ...)
| Measurement | Range | Accuracy | Resolution |
|---|---|---|---|
| DC Voltage (DCV) | 60.00 mV 600.0 mV 6.000 V 60.00 V 600.0 V 1000 V | ±(0.8%+3 dig.) ±(0.8%+3 dig.) ±(0.5%+1 dig.) ±(0.5%+1 dig.) ±(0.5%+1 dig.) ±(1.0%+3 dig.) | 0.01 mV 0.1 mV 0.001 V 0.01 V 0.1 V 1 V |
| AC Voltage (ACV) 45 Hz - 1 kHz | 60.0 mV 600.0 mV 6.000 V 60.00 V 600.0 V 750 V | ±(1.2%+5 dig.) ±(1.0%+3 dig.) ±(1.0%+3 dig.) ±(1.0%+3 dig.) ±(1.0%+3 dig.) ±(1.2%+5 dig.) | 0.01 mV 0.1 mV 0.001 V 0.01 V 0.1 V 1 V |
| DC Current (DCA) | 600.0 µA 6000 µA 60.00 mA 600.0 mA 6.000 A 10.00 A | ±(1.0%+3 dig.) ±(1.0%+3 dig.) ±(1.0%+3 dig.) ±(1.0%+3 dig.) ±(1.2%+5 dig.) ±(1.2%+5 dig.) | 0.1 µA 1 µA 0.01 mA 0.1 mA 0.001 A 0.01 A |
| AC Current (ACA) | 600.0 µA 6000 µA 60.00 mA 600.0 mA 6.000 A 10.00 A | ±(1.2%+5 dig.) ±(1.2%+5 dig.) ±(1.5%+5 dig.) ±(1.5%+5 dig.) ±(2.0%+5 dig.) ±(2.0%+5 dig.) | 0.1 µA 1 µA 0.01 mA 0.1 mA 0.001 A 0.01 A |
| Resistance | 600.0 Ω 6.000 kΩ 60.00 kΩ 600.0 kΩ 6.000 MΩ 60.00 MΩ | ±(1.2%+2 dig.) ±(1.0%+2 dig.) ±(1.0%+2 dig.) ±(1.0%+2 dig.) ±(1.2%+2 dig.) ±(1.5%+2 dig.) | 0.1 Ω 0.001 kΩ 0.01 kΩ 0.1 kΩ 0.001 MΩ 0.01 MΩ |
| Capacitance | 40.00 nF 400.0 nF 4.000 µF 40.00 µF 400.0 µF 4000 µF | ±(3.0%+5 dig.) ±(3.0%+5 dig.) ±(3.0%+5 dig.) ±(3.0%+5 dig.) ±(4.0%+5 dig.) unspecified | 0.01 nF 0.1 nF 0.001 µF 0.01 µF 0.1 µF 1 µF |
| Frequency | 10.00 Hz ~ 10 MHz | ±(0.1%+4 dig.) | 0.01 Hz |
| Temperature °C 1) | -40°C ~ -20°C -20°C ~ 0°C 0°C ~ 100°C 100°C ~ 1000°C | ±(8.0%+5 dig.) ±(1.2%+4 dig.) ±(1.2%+3 dig.) ±(2.5%+2 dig.) | 1°C 1°C 1°C 1°C |
| Temperature °F 1) | -40°F ~ 4°F 4°F ~ 32°F 32°F ~ 212°F 212°F ~ 1832°F | ±(8.0%+6 dig.) ±(1.2%+5 dig.) ±(1.2%+4 dig.) ±(2.5%+3 dig.) | 1°F 1°F 1°F 1°F |
1)The included K-type temperature probe can be used for temperatures up to 230°C, do not use it with higher temperatures!
| Function | Digital Multimeter UT61C |
|---|---|
| USB/RS232 Interface | (isolated optical connection) |
| True RMS (TRMS) | |
| Auto Range | |
| Manual Range | |
| Diode test | |
| Transistor test | |
| Continuity test | (fast reaction time below 0.5 seconds!) |
| Low battery indication | |
| Relatively measuring | |
| Data hold | |
| Min-Max / Peak hold | |
| Auto power-off | |
| Overload protection | Fuse 1: F500 mA 600 V, ⌀6.3 x 32 mm; Fuse 2: F10 A 600 V, ⌀10.3 x 38 mm |
| Shockproof Protection | |
| Backlight | |
| "Analogue" Bargraph | (61 steps) |
| Max. Reading | 6000 (3 5/6digits) |
| LCD Size | 65 mm x 43 mm |
| Sampling rate | Approx. 2 times / second |
| Details | Digital Multimeter UT61C |
|---|---|
| Battery | 9 V Block Battery (included in delivery) |
| Safety standard | CAT III 1000 V CAT IV 600 V |
| Dimensions | 18.0 cm × 8.7 cm × 4.7 cm (7.09" × 3.43" × 1.85") |
| Weight without accessories / packaging | 370 g (with battery) (0.82 lb) |
| Weight with accessories / packaging | 730 g (1.61 lbs) |
| Warranty | 2 Years |
