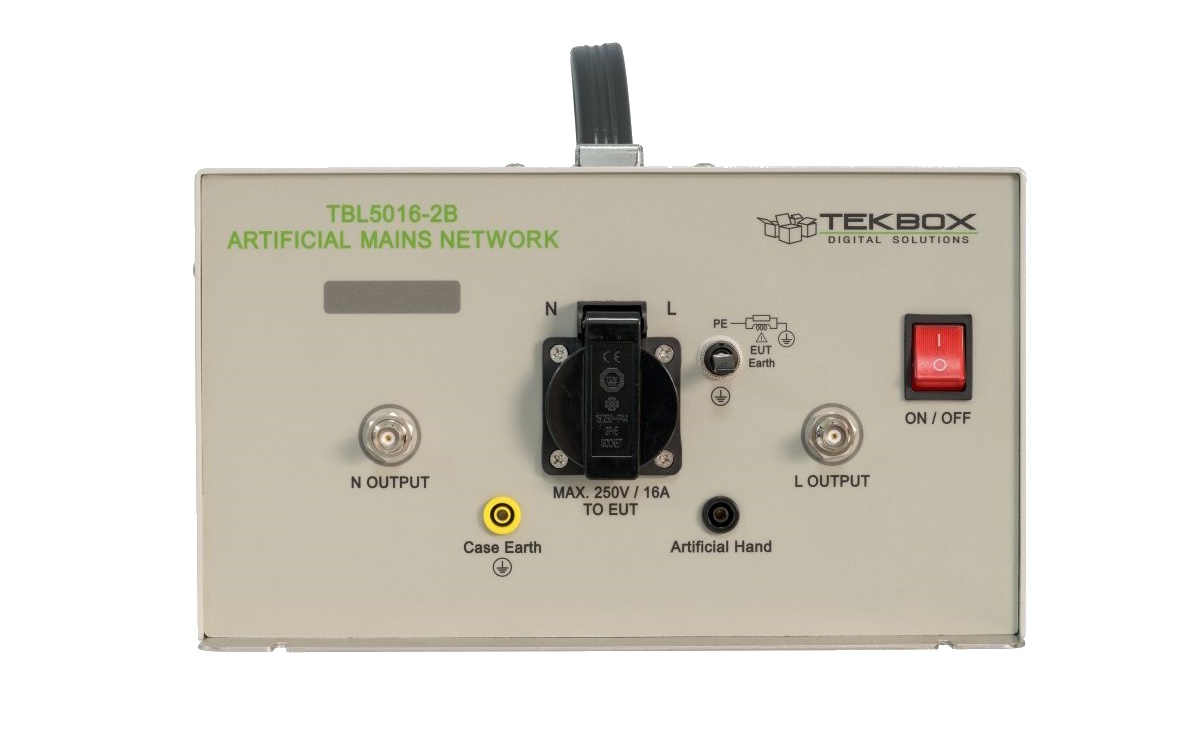

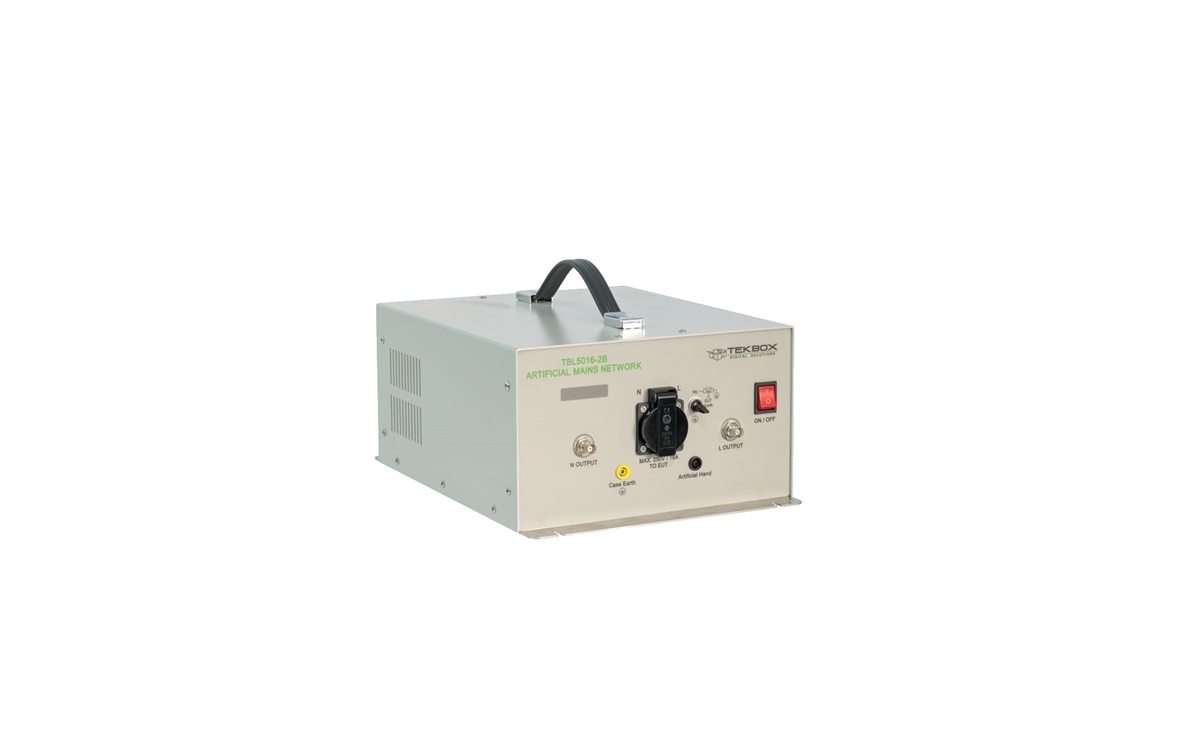

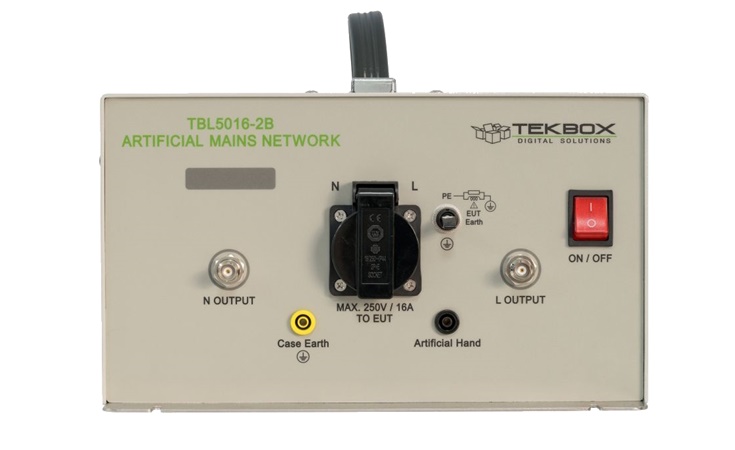

The TBL5016-2B is a Line Impedance Stabilization Network designed to measure conducted emissions on power supply lines in the 9kHz to 30MHz frequency range, as specified by the CISPR 16-1-2 standard. The device is designed for testing single phase, AC-powered equipment with supply voltages up to maximum 2 50V and 16 A. Conducted noise can be measured on the phase and on the neutral conductor. The TBL5016-2B features separate measurement outputs for each channel to enable connectivity for a common mode / differential mode separator (LISN Mate), a PE switch to mimic extension cables and an artificial hand connection.
The device is available with country-specific EUT connectors.
SPECIFICATIONS
- Frequency range: 9 kHz to 30 MHz
- Impedance: 50 Ω / (50 µH + 5 Ω)
- Artificial hand: 220 pF + 511 Ω
- Switchable PE: 50 Ω / 50 µH
- Independent BNC outputs for line and neutral to provide connectivity for CM/DM separators (LISN Mate)
- Air core inductors
- Line voltage: max. 250V / 50 – 60 Hz
- Max. current: 16 A @ 23 °C
- DUT socket: country specific
- Measurement connector: 50 Ω BNC

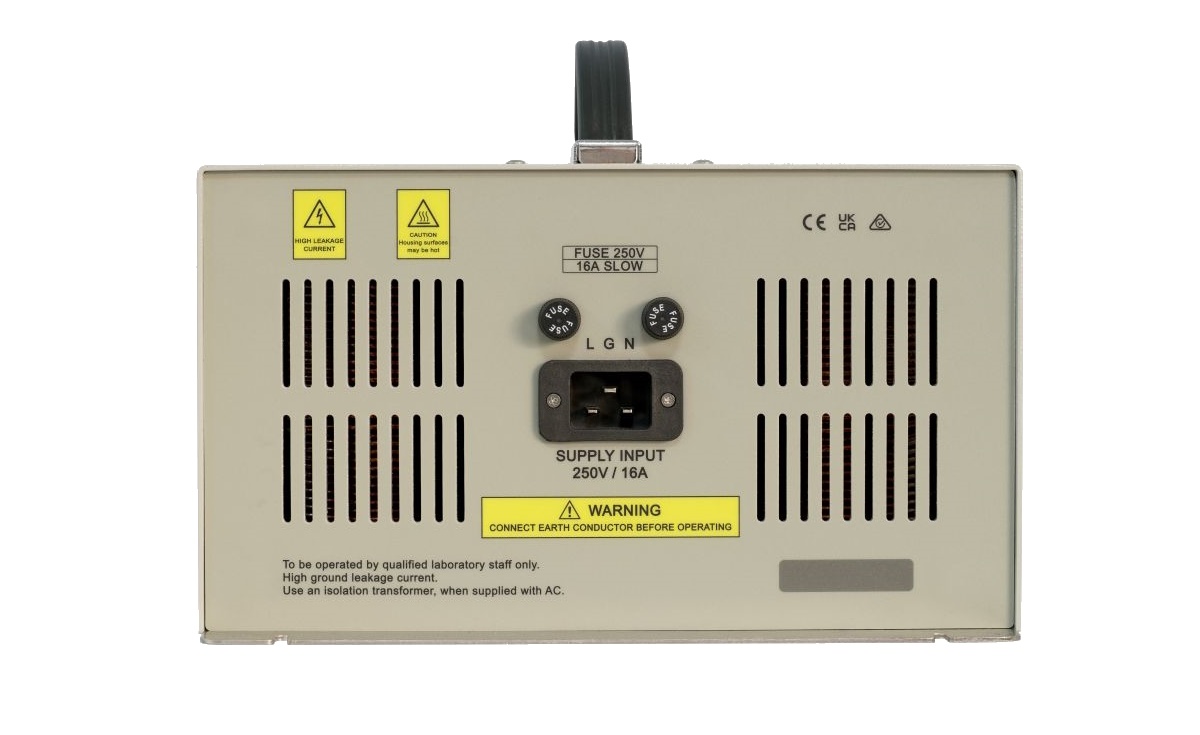

- Power connector: IEC 60320 C19
- Operating Temperature Range: +5 °C … + 40 °C; 5 % to 80 % RH
- Dimensions: 35 cm x 18 cm x 41 cm
- Weight: 10.2 kg
APPLICATION
- EMC pre-compliance testing of conducted noise
Model Overview
| Model | Impedance | Frequency Range | Path | Max. Current | Max. Voltage | Additional Features |
|---|---|---|---|---|---|---|
| TBL00705-2 | 0.7 µH//50 Ω | 30 Hz – 500 MHz | 2 | 5 A | 60 V nominal, Component rating: 100 V | 400 mΩ serial resistor |
| ТВL0110-2 | 1 µH//50 Ω | 30 Hz – 500 MHz | 2 | 10 A | 60 V nominal, Component rating: 100 V | 100 mΩ serial resistor |
| TBL0225-2 | 2 µH//50 Ω | 10 Hz – 200 MHz | 2 | 25 A | 60 V nominal, Component rating: 100 V | 100 mΩ serial resistor |
| TBL0510-1 | 5 µH//50 Ω | 10 kHz – 400 MHz | 1 | 10 A | 60 V nominal, Component rating: 200 V | |
| TBL0550-1 | 5 µH//50 Ω | 150 kHz – 108 MHz | 1 | 50 A | 60 V nominal, Component rating: 250 V | |
| TBL0550-1B | 5 µH//50 Ω | 10 kHz – 400 MHz | 1 | 50 A | 0 – 250 V AC @ 50/60 Hz, 130 V AC @ 400 Hz, 250 V DC 450 CV DC (components) | Can be jumpered to various standards |
| TBL05100-1C | 5 µH//50 Ω | 10 kHz – 400 MHz | 1 | 100 A | 0 – 500 V AC @ 50/60 Hz, 250 V AC @ 400 Hz, 1500 V DC (components) | Can be jumpered to various standards |
| Model | Impedance | Frequency Range | Path | Max. Current | Max. Voltage | Additional Features |
|---|---|---|---|---|---|---|
| TBL5016-1 | 50µH//50Ω (50µH+5Ω)//50Ω | 150 kHz – 30 MHz | 1 | 16A | 250V | can be jumpered 50µH//50Ω or (50µH+5Ω)//50Ω no 250uH pre-filter |
| TBL50100-1 | 50µH//50Ω (50µH+5Ω)//50Ω | 150 kHz – 30 MHz | 1 | 100A | 250V | can be jumpered 50µH//50Ω or (50µH+5Ω)//50Ω no 250uH pre-filter |
| TBL5008-2B | (50µH+5Ω)//50Ω | 9 kHz – 30 MHz | 2 | 8A | 250V AC 50/60 Hz or DC | separate RF outputs enabling LISN-Mate connectivity; Artificial hand connection PE switchable: 50Ω//50µH |
| TBL5008-2C | (50µH+5Ω)//50Ω | 9 kHz – 30 MHz | 2 | 8A | 250V AC 50/60 Hz or DC | Filter/Limiter/Attenuator switchable Artificial hand connection PE switchable: 50Ω//50µH |
| TBL5016-2B | (50µH+5Ω)//50Ω | 9 kHz – 30 MHz | 2 | 16A | 250V AC 50/60 Hz or DC | separate RF outputs enabling LISN-Mate connectivity; Artificial hand connection PE switchable: 50Ω//50µH |
| TBL5016-2C | (50µH+5Ω)//50Ω | 9 kHz – 30 MHz | 2 | 16A | 250V AC 50/60 Hz or DC | Filter/Limiter/Attenuator switchable Artificial hand connection PE switchable: 50Ω//50µH |
| TBL5016-3 | (50µH+5Ω)//50Ω | 9 kHz – 30 MHz | 3 | 16A | 465V/270V | Artificial hand connection PE switchable: 50Ω//50µH |
| TBL5032-3 | (50µH+5Ω)//50Ω | 9 kHz – 30 MHz | 3 | 32A | 465V/270V | Artificial hand connection PE switchable: 50Ω//50µH |
| TBL5063-3 | (50µH+5Ω)//50Ω | 9 kHz – 30 MHz | 3 | 63A | 690V/400V 50Hz/60Hz | Artificial hand connection PE switchable: 50Ω//50µH |
| Model | Impedance | Frequency Range | Path | Max. Current | Max. Voltage | Additional Features |
|---|---|---|---|---|---|---|
| TBLM2 | | 150 kHz – 110 MHz | | | | LISN-Mate |
| TBLDC32-2 | 150 Ohm | 9 kHz – 30 MHz | 2 | 32A | 1000V DC | 150 Ohm DC LISN A, B, Common-Mode Differential-Mode operation |
| TBLVHF-B | 50 Ohm +-10% | 30 MHz – 300 MHz | 2 | 16A | 250V DC – 400 Hz | Balanced VHF LISN |
| TBISN-T4 | 150 Ohm | 150 kHz – 30 MHz | 2 balanced pairs | 250mA | 60V AC, 100V DC | 2 pcs D-Sub 25 to RJ45 adapter |
Downloads
Datasheet
TBL5016-2B Manual / Data sheet
Language: English
Version: V1.1
File Size: 4.27 MiB
Release Date: 10.03.2025
Guide
EMC pre compliance testing guide EN
Language: English
Version: V1.2
File Size: 406.81 KiB
Release Date: 30.04.2018
This document focusses on measurement equipment and methods, limits and the relevant standards of conducted noise measurement on the power supply lines of products. The document tries to reduce the details to those necessary to carry out pre-compliance measurements in house with modest equipment.
EMC pre compliance testing guide German
Language: German
Version: V1.7
File Size: 402.40 KiB
Release Date: 12.10.2022
This document focusses on measurement equipment and methods, limits and the relevant standards of conducted noise measurement on the power supply lines of products. The document tries to reduce the details to those necessary to carry out pre-compliance measurements in house with modest equipment.
