Siglent SDS2104X Plus

Name: Siglent SDS2104X Plus
Brand: Siglent
SKU: 723497645904
Availability: InStock
Rating: 5.0 (18 reviews)

SDS2104X Plus Oscilloscope by Siglent, Front view

Series SDS2000X Plus Oscilloscope by Siglent, Rear view

Series SDS2000X Plus Oscilloscope by Siglent

18 Reviews

4 channel oscilloscope with 100 MHz bandwidth, 2 GSa/s and 200 Mpts memory depth and a 25.7 cm LCD touch-display (1024x600 pixel). Serial decoders for I²C, SPI, RS232/UART, CAN and LIN are already included! Upgradable to a MSO with a 16 channel logic analyzer and 1 channel waveform generator.

SDS2000X Plus Decoder bundle
Get the SDS2000X Plus decoder bundle for free with the purchase of a new device. This bundle contains: SDS-2000XP-CANFD, SDS-2000XP-FlexRay, SDS-2000XP-IIS, SDS-2000XP-1553B, SDS-2000XP-SENT and SDS-2000XP-Manch. While stocks last!

SDS2104X Plus special promotion
Get a free bandwidth upgrade (200 MHz) with your new SDS2104X plus oscilloscope. While stocks last!

3 years warranty

No.: SDS2104X Plus
EAN: 723497645904

Free shipping within Germany and to our neighboring EU countries! Shipping charges apply to all other countries.

In stock

1,199.- € net (VAT Details)

1,426.81 € incl. 19% VAT

Description

The Siglent SDS2000X Plus Series oscilloscopes are high quality storage oscilloscopes with two or four channels. They offer a sampling rate of up to 2 GSa/s and a bandwidth of up to 500 MHz, as well as a large memory depth of 200 Mpts.

The Siglent SDS2102X Plus has a sophisticated and easy-to-use user interface that offers a wide range of comfort functions for all measurement tasks.

The menu navigation is intuitive and multilingual.

The extra large and high resolution 10.1" TFT colour screen (1024x600 pixels) is very easy to read. Intelligent fade-in and fade-out of information means that a maximum area is always available for signal display.

Signal waveforms, FFT display and other functions can be displayed simultaneously.

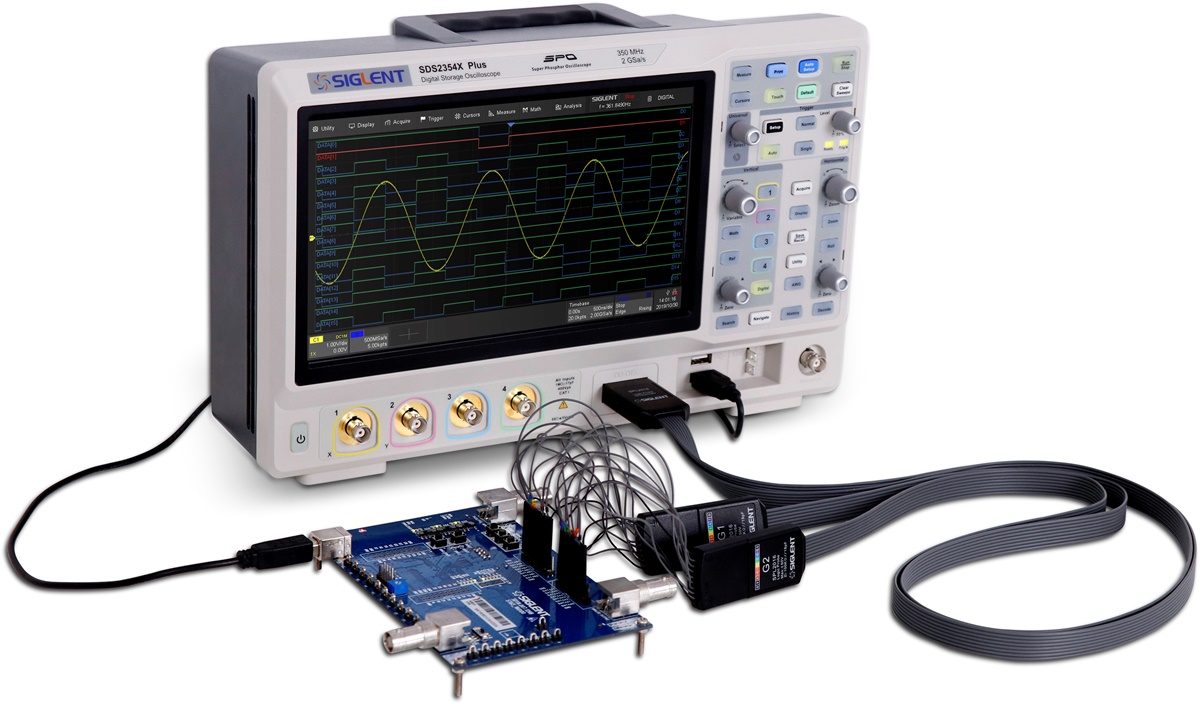

The Siglent SDS2102X Plus can be upgraded with a 50 MHz arbitrary function generator or a 16 channel logic analyser.

Features	SDS2000X Plus
Channel	2 - 4
Bandwidth	100 MHz - 500 MHz
Sample rate	2 channel with each 2 GSa/s 4 channel with each 1 GSa/s
Waveform capture rate	480.000 wfms/s
Memory depth	2 channel with each 200 Mpts 4 channel with each 100 Mpts

SDS2000X Plus	Bandwidth	Channel	Logic Analyzer	Waveform generator
SDS2102X Plus	100 MHz (upgradable to 350 MHz)	2	Option	Option
SDS2104X Plus	100 MHz (upgradable to 500 MHz)	4	Option	Option
SDS2204X Plus	200 MHz (upgradable to 500 MHz)	4	Option	Option
SDS2354X Plus	350 MHz (upgradable to 500 MHz)	4	Option	Option

You will find the specifications of the SDS2000X Plus series here.

Special features

Low noise floor

Low noise floor: Only 80 µV rms at 500 MHz bandwidth.

Up to 120.000 wfm/s waveform update rate

With a waveform update rate of up to 120.000 wfms/s, the Siglent SDS2102X Plus can easily capture low-probability events. In Sequence mode the waveform capture rate can reach 500.000 wfms/s.

Record length of up to 200 Mpts/ch

Utilizing a hardware-based Zoom technique and record length up to 200 Mpts, users can select a slower timebase without compromising the sample rate and then quickly zoom in to focus on the area of interest.

10-bit mode

10-bit mode combined with Zoom shows you more details and less noise on the waveform.

Trigger zone

Trigger Zone is available for advanced triggering.

Measurement for all relevant parameters and parameter statistics

Parameter measurements includes 4 categories: vertical, horizontal, miscellaneous and channel delay providing a total of 50+ different types of measurements. Measurements can be performend within a specified gate period. Measurements on math, reference and history frames are supported.

Advanced math functions

Hardware accelerated FFT up to 2 Mpts. This provides high frequency resolution with fast refresh rate. The FFT function also supports variety of window functions so that it can adapt to different spectrum measurement needs. three modes (normal, average and max hold) can satisfy different requirements for observing the power spectrum. Auto peak detection and markers are supported.

History mode

History functions records up to 90.000 triggered waveforms (frames). This is done continuously in the background, so the history waveforms can be played back at any time to find and analyze past events. Serial decode, zoom and cursors measurements can be used.

Sequence Mode

Segmented memory collection will store the waveform into multiple memory segments (up to 90.000) and each segment will store a triggered waveform together with the dead time information. The interval between segments can be as small as 2 µs. All segments can be played back at an arbitrary frame rate using the history function.

Search and navigate

The Siglent SDS2102X Plus can find events within a record and history based on user specified trigger conditions. Navigate browses through events flagged by search, plays back history frames or continuosly moves the delay position on long records (useful in zoom view).

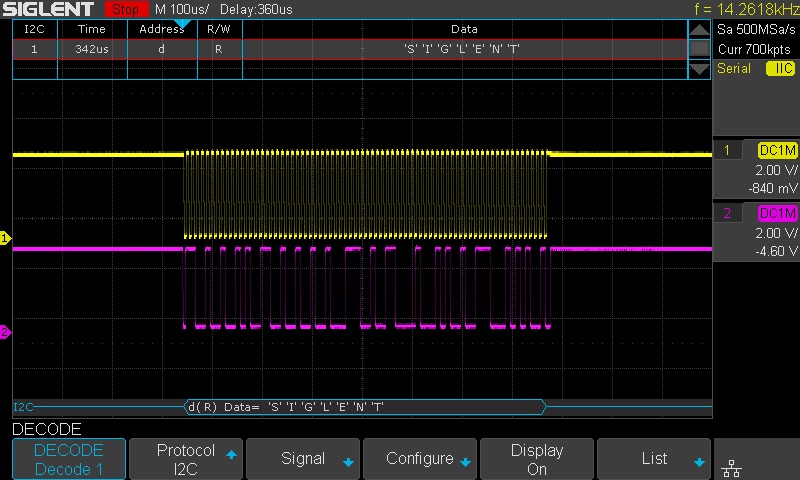

Serial bus decode

In addition to the decoder lanes correlated to the waveform, bus protocol information can be displayed in tabular form. I2C, SPI, UART, CAN, LIN, CAN FD, FlexRay, I2S and MIL-STD-1553B are supported.

Hardware-based high speed mask test function

The Siglent SDS2102X Plus utilizes a hardware-based mask test function, performing up to 80.000 Pass / Fail decisions each second. It is easy to generate user defined test templates which the signal trace can be continuously compared to. The failed frames can be automatically stored as history frames or screen shots, making it suitable for long term signal monitoring or automated production line testing.

Mask editor

Built-in mask editor application helps to create custom masks.

Power analysis

The power analysis option provides a full suite of power measurements and analysis, thus improving the efficiency of measurement in switching power supplies and power device designs.

50 MHz built-in waveform generator

The built-in waveform generator can output waveforms with up to 50 MHz frequency and +-3 V amplitude. Six basic waveforms together with multiple types of predefined waveforms and as user defined arbitrary waveforms are supported.
