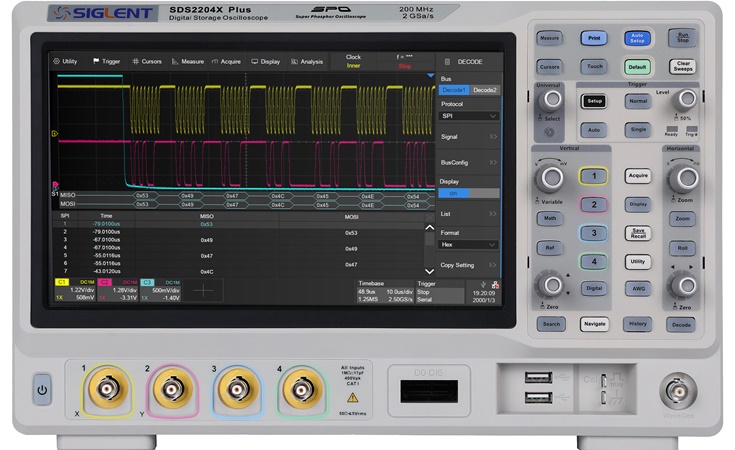

The Siglent SDS2000X Plus Series oscilloscopes are high quality storage oscilloscopes with two or four channels. They offer a sampling rate of up to 2 GSa/s and a bandwidth of up to 500 MHz, as well as a large memory depth of 200 Mpts.
The Siglent SDS2102X Plus has a sophisticated and easy-to-use user interface that offers a wide range of comfort functions for all measurement tasks.
The menu navigation is intuitive and multilingual.
The extra large and high resolution 10.1" TFT colour screen (1024x600 pixels) is very easy to read. Intelligent fade-in and fade-out of information means that a maximum area is always available for signal display.
Signal waveforms, FFT display and other functions can be displayed simultaneously.
The Siglent SDS2102X Plus can be upgraded with a 50 MHz arbitrary function generator or a 16 channel logic analyser.
| Features | SDS2000X Plus |
|---|---|
| Channel | 2 - 4 |
| Bandwidth | 100 MHz - 500 MHz |
| Sample rate | 2 channel with each 2 GSa/s 4 channel with each 1 GSa/s |
| Waveform capture rate | 480.000 wfms/s |
| Memory depth | 2 channel with each 200 Mpts 4 channel with each 100 Mpts |
| SDS2000X Plus | Bandwidth | Channel | Logic Analyzer | Waveform generator |
|---|---|---|---|---|
| SDS2102X Plus | 100 MHz (upgradable to 350 MHz) | 2 | Option | Option |
| SDS2104X Plus | 100 MHz (upgradable to 500 MHz) | 4 | Option | Option |
| SDS2204X Plus | 200 MHz (upgradable to 500 MHz) | 4 | Option | Option |
| SDS2354X Plus | 350 MHz (upgradable to 500 MHz) | 4 | Option | Option |
You will find the specifications of the SDS2000X Plus series here.
Special features
Low noise floor
Low noise floor: Only 80 µV rms at 500 MHz bandwidth.
Up to 120.000 wfm/s waveform update rate
With a waveform update rate of up to 120.000 wfm/s, the Siglent SDS2204X Plus can easily capture low-probability events. In Sequence mode the waveform capture rate can reach 500.000 wfm/s.
Record length of up to 200 Mpts/ch
Utilizing a hardware-based Zoom technique and record length up to 200 Mpts, users can select a slower timebase without compromising the sample rate and then quickly zoom in to focus on the area of interest.
10-bit mode
10-bit mode combined with Zoom shows you more details and less noise on the waveform.
Trigger zone
Trigger Zone is available for advanced triggering.
Measurement for all relevant parameters and parameter statistics
Parameter measurements includes 4 categories: vertical, horizontal, miscellaneous and channel delay providing a total of 50+ different types of measurements. Measurements can be performend within a specified gate period. Measurements on math, reference and history frames are supported.
Advanced math functions
Hardware accelerated FFT up to 2 Mpts. This provides high frequency resolution with fast refresh rate. The FFT function also supports variety of window functions so that it can adapt to different spectrum measurement needs. three modes (normal, average and max hold) can satisfy different requirements for observing the power spectrum. Auto peak detection and markers are supported.
History mode
History functions records up to 90.000 triggered waveforms (frames). This is done continuously in the background, so the history waveforms can be played back at any time to find and analyze past events. Serial decode, zoom and cursors measurements can be used.
Sequence Mode
Segmented memory collection will store the waveform into multiple memory segments (up to 90.000) and each segment will store a triggered waveform together with the dead time information. The interval between segments can be as small as 2 µs. All segments can be played back at an arbitrary frame rate using the history function.
Search and navigate
The Siglent SDS2204X Plus can find events within a record and history based on user specified trigger conditions. Navigate browses through events flagged by search, plays back history frames or continuosly moves the delay position on long records (useful in zoom view).
Serial bus decode
In addition to the decoder lanes correlated to the waveform, bus protocol information can be displayed in tabular form. I2C, SPI, UART, CAN, LIN, CAN FD, FlexRay, I2S and MIL-STD-1553B are supported.
Hardware-based high speed mask test function
The Siglent SDS2204X Plus utilizes a hardware-based mask test function, performing up to 80.000 Pass / Fail decisions each second. It is easy to generate user defined test templates which the signal trace can be continuously compared to. The failed frames can be automatically stored as history frames or screen shots, making it suitable for long term signal monitoring or automated production line testing.
Mask editor
Built-in mask editor application helps to create custom masks.
Power analysis
The power analysis option provides a full suite of power measurements and analysis, thus improving the efficiency of measurement in switching power supplies and power device designs.
50 MHz built-in waveform generator
The built-in waveform generator can output waveforms with up to 50 MHz frequency and +-3 V amplitude. Six basic waveforms together with multiple types of predefined waveforms and as user defined arbitrary waveforms are supported.Downloads
Datasheet
SDS2000X Plus Data sheet
Language: English
Version: E01B
File Size: 2.09 MiB
Release Date: 25.03.2021
Manual
SDS2000X Plus manual
Language: English
Version: EN01C
File Size: 14.50 MiB
Release Date: 07.05.2021
SDS2000X Quick start guide
Language: English
File Size: 4.41 MiB
Release Date: 16.01.2020
