Name: Siglent SDS3034X HD
Brand: Siglent
SKU: 726634158893
Availability: InStock

Innovative Tools. Excellent Service.

service@batronix.com

+49 4342 90786-30

Private Customer | Germany | EN

Holiday Shipping and Support Update

Our office will be closed for the Christmas holidays from 24th December to 2nd January 2026. We will be back from the 5th of January.
We wish you a Merry Christmas and a Happy New Year!

Description

The SDS3000X HD oscilloscopes are available in bandwidths of 350 MHz - 1 GHz, have a maximum sample rate of 4 GSa/s, 12-bit analog-digital converters, maximum record length of up to 400 Mpts, and display up to 4 analog channels + 16 digital channels mixed signal analysis ability.

The Siglent SDS3034X HD employs Siglent’s SPO technology with a maximum waveform capture rate of up to 200,000 wfms/s normal mode, (up to 890,000 wfms/s in sequence mode), 256-level intensity grading display function plus a color temperature display mode.

It also employs an innovative digital trigger system with high sensitivity and low jitter. The trigger system supports multiple powerful triggering modes including serial bus triggering. History waveform recording, Sequence acquisition, Search and Navigate functions allow for extended waveform records to be captured, stored, and analyzed.

An impressive array of measurement and math capabilities, options for a 50 MHz arbitrary waveform generator, as well as serial decoding are also features of the Siglent SDS3034X HD.

The 25,7 cm display capacitive touch screen supports multi-touch gestures, with the addition of user-friendly one-button design for most commonly used functions, can greatly improve the operation efficiency of the Siglent SDS3034X HD.

Features	SDS3000X HD
Channel	4
Bandwidth	350 MHz - 1 GHz
Sample rate	Single channel mode: 4 GSa/s Dual channel mode: 2 GSa/s
Waveform capture rate	200,000 wfms/s (890,000 wfms/s Sequence Mode)
Memory depth	Single channel mode: 400 Mpts Dual channel mode: 200 Mpts Four channel mode: 100 Mpts

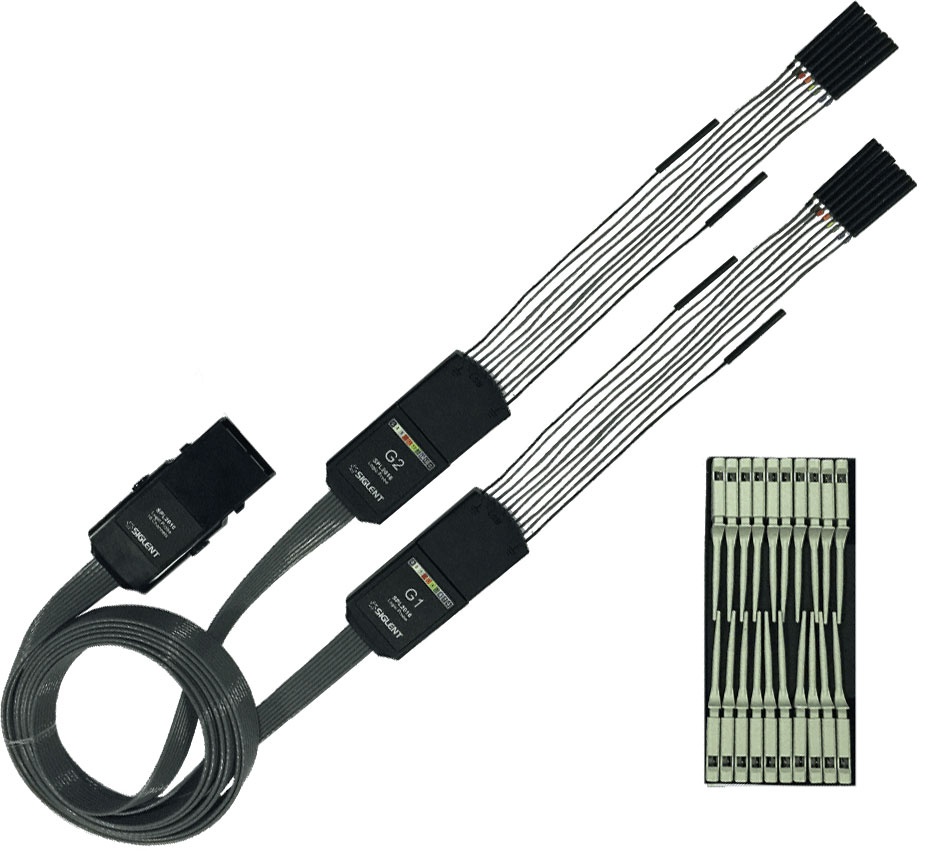

SDS3000X HD	Bandwidth	Channel	Logic Analyzer	Waveform generator
SDS3034X HD	350 MHz (upgradable to 1 GHz)	4	Option	Option
SDS3054X HD	500 MHz (upgradable to 1 GHz)	4	Option	Option
SDS3104X HD	1 GHz	2	Option	Option

You will find the specifications of the SDS3000X HD series here.

Special features

12-bit High Resolution

12-bit resolution shows you more details and less noise on the waveform.

Low noise floor

Low noise floor: Only 70 µV rms at 200 MHz bandwidth.

Up to 890.000 wfms/swaveform update rate

With a waveform update rate of up to 200.000 wfms/s, the Siglent SDS3034X HD can easily capture low-probability events. In Sequence mode the waveform capture rate can reach 890.000 wfms/s.

Record length of up to 400 Mpts/ch

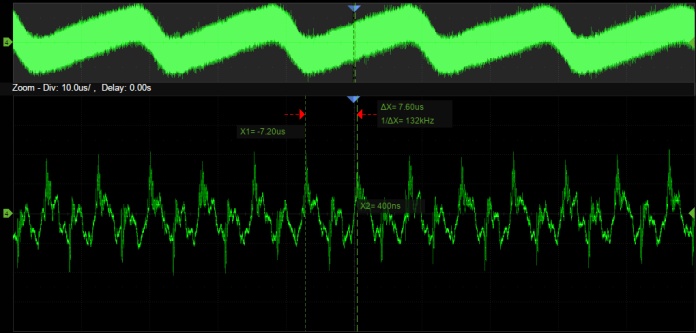

Utilizing a hardware-based Zoom technique and record length up to 400 Mpts, users can select a slower timebase without compromising the sample rate and then quickly zoom in to focus on the area of interest.

Zonentrigger

Trigger Zone is available for advanced triggering.

Measurement for all relevant parameters and parameter statistics

Parameter measurements includes 4 categories: vertical, horizontal, miscellaneous and channel delay providing a total of 50+ different types of measurements. Measurements can be performend within a specified gate period. Measurements on math, reference and history frames are supported.

Advanced math functions

Hardware accelerated FFT up to 4 Mpts. This provides high frequency resolution with fast refresh rate. The FFT function also supports variety of window functions so that it can adapt to different spectrum measurement needs. three modes (normal, average and max hold) can satisfy different requirements for observing the power spectrum. Auto peak detection and markers are supported.

History mode

History functions records up to 80,000 triggered waveforms (frames). This is done continuously in the background, so the history waveforms can be played back at any time to find and analyze past events. Serial decode, zoom and cursors measurements can be used.

Sequence Mode

Segmented memory collection will store the waveform into multiple memory segments (up to 80,000) and each segment will store a triggered waveform together with the dead time information. The interval between segments can be as small as 1.12 µs. All segments can be played back at an arbitrary frame rate using the history function.

Search and navigate

The Siglent SDS3034X HD can find events within a record and history based on user specified trigger conditions. Navigate browses through events flagged by search, plays back history frames or continuosly moves the delay position on long records (useful in zoom view).

Serial bus decode

In addition to the decoder lanes correlated to the waveform, bus protocol information can be displayed in tabular form. tabular form. I2C, SPI, UART, CAN, LIN, CAN FD, FlexRay, I2S, MIL-STD-1553B, SENT, Manchester and ARINC429 are supported.

Hardware-based high speed mask test function

The Siglent SDS3034X HD utilizes a hardware-based mask test function, performing up to 28,000 Pass / Fail decisions each second. It is easy to generate user defined test templates which the signal trace can be continuously compared to. The failed frames can be automatically stored as history frames or screen shots, making it suitable for long term signal monitoring or automated production line testing.

Mask editor

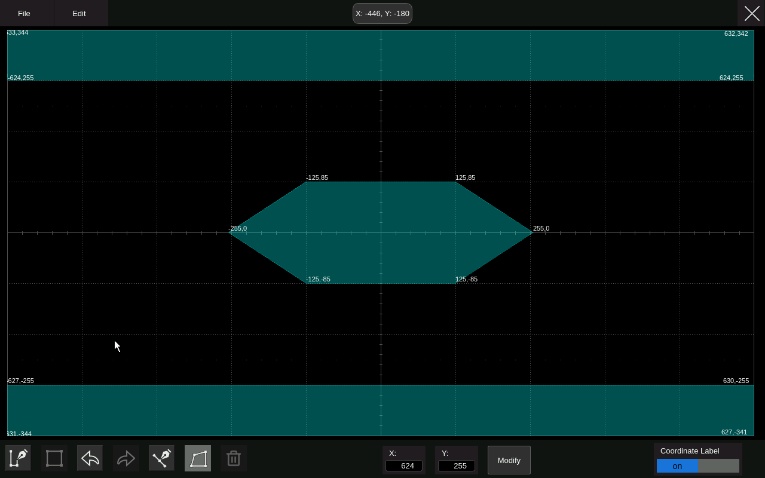

Built-in mask editor application helps to create custom masks.

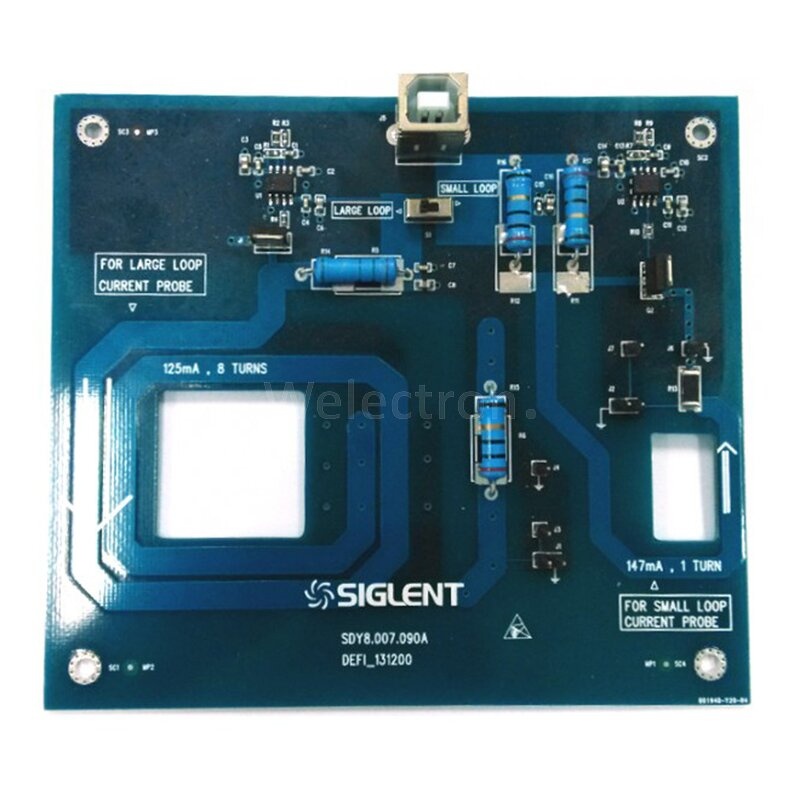

Power analysis

The power analysis option provides a full suite of power measurements and analysis, thus improving the efficiency of measurement in switching power supplies and power device designs.

External 25 MHz waveform generator SAG1021I

External waveform generator (hardware option) that can output waveforms with up to 25 MHz frequency and +-3 V amplitude. Six basic waveforms together with multiple types of predefined waveforms and as user defined arbitrary waveforms are supported.
