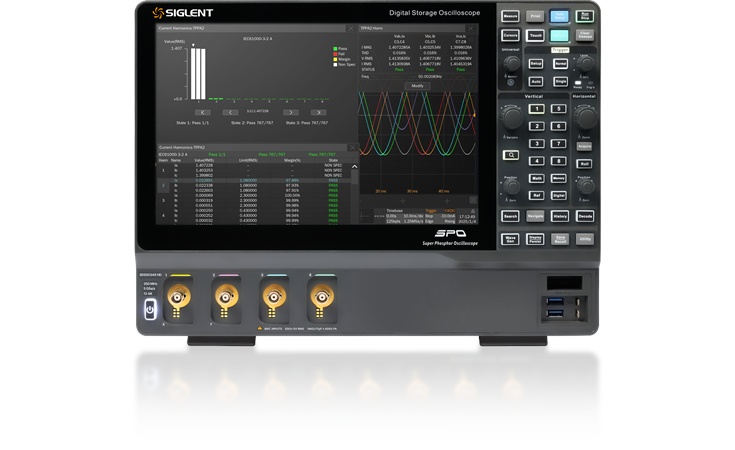

The Siglent SDS5000X HD series oscilloscopes are high-quality storage oscilloscopes with 4, 6 or 8 channels. The company offers a sampling rate. The equipment has a sampling rate of up to 5 GSa/s, a 12-bit A/D converter, a bandwidth of up to 1 GHz, and a memory depth of up to 2.5 Gpts.
The Siglent SDS5034X HD operating system has been meticulously designed to be user-friendly, while also offering a range of advanced features to enhance convenience for all users.
Please find below a list of measurement tasks. The menu navigation is intuitive and multilingual.
The 30.73 cm touch display (1200 x 800 pixels) is highly legible, and the intelligent fade-in and fade-out of information ensures that the maximum area is always available for signal display. The signal curves, the FFT display and the other functions can be shown simultaneously on the display.
The device can be complimented by an external arbitrary function generator(from Siglent) and a 16-channel logic analyser.
Decoders for I2C, SPI, UART, CAN, LIN are already included, CAN FD, FlexRay, I2S, MIL-STD-1553B, SENT, Manchester, ARINC429 can be retrofitted via software licence.
Common Features
| Features | SDS5000X HD |
|---|---|
| Channels | 4, 6 or 8; plus 16 digital channels (optional) |
| Bandwidth | 350 MHz / 500 MHz / 1 GHz (except the model with 1 GHz can be upgraded at a later date) |
| Sample rate (max) | 5 GSa/s (quarter channel/half channel mode) 2.5 GSa/s (full channel mode) |
| Waveform capture rate (max) | Normal mode: Up to 160,000 wfm/s；Sequence mode: Up to 650,000 wfm/s |
| Memory depth | 2.5 Gpts/ch (quarter channel mode) 1 Gpts/ch (half channel mode) 500 Mpts/ch (full channel mode) |
Models available
| SDS5000X HD | Bandwidth (upgradeable up to) | Channels | Logic analyser | Function generator |
|---|---|---|---|---|
| SDS5034X HD | 350 MHz (1 GHz) | 4 | option | external |
| SDS5054X HD | 500 MHz (1 GHz) | 4 | option | external |
| SDS5104X HD | 1 GHz | 4 | option | external |
| SDS5036X HD | 350 MHz (1 GHz) | 6 | option | external |
| SDS5056X HD | 500 MHz (1 GHz) | 6 | option | external |
| SDS5106X HD | 1 GHz | 6 | option | external |
| SDS5038X HD | 350 MHz (1 GHz) | 8 | option | external |
| SDS5058X HD | 500 MHz (1 GHz) | 8 | option | external |
| SDS5108X HD | 1 GHz | 8 | option | external |
Please find further technical specifications in the SDS5000X HD data sheet.
Special features
12-bit High Resolution
12-bit resolution shows you more details and less noise on the waveform.
Low noise floor
Low noise floor: Only 140 µV rms at 1 GHz bandwidth.
Up to 160.000 wfm/s waveform update rate
With a waveform update rate of up to 160,000 wfm/s, the Siglent SDS5034X HD can easily capture low-probability events. In Sequence mode the waveform capture rate can reach 650,000 wfm/s.
Record length of up to 2.5 Gpts
Using hardware-based Zoom technique and record length of up to 2.5 Gpts, users can select a slower timebase without compromising the sample rate, and then quickly zoom in to focus on the area of interest
Multiple trigger functions
Edge, Slope, Pulse, Video, Windows, Runt, Interval, Dropout, Pattern, Qualified, Nth edge, Setup/hold, Delay and serial trigger
Zonentrigger
Zone Trigger is available for advanced triggering. Combine spatial triggering with common trigger modes to isolate signals of interest
Measurement for all relevant parameters and parameter statistics
Parameter measurements includes 4 categories: vertical, horizontal, miscellaneous and channel delay providing a total of 50+ different types of measurements. Measurements can be performend within a specified gate period. Measurements on math, reference and history frames are supported.
Advanced math functions
In addition to the traditional (+, -, X, /) operations, FFT, Filter, integration, differential, square root, and more are supported. Formula Editor is available for more complex operations. 8 math traces are available.
Deep Memory FFT
FFT supports up to 8 Mpts operation. This provides high- frequency resolution with a fast refresh rate. The FFT function also supports a variety of window functions so that it can adapt to different spectrum measurement needs. Three modes (Normal, Average, and Max hold) can satisfy different requirements for observing the power spectrum. Auto peak detection and markers are supported.
History mode
History function can record up to 170,000 frames of waveforms. The recording is executed automatically so that the customer can playback the history waveforms at any time to observe unusual events and quickly locate the area of interest using the cursors or measurements. The failed frames of the Mask Test can be stored as history
Sequence Mode
Segmented memory collection will store the waveform into multiple memory segments (up to 170,000) and each segment will store a triggered waveform as well the dead time information. The interval between segments can be as small as 1.5 μs. All of the segments can be played back using the History function
Search and navigate
The oscilloscope can search events specified by the user in a frame based on hardware. Events flagged by the Search can be recalled automatically using Navigate. It can also navigate by time (delay position) and history frames
Serial bus decode
Display the decoded characters through the events list. Bus protocol information can be quickly and intuitively displayed in tabular form. I2C, SPI, UART, CAN, LIN, CAN FD, FlexRay, I2S, MIL-STD-1553B, SENT, Manchester, and ARINC429 are supported
Hardware-based high speed mask test function
The oscilloscope utilizes a hardware-based Mask Test function, performing up to 80,000 Pass / Fail decisions each second. It is easy to generate user-defined test templates to provide trace mask comparisons, making it suitable for long-term signal monitoring or automated production line testing
Mask editor
Built-in mask editor application helps to create custom masks.
Power analysis (optional)
The Power Analysis and TPPA (3-phase Power Analysis) options provides a full suite of power measurements and analysis, which greatly improve the measurement efficiency in switching power supplies and power devices design. Combining the TPPA option with the 6/8 channels oscilloscope, high- voltage differential probes and current probes, it provides a complete solution of 3-phase power analysis
Bode Plot
The oscilloscope can control the SIGLENT isolated USB AWG module or a stand-alone SIGLENT SDG generator, to scan the amplitude and phase-frequency response of the DUT, and display the data as a Bode Plot. This makes it possible to replace expensive network analyzers in some applications
