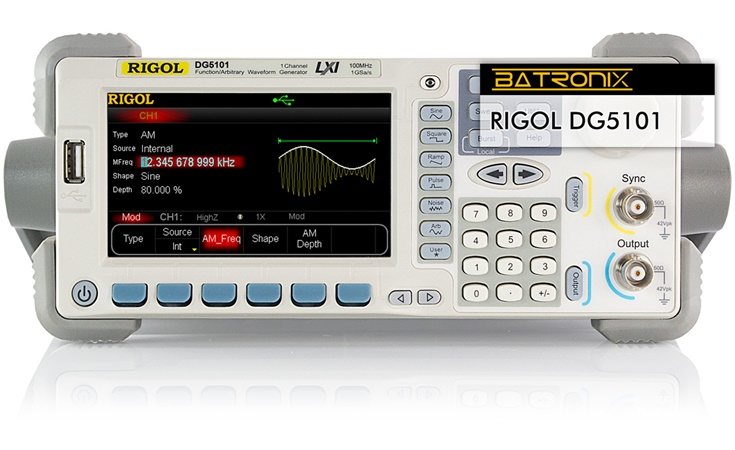

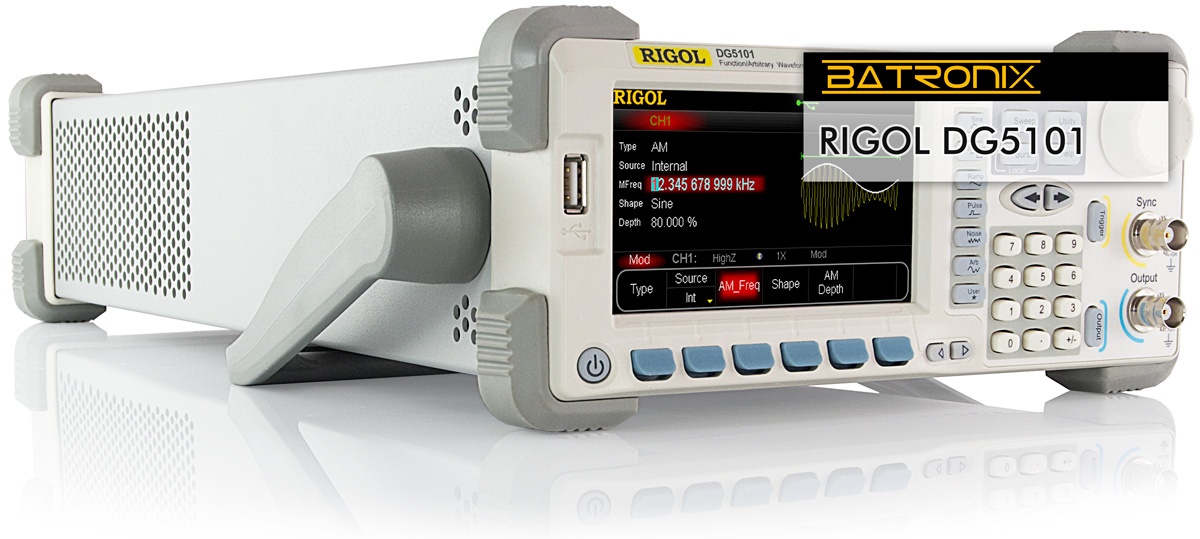

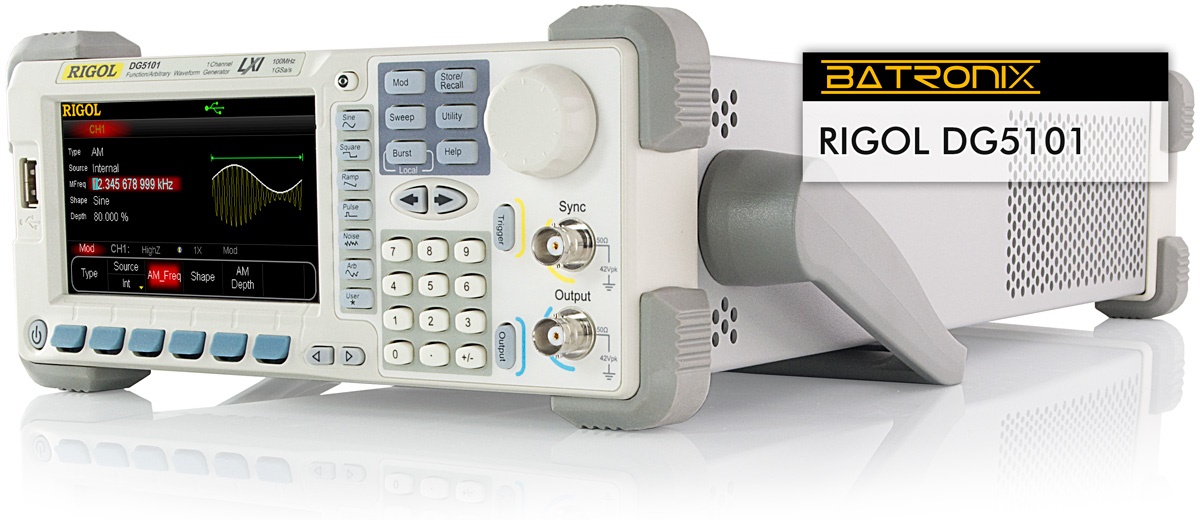

The Rigol DG5101 is a Function / Arbitrary Waveform Generator to create high quality signals up to 100 MHz (Sine). Beside the analog output, the device includes an USB-Host- and an USB-device, a RS-232, LAN and a GPIB interface.
The Rigol Function-generators have a sophisticated and easy to use interface and offer multiple functions for all tasks. The menu navigation is very intuitive and all functions and parameters are easy to locate thanks to the graphical interface.
Model | DG5071 | DG5072 | DG5101 | DG5102 | DG5251 | DG5252 | DG5351 | DG5352 |
---|---|---|---|---|---|---|---|---|
Max. Frequency | 70 MHz | 70 MHz | 100 MHz | 100 MHz | 250 MHz | 250 MHz | 350 MHz | 350 MHz |
Max. Sample rate | 1 GSa/s | 1 GSa/s | 1 GSa/s | 1 GSa/s | 1 GSa/s | 1 GSa/s | 1 GSa/s | 1 GSa/s |
Resolution | 1 µHz | 1 µHz | 1 µHz | 1 µHz | 1 µHz | 1 µHz | 1 µHz | 1 µHz |
Channels | 1 | 2 | 1 | 2 | 1 | 2 | 1 | 2 |
Generator | Function / Waveform Generator Rigol DG5101 |
---|---|
Display | 4.3" TFT LCD with 16M true color |
Resolution | 480 × 272 Pixel |
Interfaces |
|
Dimensions (W × H × D) | 263 mm × 107 mm × 505 mm (10.35" × 4.21" × 19.88") |
Weight | 4.3 kg (9.48 lbs) |
Supported operation systems | Windows XP (32Bit + 64Bit), Vista (32Bit + 64Bit), Windows 7 (32Bit + 64Bit) |
The complete list of technical specifications can be found in chapter "Specification" of the datasheet.
Function | Function / Waveform Generator Rigol DG5101 |
---|---|
Channels | 1 |
Signal Output | Sine, Rectangle, Pulse, Ramp, 9 predefined arbitrary Waveforms, freely definineable arbitrary Waveforms, Noise |
Vertical Resolution | 14 bit |
Amplitudes | 5 mVpp ~ 10 Vpp (50 Ω) |
DC Offset | ±5 V (50 Ω) |
Sample Rate | 1 GSa/s |
Frequency Range Sine | 1 µHz - 100 MHz |
Frequency Range Rectangle | 1 µHz - 100 MHz |
Frequency Range Pulse | 1 µHz - 50 MHz |
Frequency Range Ramp | 1 µHz - 3 MHz |
Frequency Range Arbitrary | 1 µHz - 50 MHz |
Frequency Range Noise | 100 MHz (-3db) |
Resolution | 1 µHz |
File Size: 1.68 MiB
Release Date: 27.12.2018
File Size: 1.18 MiB
Release Date: 27.12.2018
Language: English
Version: UGB07109-1110
File Size: 3.90 MiB
Release Date: 01.02.2014
Language: English
File Size: 906.61 KiB
Release Date: 27.12.2018
Language: English
File Size: 435.80 KiB
Release Date: 04.08.2010
Version: 15.0
File Size: 83.96 MiB
Release Date: 08.03.2015
O/S: Windows 8.1 (64/32 Bit), 8 (64/32 Bit), 7 (64/32 Bit), Vista (64/32 Bit), XP (64/32 Bit)
Version: 17.0
File Size: 123.33 MiB
Release Date: 22.05.2017
O/S: Windows 10 (64/32 Bit), 8.1 (64/32 Bit), 8 (64/32 Bit), 7 (64/32 Bit)
Release Date: 27.12.2018
Release Date: 27.12.2018
Language: English
Version: 00.01.06.01
File Size: 521.18 MiB
Release Date: 22.08.2019
O/S: Windows 10 (64/32 Bit), 8.1 (64/32 Bit), 8 (64/32 Bit), 7 (64/32 Bit), Vista (64/32 Bit), XP (64/32 Bit)
Version: 00.01.04.06
File Size: 15.23 MiB
Release Date: 10.09.2018
O/S: Windows 10 (64 Bit), 8.1 (64/32 Bit), 8 (64/32 Bit), 7 (64/32 Bit), Vista (64/32 Bit), XP (64/32 Bit)
