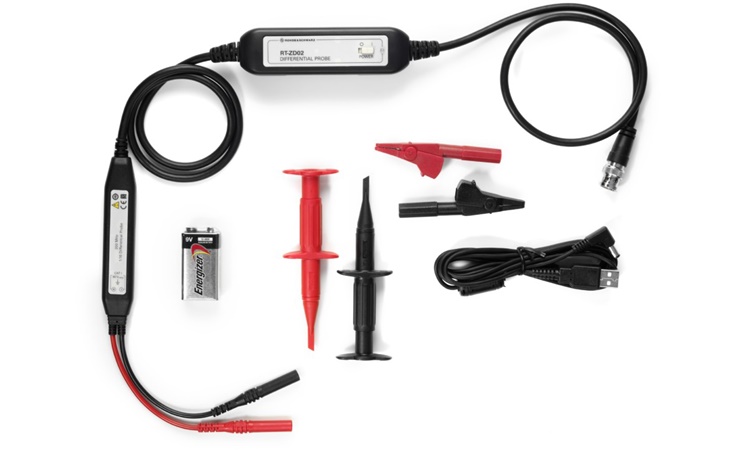

Active differential probe.
| Model | RT-ZD01 | RT-ZD02 | RT-ZD08 | RT-ZD10 | RT-ZD20 |
|---|---|---|---|---|---|
| Attenuation | 100:1 1000:1 | 10:1 | 10:1 | 10:1 | 100:1 |
| Bandwith | 100 MHz | 200 MHz | 800 Mhz | 1 GHz | 1.5 GHz |
| Dynamic Range | ± 140 V (100:1) ± 1400 V (1000:1) | ± 20 V | ± 15 V | ± 5 V | ± 60 V |
| Input Impedance | 8 MΩ 3.5 pF | 1 MΩ 3.5 pF | 200 kΩ 1 pF | 1 MΩ 0.6 pF | 1 MΩ 0.6 pF |
Downloads
Datasheet
R&S Probes, brochure and datasheets
Language: German
File Size: 9.27 MiB
Release Date: 27.07.2022
R&S Probes, brochure and datasheets
Language: English
File Size: 12.98 MiB
Release Date: 27.07.2022
Guide
Chose the right R&S probe for your application
Language: German
File Size: 770.44 KiB
Release Date: 02.10.2022
Chose the right R&S probe for your application
Language: English
File Size: 747.33 KiB
Release Date: 02.10.2022
