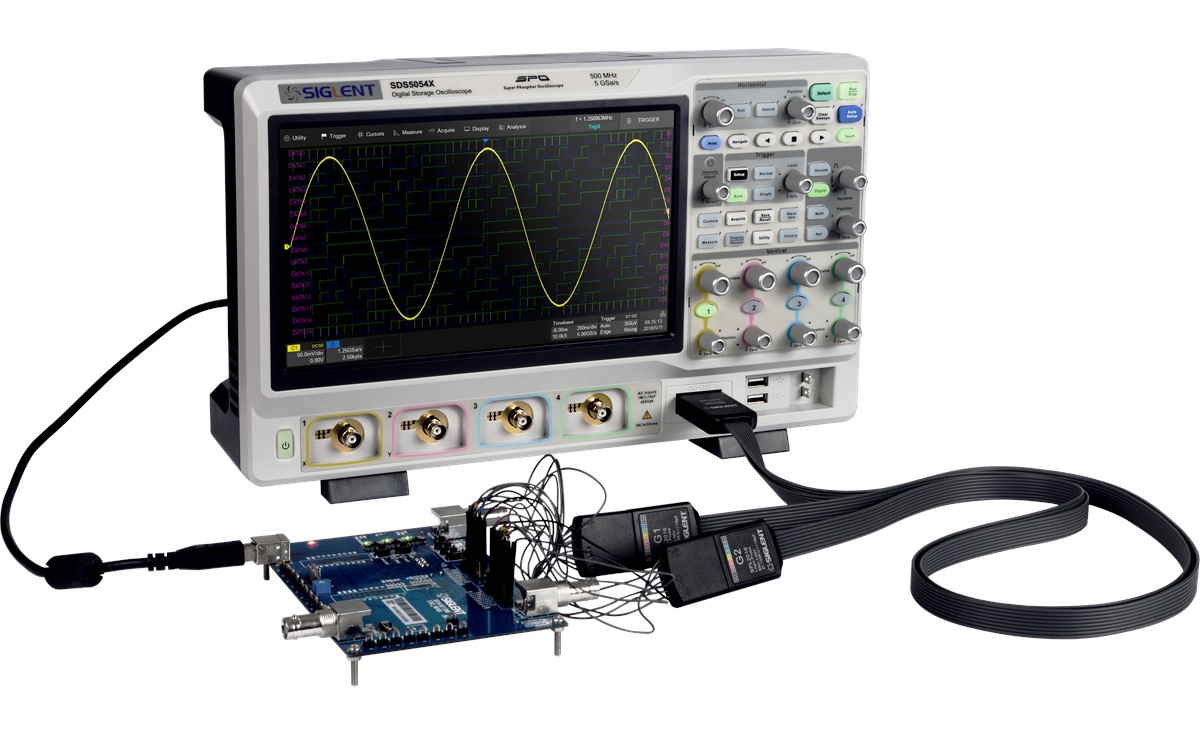

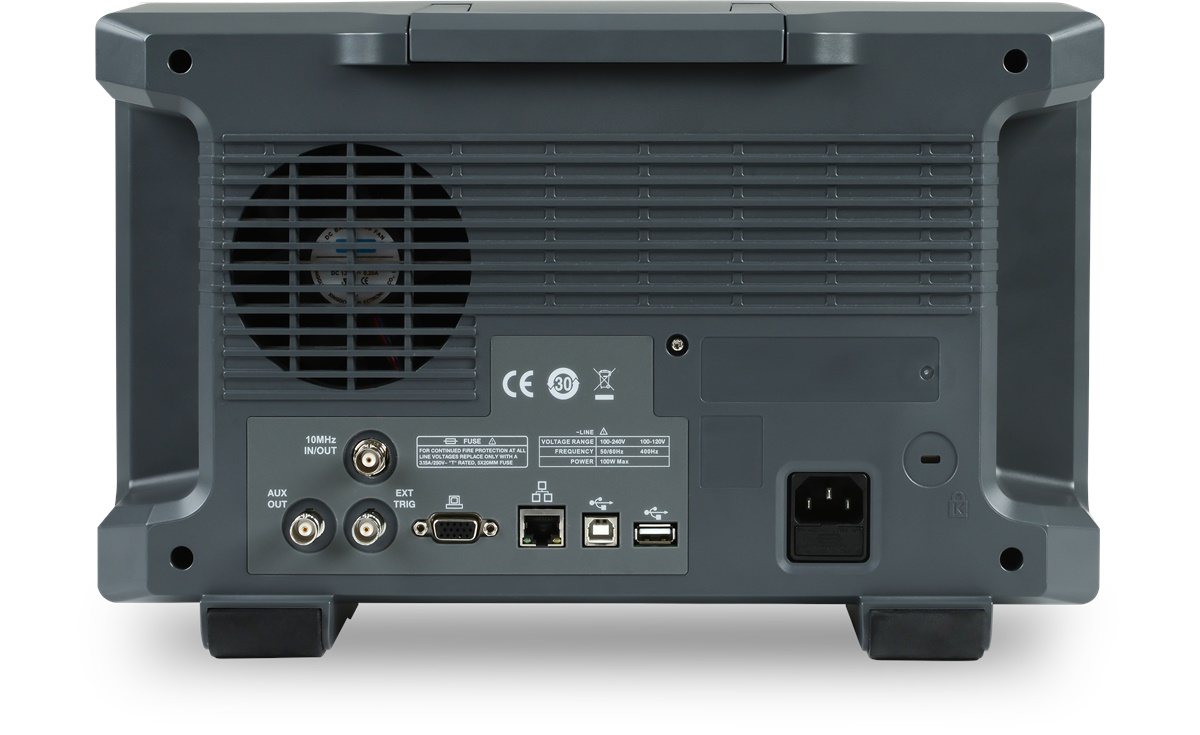

The Siglent SDS5000X series Digital Storage Oscilloscopes are available in bandwidths of 1 GHz, 500 MHz and 350 MHz, have a maximum sample rate of 5 GSa/s, maximum record length of 250 Mpts, and display up to 4 analog channels + 16 digital channels mixed signal analysis ability.
The SDS5000X series employs Siglent’s SPO technology with a maximum waveform capture rate of up to 110,000 wfm/ s (normal mode, up to 480,000 wfm/s in Sequence mode), 256-level intensity grading display function plus a color temperature display mode. It also employs an innovative digital trigger system with high sensitivity and low jitter.
The trigger system supports multiple powerful triggering modes including serial bus triggering. History waveform recording, Sequence acquisition, Search and Navigate functions allow for extended waveform records to be captured, stored, and analyzed. An impressive array of measurement and math capabilities, options for a 25 MHz arbitrary waveform generator, as well as serial decoding are also features of the SDS5000X.

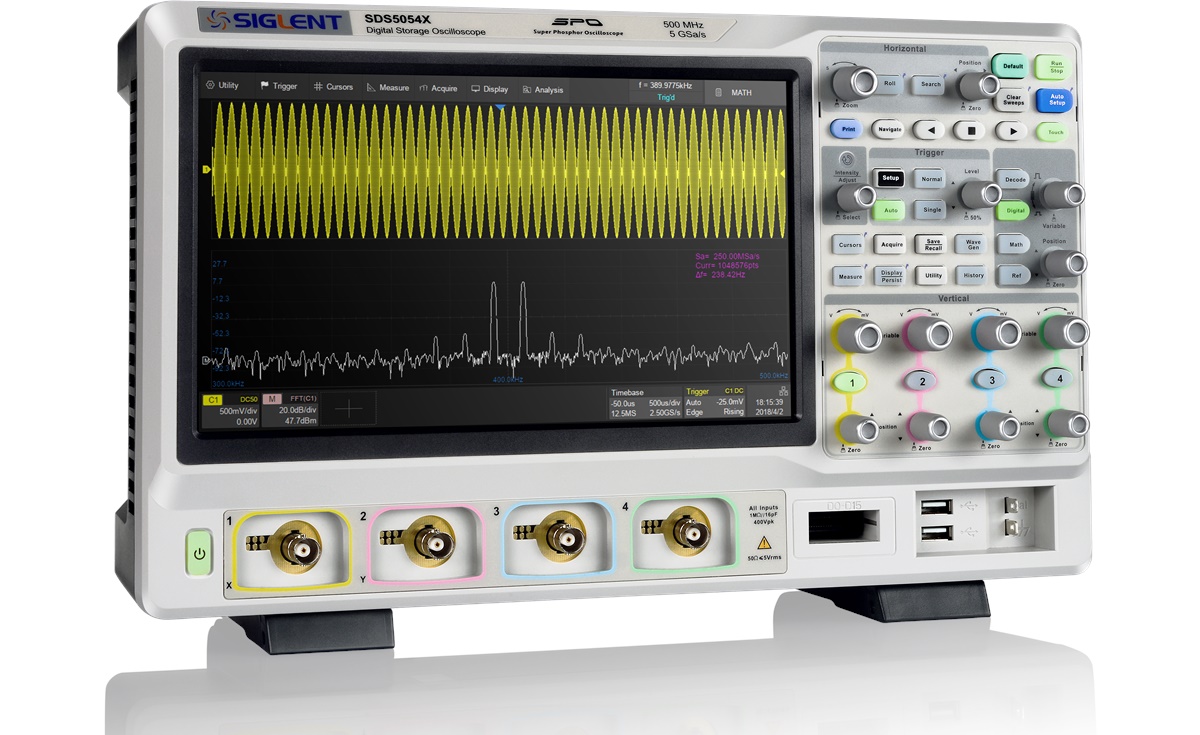

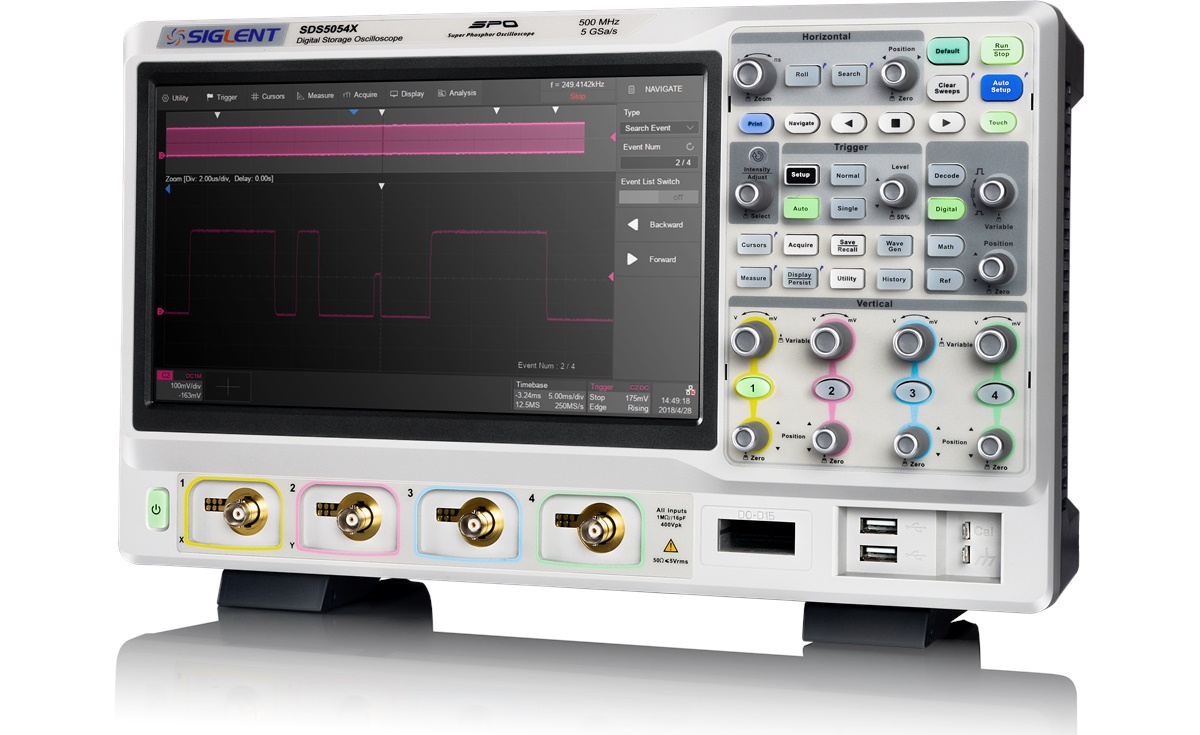

The large 10.1’’ display capacitive touch screen supports multi-touch gestures, with the addition of user-friendly one-button design for most commonly used functions, can greatly improve the operation efficiency of the SDS5000X.
| Features | SDS5000X |
|---|---|
| Channel | 4 |
| Bandwidth | 350 MHz - 1 GHz |
| Sample rate | 2 channel with each 5 GSa/s 4 channel with each 2.5 GSa/s |
| Waveform capture rate | 480.000 wfms/s |
| Memory depth | 2 channel with each 250 Mpts 4 channel with each 125 Mpts |
| SDS5000X | Bandwidth | Channel | Logic Analyzer | Waveform generator |
|---|---|---|---|---|
| SDS5034X | 350 MHz (upgradable to 500 MHz) | 4 | Option | Option |
| SDS5054X | 500 MHz (upgradable to 1 GHz) | 4 | Option | Option |
| SDS5104X | 1 GHz | 4 | Option | Option |
You will find the specifications of the SDS5000X series here.
Downloads
Datasheet
SDS5000X Data sheet
Language: English
File Size: 3.50 MiB
Release Date: 17.01.2019
Manual
SDS5000X Manual
Language: English
File Size: 13.77 MiB
Release Date: 17.01.2019
SDS5000X Quick start
Language: English
File Size: 65.09 MiB
Release Date: 14.01.2019
