Description

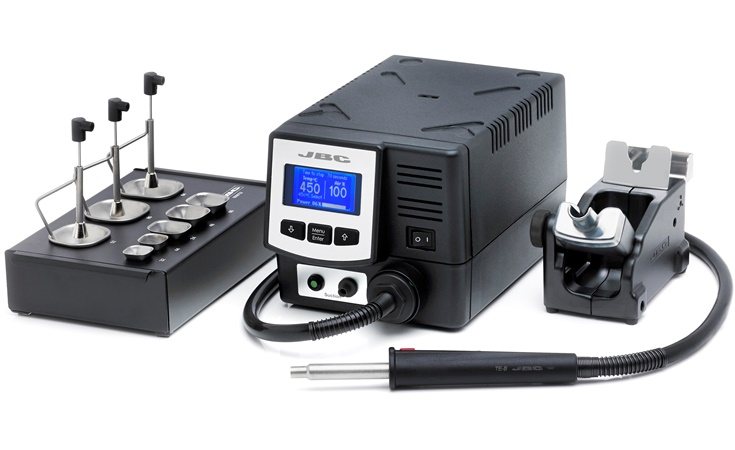

High end Precision Hot Air Station of JBC for save and fast SMD repairing jobs. The JBC TE is equipped with a precision heater hose, which is ideal for general SDM repairing jobs. The unit features two work modes (manual / program) to manage efficiently the temperature and the hot air flow.
Technical Data
| Specifications | TE-2D |
|---|---|
| Weight | 5.084 kg (11.20 lbs) |
| Size | 148 x 184 x 140 mm |
| Voltage (AC) | 230V 50/60Hz |
| Input fuse | 4A T |
| Nominal Power | 300W |
| Rated Current | 3A |
| Temperature selection | 150-450 ºC (300-840 ºF) |
| Ambient operating temp. | 10-40 ºC / 50-104 ºF |
| Air Flow range | 3 - 17 slpm |
| Vacuum | 30% / 228 mmHg / 9 inHg |
| PC connector | USB-B |
| Pedal connector | P-005 |
| ESD safe | |
| Package weight | 6.188 kg (13.64 lbs) |
| Package dimensions | 474 x 368 x 195 mm |
