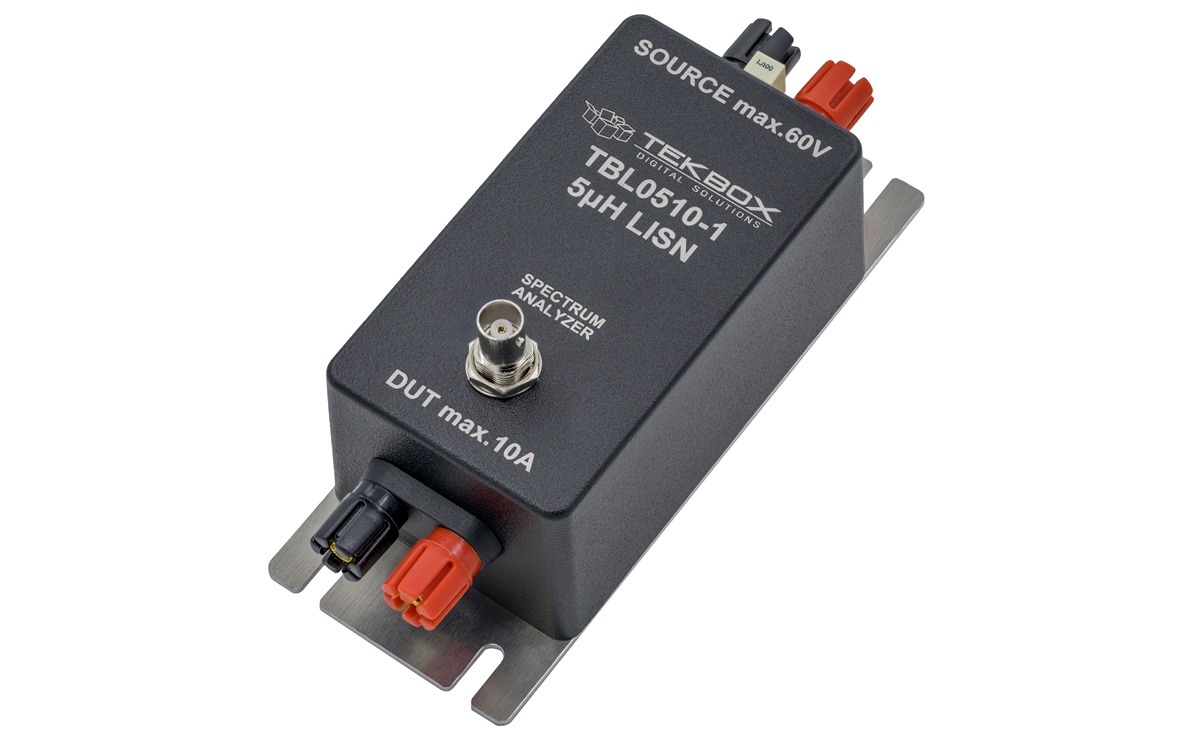

The TBL0510-1 is an affordable 5µH LISN designed for conducted emission measurements in the frequency range of 100 kHz to 400 MHz. It complies with CISPR-25 (EN 55025), numerous automotive manufacturer standards, MIL-STD-461F, DO-160, AECTP-500 and ISO 7637-2.
LISNs are inserted into the supply lines of the EUT (Equipment Under Test). Conducted noise which is present at the supply terminals of the DUT can be measured at the BNC connector s using a spectrum analyzer or a measurement receiver. The source (supply) terminal and the DUT terminal are decoupled by a 5µH inductor. Two TBL0510-1 in combination with the Tekbox LISN Mate enable separate measurement of common mode and differential mode noise.
SPECIFICATIONS
- Frequency range: 10 kHz – 400 MHz
- DC Resistance: 40 mΩ
- Maximum current: 10 A continuous
- Nominal operating voltage range: 0 – 60V DC;
- Absolute maximum rating of internal components: 200V DC; external 1µF capacitor: 100V
- Built in surge protection
- External 1µF source capacitor, for easy removal when using the LISN for 7637-2 tests
APPLICATION
- EMC pre-compliance testing of conducted noise
Model Overview
| Model | Impedance | Frequency Range | Path | Max. Current | Max. Voltage | Additional Features |
|---|---|---|---|---|---|---|
| TBL00705-2 | 0.7 µH//50 Ω | 30 Hz – 500 MHz | 2 | 5 A | 60 V nominal, Component rating: 100 V | 400 mΩ serial resistor |
| ТВL0110-2 | 1 µH//50 Ω | 30 Hz – 500 MHz | 2 | 10 A | 60 V nominal, Component rating: 100 V | 100 mΩ serial resistor |
| TBL0225-2 | 2 µH//50 Ω | 10 Hz – 200 MHz | 2 | 25 A | 60 V nominal, Component rating: 100 V | 100 mΩ serial resistor |
| TBL0510-1 | 5 µH//50 Ω | 10 kHz – 400 MHz | 1 | 10 A | 60 V nominal, Component rating: 200 V | |
| TBL0550-1 | 5 µH//50 Ω | 150 kHz – 108 MHz | 1 | 50 A | 60 V nominal, Component rating: 250 V | |
| TBL0550-1B | 5 µH//50 Ω | 10 kHz – 400 MHz | 1 | 50 A | 0 – 250 V AC @ 50/60 Hz, 130 V AC @ 400 Hz, 250 V DC 450 CV DC (components) | Can be jumpered to various standards |
| TBL05100-1C | 5 µH//50 Ω | 10 kHz – 400 MHz | 1 | 100 A | 0 – 500 V AC @ 50/60 Hz, 250 V AC @ 400 Hz, 1500 V DC (components) | Can be jumpered to various standards |
| Model | Impedance | Frequency Range | Path | Max. Current | Max. Voltage | Additional Features |
|---|---|---|---|---|---|---|
| TBL5016-1 | 50µH//50Ω (50µH+5Ω)//50Ω | 150 kHz – 30 MHz | 1 | 16A | 250V | can be jumpered 50µH//50Ω or (50µH+5Ω)//50Ω no 250uH pre-filter |
| TBL5032-1 | 50Ω/50µH+5Ω//50Ω/50µH | 10 kHz - 100 MHz | 1 | 32 A | 500 V DC / 270 V AC (50/60 Hz) 120 V AC (400 Hz) | can be jumpered 50µH//50Ω or (50µH+5Ω)//50Ω no 250uH pre-filter |
| TBL50100-1B | 50Ω/50µH+5Ω//50Ω/50µH | 150 kHz – 30 MHz | 1 | 82A | 0 – 500V DC; 0 – 270V AC (50/60 Hz), 0 – 120V AC (400 Hz) | can be jumpered 50µH//50Ω or (50µH+5Ω)//50Ω no 250uH pre-filter |
| TBL501000-1 | 50µH // 50 Ω | 100 kHz – 30 MHz | 1 | 1000 A | 0 – 1000 V DC; 0 – 500 V AC (50/60 Hz) | |
| TBL5008-2B | (50µH+5Ω)//50Ω | 9 kHz – 30 MHz | 2 | 8A | 250V AC 50/60 Hz or DC | separate RF outputs enabling LISN-Mate connectivity; Artificial hand connection PE switchable: 50Ω//50µH |
| TBL5008-2C | (50µH+5Ω)//50Ω | 9 kHz – 30 MHz | 2 | 8A | 250V AC 50/60 Hz or DC | Filter/Limiter/Attenuator switchable Artificial hand connection PE switchable: 50Ω//50µH |
| TBL5016-2B | (50µH+5Ω)//50Ω | 9 kHz – 30 MHz | 2 | 16A | 250V AC 50/60 Hz or DC | separate RF outputs enabling LISN-Mate connectivity; Artificial hand connection PE switchable: 50Ω//50µH |
| TBL5016-2C | (50µH+5Ω)//50Ω | 9 kHz – 30 MHz | 2 | 16A | 250V AC 50/60 Hz or DC | Filter/Limiter/Attenuator switchable Artificial hand connection PE switchable: 50Ω//50µH |
| TBL5016-3 | (50µH+5Ω)//50Ω | 9 kHz – 30 MHz | 3 | 16A | 465V/270V | Artificial hand connection PE switchable: 50Ω//50µH |
| TBL5032-3 | (50µH+5Ω)//50Ω | 9 kHz – 30 MHz | 3 | 32A | 465V/270V | Artificial hand connection PE switchable: 50Ω//50µH |
| TBL5063-3 | (50µH+5Ω)//50Ω | 9 kHz – 30 MHz | 3 | 63A | 690V/400V 50Hz/60Hz | Artificial hand connection PE switchable: 50Ω//50µH |
| Model | Impedance | Frequency Range | Path | Max. Current | Max. Voltage | Additional Features |
|---|---|---|---|---|---|---|
| TBLM2 | | 150 kHz – 110 MHz | | | | LISN-Mate |
| TBLDC32-2 | 150 Ohm | 9 kHz – 30 MHz | 2 | 32A | 1000V DC | 150 Ohm DC LISN A, B, Common-Mode Differential-Mode operation |
| TBLVHF-B | 50 Ohm +-10% | 30 MHz – 300 MHz | 2 | 16A | 250V DC – 400 Hz | Balanced VHF LISN |
| TBISN-T4 | 150 Ohm | 150 kHz – 30 MHz | 2 balanced pairs | 250mA | 60V AC, 100V DC | 2 pcs D-Sub 25 to RJ45 adapter |
Downloads
Datasheet
TBL0510-1 Datasheet
Language: English
Version: V1.0
File Size: 1.44 MiB
Release Date: 08.10.2025
Guide
EMC pre compliance testing guide EN
Language: English
Version: V1.2
File Size: 406.81 KiB
Release Date: 30.04.2018
This document focusses on measurement equipment and methods, limits and the relevant standards of conducted noise measurement on the power supply lines of products. The document tries to reduce the details to those necessary to carry out pre-compliance measurements in house with modest equipment.
EMC pre compliance testing guide German
Language: German
Version: V1.7
File Size: 402.40 KiB
Release Date: 12.10.2022
This document focusses on measurement equipment and methods, limits and the relevant standards of conducted noise measurement on the power supply lines of products. The document tries to reduce the details to those necessary to carry out pre-compliance measurements in house with modest equipment.
