TekBox TBL501000-1

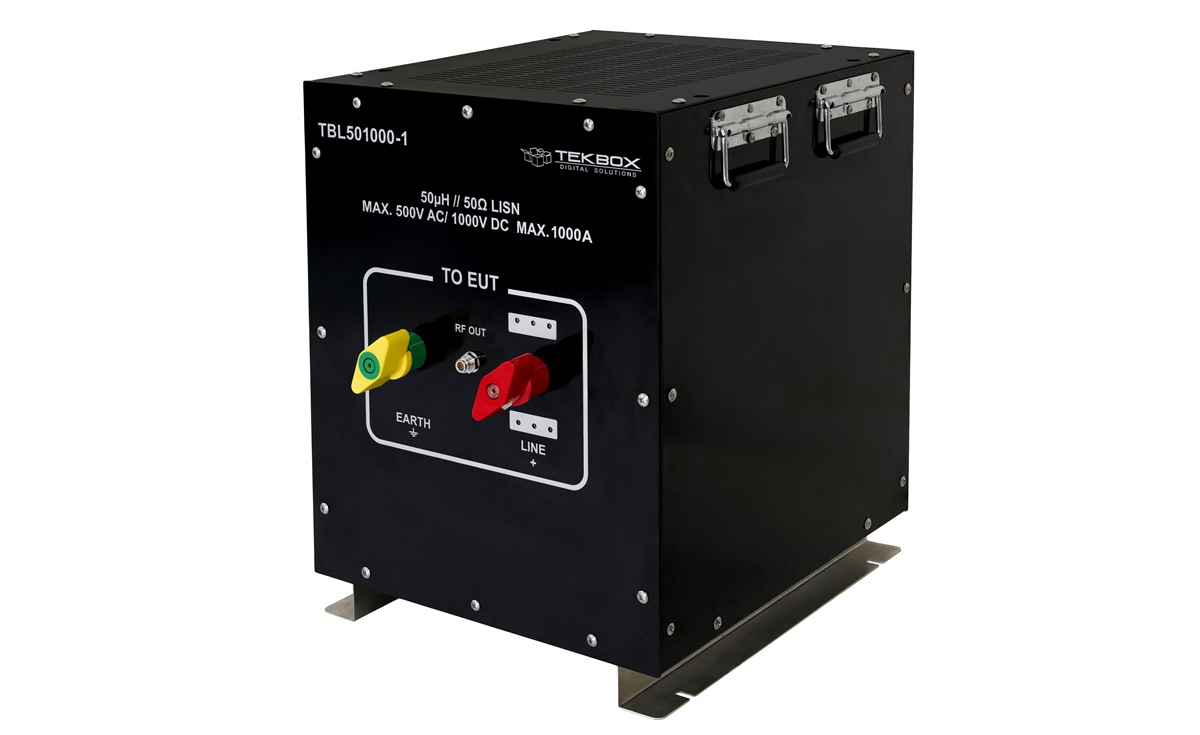

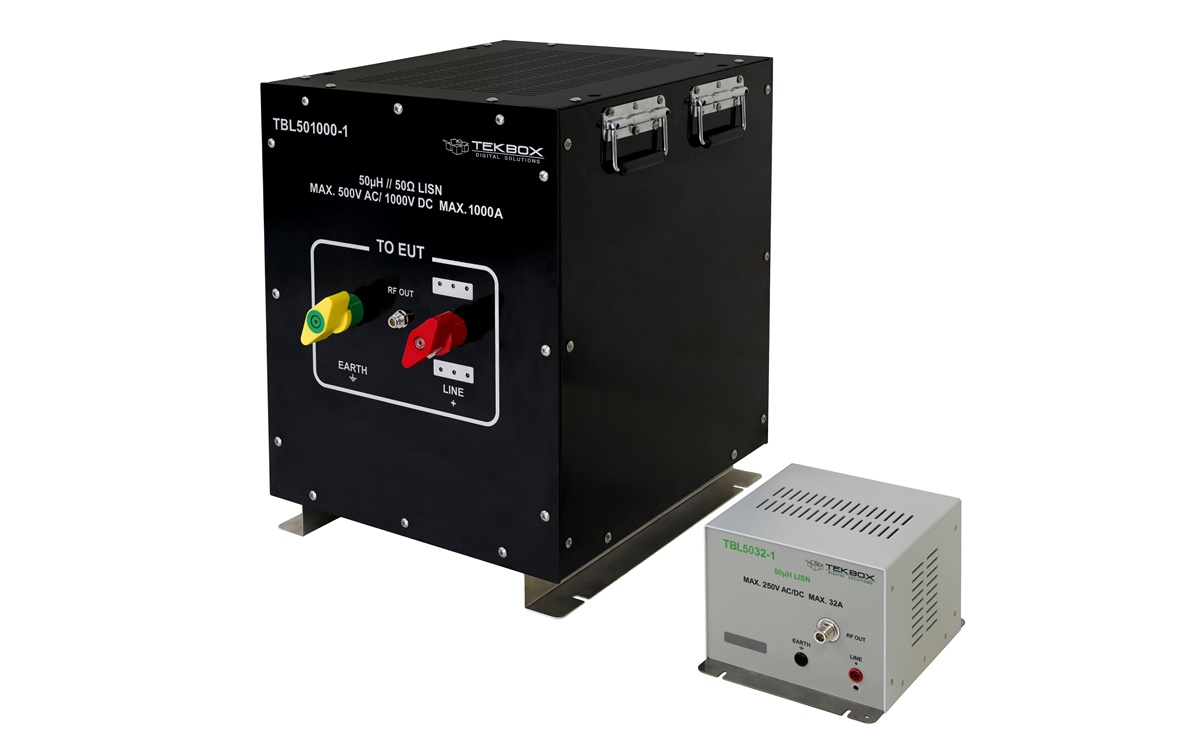

TBL501000-1 Measurement Devices by TekBox, Side view

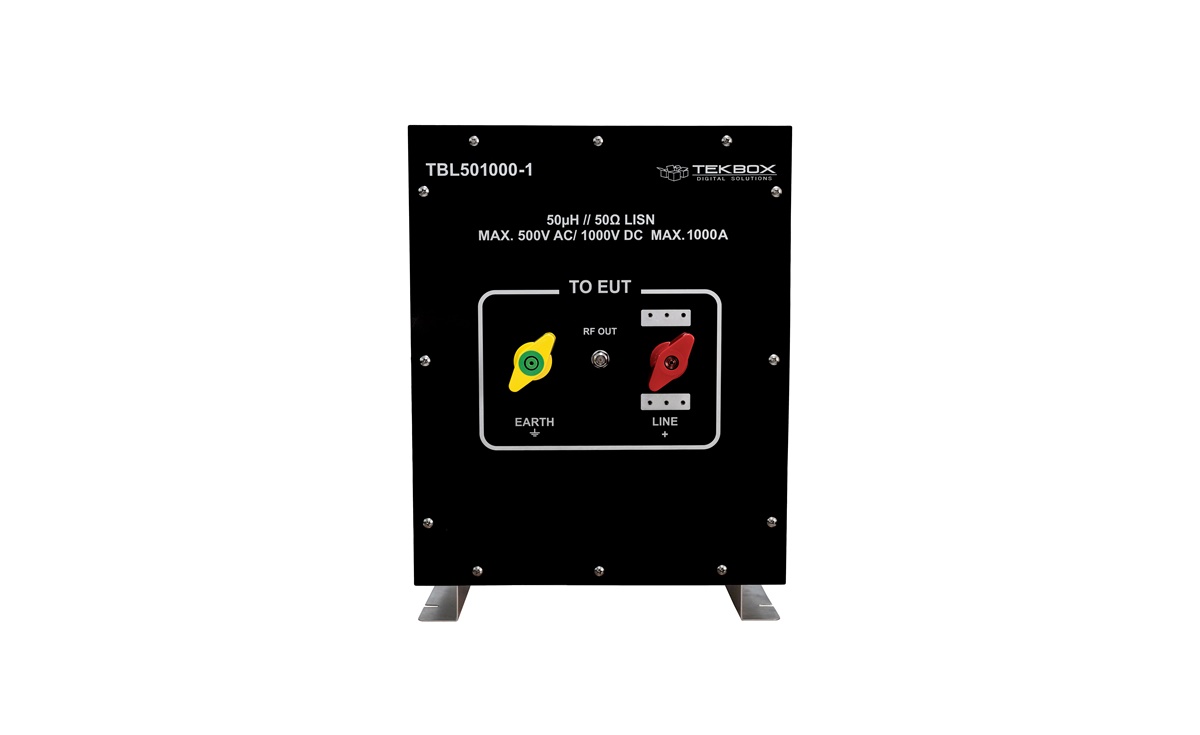

TBL501000-1 Measurement Devices by TekBox, Side viewTBL501000-1 Measurement Devices by TekBox, Rear viewTBL501000-1 Measurement Devices by TekBox, Front viewTBL501000-1 Measurement Devices by TekBox
Be the first to write a review

Single path 50µH // 50 Ω LISN (Artificial Mains V-Network V-AMN) for measurements in the 150 kHz to 30 MHz frequency range

2 years warranty

No.: TBL501000-1

In 61-90 days after order in stock.
Please contact us!

The TBL501000-1 is a high current single path 50µH // 50 Ω LISN for conducted emission measurements of DC or AC-powered electronic equipment. It is designed according to the CISPR 16-1-2 standard and characterized in the frequency range of 150 kHz to 30 MHz.

Combining two LISN with the Tekbox LISN Mate enables separate measurement of common mode and differential mode noise. EUTs with 3 phase supply require three or four pieces of TBL501000-1, depending on whether the product is supplied in delta or star configuration.

The LISN is equipped with fans to enable continuous operation up to 1000 A. The fans are available with either 100 V – 120 V or with 200V – 240 V supply voltage. A C14 connector with integrated switch sits on the rear panel. The LISN can be operated continuously with up to 500 A without fan.

An exposed stainless steel bottom profile enables convenient ground plane connection.

SPECIFICATIONS

  • LISN type: single path V-AMN, 50 Ω/50 µH; no 250 µH pre-filter
  • Characterized Frequency range: 150 kHz – 30 MHz
  • DC Resistance: < 3 mΩ
  • Maximum current: 1000 A continuous (with fan on), 500 A continous (without fan on)
  • Maximum operating voltage range: 0 – 1000 V DC; 0 – 500 V AC (50/60 Hz)
  • EUT connector: High current wing terminal, M16 x 1.5
  • Source connector: High current wing terminal, M16 x 1.5
  • Earth: exposed stainless steel profile with mounting slots
  • RF connector: N-Female
  • Fan: Available with 100V-120V or 220V-240V supply voltage; C14 connector with integrated switch on rear panel
  • Dimensions: W x H x L; 480 mm x 600 mm x 660 mm;
  • Weight: 70 kg

APPLICATION

  • EMC pre-compliance testing of conducted noise

Model Overview


Model Impedance Frequency Range Path(s) Max. Current Max. Voltage Additional Features
TBL00705-2 0.7 µH//50 Ω 30 Hz – 500 MHz 2 5 A 60 V nominal, Component rating: 100 V 400 mΩ serial resistor
ТВL0110-2 1 µH//50 Ω 30 Hz – 500 MHz 2 10 A 60 V nominal, Component rating: 100 V 100 mΩ serial resistor
TBL0225-2 2 µH//50 Ω 10 Hz – 200 MHz 2 25 A 60 V nominal, Component rating: 100 V 100 mΩ serial resistor
TBL0225-2B 2 µH//50 Ω 10 Hz – 200 MHz 2 25 A 100 V nominal, Component rating: 100 V 100 mΩ series resistor and
internal 10,000 µF capacitor
TBL0510-1 5 µH//50 Ω 10 kHz – 400 MHz 1 10 A 60 V nominal, Component rating: 200 V
TBL0550-1B 5 µH//50 Ω 10 kHz – 400 MHz 1 50 A 0 – 250 V AC @ 50/60 Hz, 130 V AC @ 400 Hz, 250 V DC 450 CV DC (components) Can be jumpered to various standards
TBL05100-1C 5 µH//50 Ω 10 kHz – 400 MHz 1 100 A 0 – 500 V AC @ 50/60 Hz, 250 V AC @ 400 Hz, 1500 V DC (components) Can be jumpered to various standards

Model Impedance Frequency Range Path Max. Current Max. Voltage Additional Features
TBL5032-1 50Ω/50µH+5Ω//50Ω/50µH 10 kHz - 100 MHz 1 32 A 500 V DC / 270 V AC (50/60 Hz)
120 V AC (400 Hz)		 can be jumpered 50µH//50Ω or (50µH+5Ω)//50Ω no 250uH pre-filter
TBL50100-1B 50Ω/50µH+5Ω//50Ω/50µH 150 kHz – 30 MHz 1 82 A 0 – 500V DC; 0 – 270V AC (50/60 Hz),
0 – 120V AC (400 Hz)		 can be jumpered 50µH//50Ω or (50µH+5Ω)//50Ω no 250uH pre-filter
TBL501000-1 50µH // 50 Ω 100 kHz – 30 MHz 1 1000 A 0 – 1000 V DC; 0 – 500 V AC (50/60 Hz)
TBL5008-2B (50µH+5Ω)//50Ω 9 kHz – 30 MHz 2 8 A 250V AC 50/60 Hz or DC separate RF outputs enabling LISN-Mate connectivity; Artificial hand connection PE switchable: 50Ω//50µH
TBL5008-2C (50µH+5Ω)//50Ω 9 kHz – 30 MHz 2 8 A 250V AC 50/60 Hz or DC Filter/Limiter/Attenuator switchable Artificial hand connection PE switchable: 50Ω//50µH
TBL5016-1 (50µH+5Ω)//50Ω 150 kHz – 30 MHz 1 16 A 250V AC 50/60 Hz or DC EOL, replaced by TBL5032-1
TBL5016-2B (50µH+5Ω)//50Ω 9 kHz – 30 MHz 2 16 A 250V AC 50/60 Hz or DC separate RF outputs enabling LISN-Mate connectivity; Artificial hand connection PE switchable: 50Ω//50µH
TBL5016-2C (50µH+5Ω)//50Ω 9 kHz – 30 MHz 2 16 A 250V AC 50/60 Hz or DC Filter/Limiter/Attenuator switchable Artificial hand connection PE switchable: 50Ω//50µH
TBL5016-3 (50µH+5Ω)//50Ω 9 kHz – 30 MHz 3 16 A 465V/270V Artificial hand connection PE switchable: 50Ω//50µH
TBL5032-3 (50µH+5Ω)//50Ω 9 kHz – 30 MHz 3 32 A 465V/270V Artificial hand connection PE switchable: 50Ω//50µH
TBL5063-3 (50µH+5Ω)//50Ω 9 kHz – 30 MHz 3 63 A 690V/400V 50Hz/60Hz Artificial hand connection PE switchable: 50Ω//50µH

Model Impedance Frequency Range Path Max. Current Max. Voltage Additional Features
TBLM2
150 kHz – 110 MHz
LISN-Mate
TBLDC32-2 150 Ohm 9 kHz – 30 MHz 2 32A 1000V DC 150 Ohm DC LISN A, B,
Common-Mode Differential-Mode operation
TBLVHF-B 50 Ohm +-10% 30 MHz – 300 MHz 2 16A 250V DC – 400 Hz Balanced VHF LISN
TBISN-T4 150 Ohm 150 kHz – 30 MHz 2 balanced pairs 250mA 60V AC, 100V DC 2 pcs D-Sub 25 to RJ45 adapter

Downloads

Datasheet

Adobe PDF

TBL501000-1 Datasheet

Language: English
Version: V1.0
File Size: 995.95 KiB
Release Date: 20.01.2026
