Owon VDS2062

PC based 2 channel DSO with 60 MHz bandwidth, 500 MSa/s sample rate and 10 Mpts/ch memory.

This article is no longer available.
Alternative Article:

2 years warranty

30 days trial period

Share on facebook
Google +1

The Owon VDS2062 is a PC based dual channel oscilloscope. The device features a bandwidth of 60 MHz and a sampling rate of 500 MSa/s.

The VDS2062 is a full-fledged compact oscilloscope. It is controlled via PC also displaying the measurement signals. The oscilloscope is connected directly via USB .

Menu Structure of the PC Software

Special Features

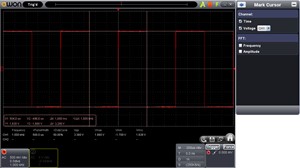

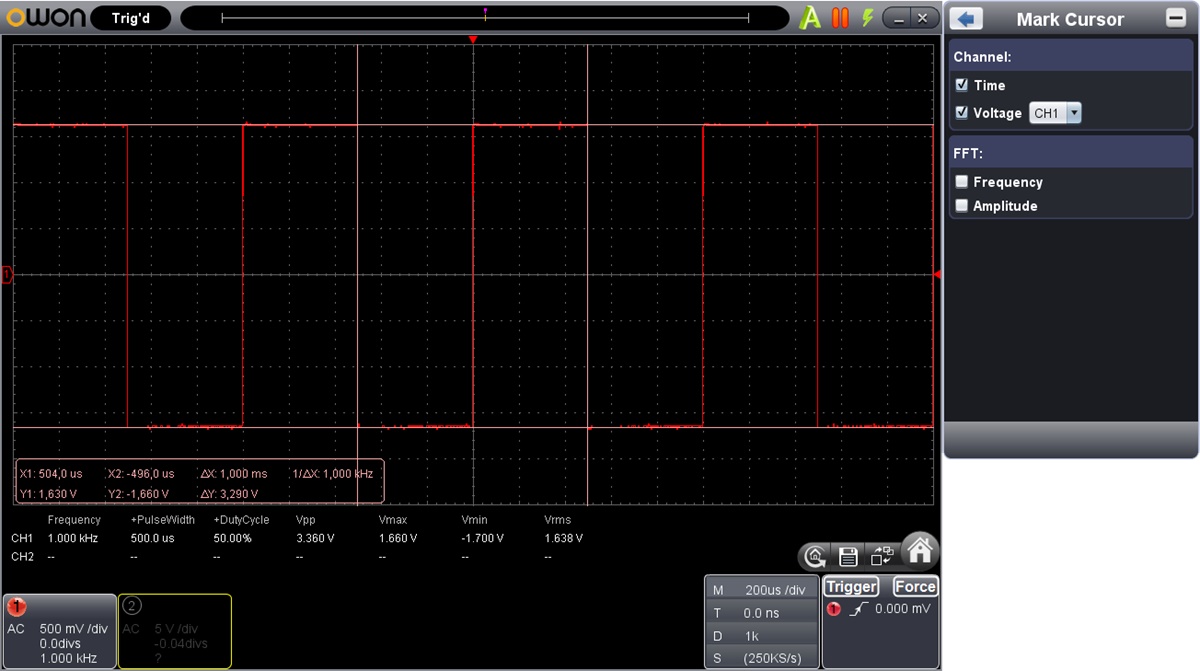

Picture: Cursor Measurements

Cursor Measurements

Various measurement values can be determined easily displayed in real-time.Both, cursor measurements and direct measurement with corresponding displays are available. Possible measurements include period, frequency, rise and fall times, duty cycle and pulse width for positive and negative signals, Vpp, Vmax, Vmin, Vamp, Vtop, Vbase, Overshoot, Preshot, Vavg, Vrms and rise and fall delays between both channels.
Picture: Mathematical Functions

Mathematical Functions

The two channels can be linked through a variety of mathematical functions. These channels can be added, subtracted, multiplied, and divided.

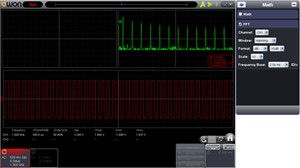

Picture: FFT (Fast Fourier Transformation)

FFT (Fast Fourier Transformation)

The Owon software can use ?Fast Fourier Transformation? to analyze the frequency components of the measurement signal and display them graphically. That makes this device the ideal choice for analyzing noise components in DC supplies and other harmonic components. Supported algorithms: Rectangle, Blackman, Hanning, Hamming

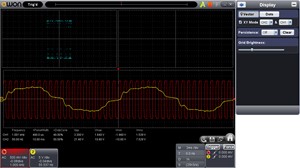

Picture: X-Y-Display


Next to the FFT functions Lissajous curves and component characteristics can be displayed on the multifunction display. A component tester is not included.
Picture: Masked Pass/Fail-Tests

Masked Pass/Fail-Tests

Pass/fail testing can be used for troubleshooting in various environments like communication networks. Features: User defined masks, Pass/Fail counts, Stop on Fail, Fail Alarm

General Data Owon VDS2062
Interfaces USB (High Speed)
Dimension (WxHxD) 190 mm × 120 mm × 18 mm
Warranty 3 years
Weight 260 g
Supported operation systems

Windows 8 (32Bit + 64Bit), Windows 7 (32Bit + 64Bit), Vista (32Bit + 64Bit),

XP (32Bit)

Oscilloscope Functions Owon VDS2062
Channels 2
Sampling Rate 500 MSa/s realtime
Bandwidth 60 MHz
Sampling mode Normal, average, peak detect
Mathematics A+B, A-B, A×B, A/B, FFT (Fast Fourier Transform)
FFT windows Rectangle, Blackman, Hanning, Hamming
Signal Owon VDS2062
Input DC/AC Coupling, to 40 Vpk (DC + AC peak)
Sampling Rate 1 Sa/s to 500 MSa/s realtime
Time base

5 ns/Div. to 100 s/Div.

(Steps 1 - 2 - 5)

Memory 10 Mpts
Vertical Owon VDS2062
Analog digital converter (A/D) 8Bit
Sensitivity range (V/div) 5 mV/Div to 5 V/Div.
Displacement range

±1 V (5 mV to 100 mV)

±50 V (200 mV to 5V)

Trigger Owon VDS2062
Trigger Edge, Pulse, Slope, external Trigger, Video, alternate Trigger
Signal system and line/field frequency (Video triggering mode)


line numbers 1-525 (NTSC) and 1-625 (PAL/SECAM)

Measurement Owon VDS2062
Cursor measurement Manual, Track and Auto Measure modes
Auto measurement Vpp, Vamp, Vmax, Vmin, Vhigh, Vlow, Vavg, Vrms, Frequency, Period, +Width, -Width, +Duty, -Duty



Adobe PDF

Owon VDS2062 Datasheet

File Size: 519.03 KiB
Release Date: 27.12.2018 11:25:48


Adobe PDF

Owon VDS series Manual

Language: English
File Size: 3.59 MiB
Release Date: 25.12.2013


ZIP archive

Owon VDS2062 Software

Language: English
Version: 1.0.32
File Size: 39.11 MiB
Release Date: 27.12.2018 11:25:48

RAR archive

Owon VDS2062 V2 Software

Language: English
Version: 2.0.13
File Size: 47.88 MiB
Release Date: 27.12.2018 11:25:48


RAR archive

Owon DSO USB Driver

File Size: 10.83 MiB
Release Date: 06.12.2016
O/S: Windows XP (32/64), Vista (32/64), 7 (32/64), 8 (32/64), 8.1 (32/64), 10 (32/64)
