Owon PDS7102T Oscilloscope
2 of 2 Article
Holiday Shipping and Support Update
Our office will be closed for the Christmas holidays from 24th December to 2nd January 2026. We will be back from the 5th of January.
We wish you a Merry Christmas and a Happy New Year!

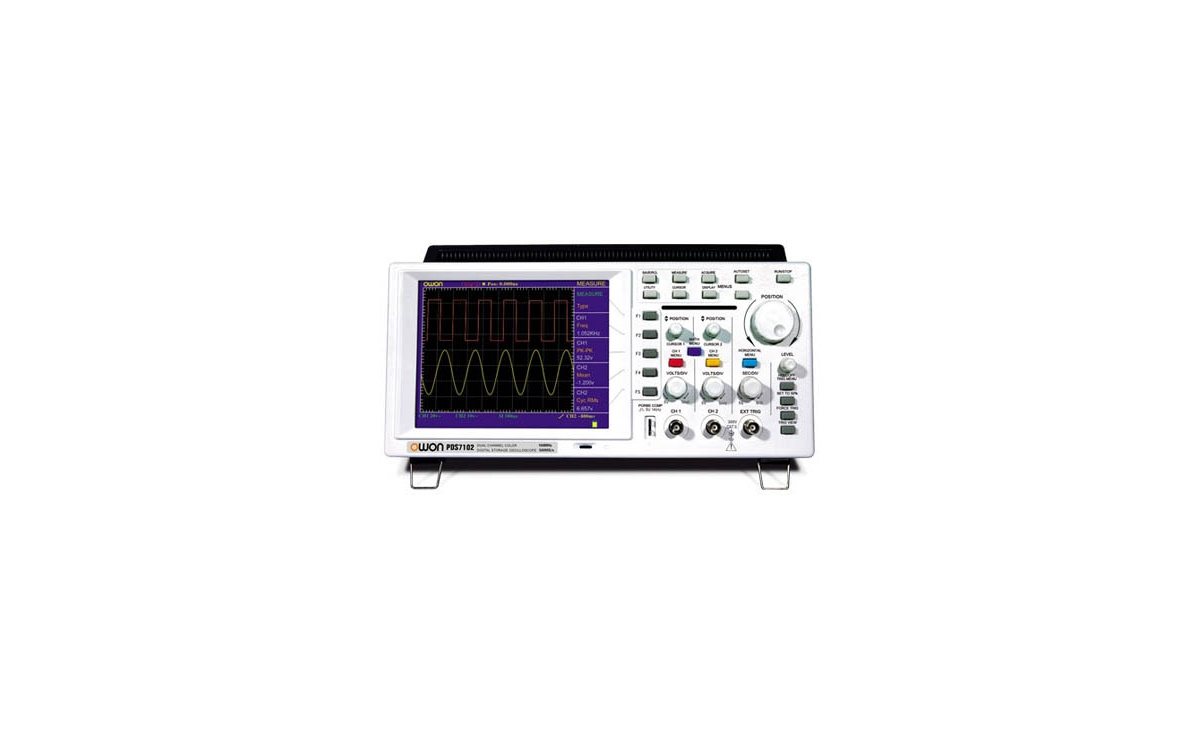

The new digital storage oscilloscope PDS7102T offers reliably measurement technology at a really good price.
The colorful LCD panel with a resolution of 640 × 480 allows an excellent readability of the wave, especially in regards to high data volumes or many waves covered reciprocally.
The PDS7102T offers 100 MHz bandwidth and a sample rate of 500 MSa/s in dual Channel.
Delivery including 2 probes, a USB cable, PC software, a power adapter and a user manual.
| Size and weight | PDS7102T |
|---|---|
| Display | 7.8" STN LCD with 260000 colors |
| Resolution | 640 × 480 Pixel |
| Size | 350 × 157 × 120 mm (13.78" × 6.18" × 4.72") |
| Weight | 1750 g (3.85 lbs) |
| Supported operation systems | Windows XP(32Bit), Vista(32Bit), Windows 7(32Bit) |
| Oscilloscope details | PDS7102T |
|---|---|
| Channels | 2 |
| Real-time sample rate | 500 MSa/s real time |
| Bandwidth | 100 MHz |
| Signal | PDS7102T |
|---|---|
| Max. Input voltage | 400 V (peak) |
| Real-time sample rate | 1 Sa/s to 500 MSa/s real time |
| Time base | 5 ns/Div. to 5 s/Div. (Steps 1 - 2,5 - 5) |
| Memory | 5000 points on each channel |
| Vertical | PDS7102T |
|---|---|
| Analog digital converter (A/D) | With the resolution of 8 bits, make sampling on both channels synchronously. |
| Sensitivity range (V/div) | 5 mV/Div to 5 V/Div. |
| Displacement range | ±10 Div. (5 mV - 5 V) |
| Trigger | PDS7102T |
|---|---|
| Trigger | Channel 1, 2 and external Trigger |
| Trigger displacement | Pre-Trigger: 655 Divisions Post-Trigger: 4 Divisions |
| Signal system and line/field frequency (Video triggering mode) | Support the NTSC, PAL and SECAM broadcasting systems of any field or line frequency. |
| Measurement | PDS7102T |
|---|---|
| Cursor measurement | Voltage difference (∆V) and time difference (∆T) between cursors |
| Auto measurement | Peak-to-peak value, average value, root mean square value, frequency and cycle. |
Downloads
Datasheet
Owon PDS7102T Datasheet
File Size: 34.13 KiB
Release Date: 27.12.2018
Manual
Owon Manual USB driver installation
Language: English
File Size: 1.59 MiB
Release Date: 01.09.2009
Owon PDS5022S, PDS6062T and PDS7102T Manual
Language: English
File Size: 3.79 MiB
Release Date: 01.03.2011
Software
Oszilloskop Software DS WaveSetup Download
File Size: 52.14 MiB
Release Date: 27.12.2018
Owon DSO PC software
Version: 2.0.12
File Size: 51.97 MiB
Release Date: 04.09.2015
O/S: Windows 10 (64/32 Bit), 8.1 (64/32 Bit), 8 (64/32 Bit), 7 (64/32 Bit), Vista (64/32 Bit), XP (64/32 Bit)
Driver
Owon DSO USB Driver
File Size: 10.83 MiB
Release Date: 06.12.2016
O/S: Windows 10 (64/32 Bit), 8.1 (64/32 Bit), 8 (64/32 Bit), 7 (64/32 Bit), Vista (64/32 Bit), XP (64/32 Bit)
