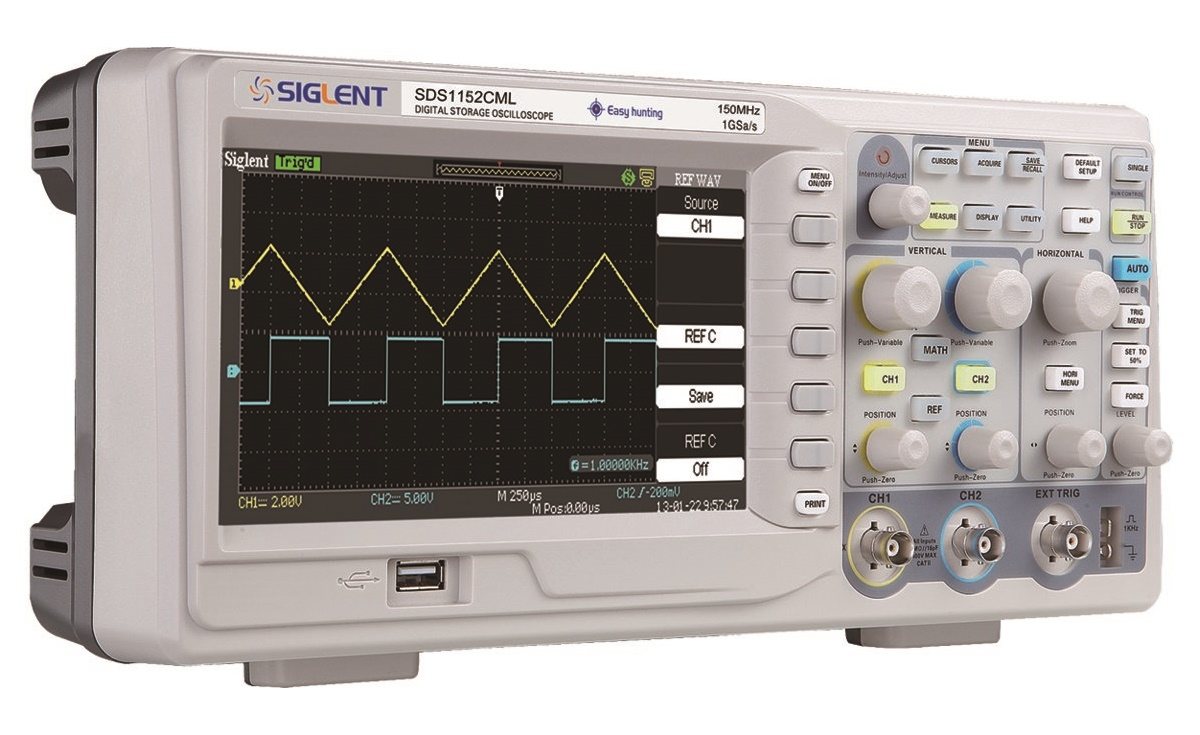

This Siglent SDS1152CML is a high quality two channel digital storage oscilloscope. It offers a real-time sample rate of up to 1 GSa/s, up to 150 MHz of bandwidth and a memory depth of 2 Mpts.

These Siglent SDS1000CML oscilloscopes are entry level-devices at affordable pricing without compromising on quality. The low pricing level results from the large amount of units sold as well as substantial economies. They are equipped with well designed and easy to use control panels offering comprehensive ease-of-use functions for all measuring tasks. The menu navigation is intuitive and available in several languages.

The particularly large TFT color displays are very easy to read. Thanks to an intelligent system for displaying or masking information, the largest possible area is always available for displaying signals. The signal curves, the FFT display, and other functions can be shown simultaneously on the display.

Models	SDS1072CML	SDS1102CML	SDS1152CML
Bandwidth	70 MHz	100 MHz	150 MHz
Sampling Rate (max.)	1 GSa/s	1 GSa/s	1 GSa/s
Memory Depth	2 Mpts	2 Mpts	2 Mpts
Channels	2	2	2

Special Features

Cursor Measurements

Cursors report absolute and relative values in the Time and Volt axes of the main display. They may be manually or automatically adjusted to measure features of interest or set to track automatic measurements such as peak or RMS voltages, time periods and more.

Automatic Measurements

The Siglent SDS1000 oscilloscopes offer 32 different automatical time and voltage measurements for easy signal analysis.

Alternate Trigger

It is possible to trigger both channes independently to display signals with different frequencies.

Slope Trigger

Triggers on the signals rise or fall time using user defined parameters.

Digital Filter

Unique digital filters like High pass, Low pass, Band pass or Band Stop filters may improve the signal quality.

Pass / Fail Test

The Pass/Fail function monitors the changes of signals by comparing whether the input signal is within the pre-defined mask. The testing results not only can be displayed on screen or output by isolated pass/fail port, but also can be alarmed according to turn on system sound.

Fast Fourier Transformation

The FFT function provides spectrum analysis function for users. Supported FFT windows: Rectangle, Hanning, Hamming, Blackman.

USB Stick Support

The device supports an easy-to-use file system. It allows for both USB flash drive and local file storage.

Waveform Recorder

The Waveform Recorder can record input waveforms from CH1 and CH2 with a maximum record length of 2500 frames. This record behavior can also be activated by the pass/fail test output, which makes this function especially useful to capture abnormal signals in long term without keeping an eye watching it.

Specifications

General Data	Siglent SDS1152CML
Display	7" (17.78 cm) TFT true color LCD
Resolution	480 × 234 Pixel
Size	323 × 157 × 135 mm (12.7" × 6.1" × 5.3")
Weight	2500 g (5.51 lbs)

Oscilloscope Details	Siglent SDS1152CML
Channels	2
Real-time sample rate	1 GSa/s real time
Bandwidth	150 MHz
Sampling mode	Normal, average, peak detect
Mathematics	A+B, A-B, A×B, A/B, FFT (Fast Fourier Transform)
FFT windows	Rectangle, Hanning, Hamming, Blackman

Signal	Siglent SDS1152CML
Max. Input voltage	400 Vrms CAT I
Real-time sample rate	up to 1 GSa/s real time
Time base	5 ns/Div. to 50 s/Div. (Steps 1 - 2.5 - 5)
Memory	2 Mpts (1 channel) 1 Mpts (2 channels)

Vertical	Siglent SDS1152CML
Analog digital converter (A/D)	8 bit
Sensitivity range (V/div)	2 mV/Div to 10 V/Div.
Displacement range	±10 Div. (2 mV - 10 V)

Trigger	Siglent SDS1152CML
Trigger	Channel 1, Channel 2, Ext, Ext / 5, AC Line
Signal system and line/field frequency (Video triggering mode)	Support the NTSC, PAL and SECAM broadcasting systems of any field or line frequency.

Measurement	Siglent SDS1152CML
Cursor measurement	Manual, Track and Auto Measure modes
Auto measurement	Vpp, Vmax, Vmin, Vamp, Vtop, Vbase, Vavg, Mean,Crms, Vrms, ROVShoot, FOVShoot, RPREShoot, FPREShoot, Rise time, Fall time, Freq, Period,+ Wid,－Wid, ＋Dut, －Dut, BWid, Phase, FRR, FRF, FFR, FFF, LRR, LRF, LFR, LFF
