DS4000 Oscilloscopes by Rigol

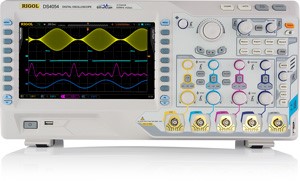

Picture:

The Rigol DS4000 series consists of 8 high level Oscilloscopes for professional operation, which come off very well compared to higher prices models of other brands.

All models of the DS4000 provide a sample rate of 4 GSa/s, 140 Mpts memory(!), a 9” (22,9 cm) TFT-color display, as well as professional measurement and mathematical functions.

The economic models DS4014E and DS4024E provide a sample rate of 2 GSa/s (per channel) and 14 Mpts memory (per channel).

The devices are available with 2 and 4 built-in channels and have 4 bandwidth variants each (100, 200, 350 and 500 MHz). Rigol alternatively offers the MSO4000 series with an additional built-in 16 channel logic analyzer.

Attention: All DS/MSO4000 are equipped with a new fan which is much more quiet than before!

Extendibility

The DS4000(E) Oscilloscopes can be upgraded with decoding functions (RS232, I²C, SPI, CAN, FlexRay) and advanced trigger options (Windows, Nth Edge, Video / HDTV, Delay, TimeOut, Duration und USB) by entering a serial code.

Bandwidth Upgrades

Rigol offers three upgrade options for both, DS models (Digital Storage Oscilloscopes) and MSO models (Mixed Signal Oscilloscopes) of the 4000 Series. It is mandatory that the latest Firmware is installed.

The following three upgrades are available:

  • BW2T3-MSO/DS4000 Bandwidth Upgrade from 200 MHz to 350 MHz for models MSO/DS402x (2/4 channel)
  • BW2T5-MSO/DS4000 Bandwidth Upgrade from 200 MHz to 500 MHz for models MSO/DS402x (2/4 channel)
  • BW3T5-MSO/DS4000 Bandwidth Upgrade from 350 MHz to 500 MHz for models MSO/DS403x (2/4 channel)

These are not available for the DS4000E Series.

Rigol DS4000 Oscilloscopes

4 of 4 Article

Rigol DS4014E

High quality 4 channel DSO with 100 MHz bandwidth, 2 GSa/s (per channel) and 14 Mpts memory depth (per channel).

Oszilloscope
Max. Capture Rate
60 kwfms/s
Analog Channels
4
Bandwidth
100 MHz
Samplerate
2 GSa/s
Memory
14 Mpts
A/D Converter
n/a
Display Size
22.9 cm
Adv. Math
Professional Usage
Serial Decoder
3 years warranty

Nr: DS4014E

with FREE shipping within the EU! Shipping costs outside EU
in 11-30 days after order in stock.
€ 1,695.-
net (VAT Details)
€ 2,017.05
incl. 19% VAT

Rigol DS4024E

High quality 4 channel DSO with 200 MHz bandwidth, 2 GSa/s (per channel) and 14 Mpts memory depth (per channel).

Oszilloscope
Max. Capture Rate
60 kwfms/s
Analog Channels
4
Bandwidth
200 MHz
Samplerate
2 GSa/s
Memory
14 Mpts
A/D Converter
8 bit
Display Size
22.9 cm
Adv. Math
Professional Usage
Serial Decoder
3 years warranty

Nr: DS4024E

with FREE shipping within the EU! Shipping costs outside EU
in 11-30 days after order in stock.
€ 2,195.-
net (VAT Details)
€ 2,612.05
incl. 19% VAT

Rigol DS4034

High quality 4 channel DSO with 350 MHz bandwidth, 4 GSa/s and 140 Mpts memory depth.

Oszilloscope
Max. Capture Rate
110 kwfms/s
Analog Channels
4
Bandwidth
350 MHz
Samplerate
4 GSa/s
Memory
140 Mpts
A/D Converter
8 bit
Display Size
22.9 cm
Adv. Math
Professional Usage
Serial Decoder
3 years warranty

Nr: DS4034

with FREE shipping within the EU! Shipping costs outside EU
in 11-30 days after order in stock.
€ 4,899.-
net (VAT Details)
€ 5,829.81
incl. 19% VAT

Rigol DS4054

High quality 4 channel DSO with 500 MHz bandwidth, 4 GSa/s and 140 Mpts memory depth.

Oszilloscope
Max. Capture Rate
110 kwfms/s
Analog Channels
4
Bandwidth
500 MHz
Samplerate
4 GSa/s
Memory
140 Mpts
A/D Converter
8 bit
Display Size
22.9 cm
Adv. Math
Professional Usage
Serial Decoder
3 years warranty

Nr: DS4054

with FREE shipping within the EU! Shipping costs outside EU
in 11-30 days after order in stock.
€ 7,099.-
net (VAT Details)
€ 8,447.81
incl. 19% VAT

Optionen und Zubehör

Accessory Rigol DS401x/DS405x

9 of 9 Article

Rigol DS/MSO4000 Option Bundle

Promotion Offer! Buy all MSO/DS4000 signal decoder options for the price of a single option!

This option contains:

  • Rigol SD-RS232-DS4
  • Rigol SD-I2C-SPI-DS4
  • Rigol SD-CAN-DS4
  • Rigol SD-FlexRay-DS4

Nr: BND-MSO/DS4000

with FREE shipping within the EU! Shipping costs outside EU
in Stock
€ 549.-
net (VAT Details)
€ 653.31
incl. 19% VAT

Rigol SD-RS232-DS4

Optional RS232/UART signal decoder module for MSO/DS4000 series devices

Nr: SD-RS232-DS4

with FREE shipping within the EU! Shipping costs outside EU
in Stock
€ 549.-
net (VAT Details)
€ 653.31
incl. 19% VAT

Rigol SD-I2C-SPI-DS4

Optional I²C and SPI signal decoder module for the MSO/DS4000 series devices

Nr: SD-I2C-SPI-DS4

with FREE shipping within the EU! Shipping costs outside EU
in Stock
€ 549.-
net (VAT Details)
€ 653.31
incl. 19% VAT

Rigol SD-AUTO-DS4

Optional CAN and LIN signal decoder module for the MSO/DS4000 series devices

Nr: SD-AUTO-DS4

with FREE shipping within the EU! Shipping costs outside EU
in Stock
€ 549.-
net (VAT Details)
€ 653.31
incl. 19% VAT

Rigol SD-FlexRay-DS4

Optional FlexRay signal decoder module for the MSO/DS4000 series devices

Nr: SD-FlexRay-DS4

with FREE shipping within the EU! Shipping costs outside EU
in Stock
€ 1,235.-
net (VAT Details)
€ 1,469.65
incl. 19% VAT

Rigol Calibration Kit

Calibration kit for the self calibration of the Rigol DS4000 and DS6000 oscilloscope series.

2 years warranty

Nr: Calibration Kit DS4000/6000

in 10-30 days in stock.
€ 29.-
net (VAT Details)
€ 34.51
incl. 19% VAT

Rigol T2R1000 Active Probe Adaptor

The T2R1000 active probe adaptor can be used to connect the TekProbe - BNC level II probe with RIGOL DS6000 series or MSO4000 / DS4000 series digital oscilloscope. It converts the TekProbe - BNC interface to RIGOL - Probe interface and supplies power, calibration and DC offset adjustment function for the probe.

2 years warranty

Nr: T2R1000

with FREE shipping within the EU! Shipping costs outside EU
in Stock
€ 289.-
net (VAT Details)
€ 343.91
incl. 19% VAT

Rigol DS6000 Demo Board

This Demo board is used to illustrate the basic functions of the oscilloscope. It is powered through USB port and can output 25 kinds of signals for the illustration of oscilloscope functions, i.e. sine, video (PAL/NTSC), AM Modulation, Sweeps, many digital signals and lots more.

2 years warranty

Nr: DS6000 Demo Board

with FREE shipping within the EU! Shipping costs outside EU
in Stock
€ 209.-
net (VAT Details)
€ 248.71
incl. 19% VAT

Rigol RM-DS-4

Rack Mounting Kit to mount the Rigol DS4000 series oszilloscopes in a 19" rack.

3 years warranty

Nr: RM-DS-4

with FREE shipping within the EU! Shipping costs outside EU
in 11-30 days after order in stock.
€ 319.-
net (VAT Details)
€ 379.61
incl. 19% VAT
