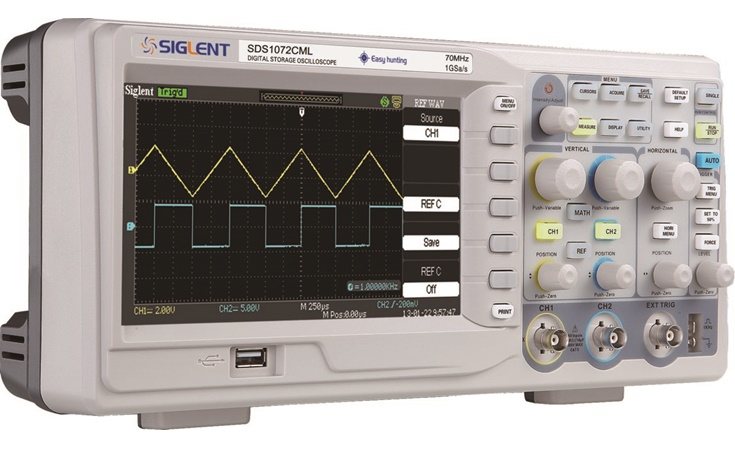

This Siglent SDS1072CML is a high quality two channel digital storage oscilloscope. It offers a real-time sample rate of up to 1 GSa/s, up to 70 MHz of bandwidth and a memory depth of 2 Mpts.
These Siglent SDS1000CML oscilloscopes are entry level-devices at affordable pricing without compromising on quality. The low pricing level results from the large amount of units sold as well as substantial economies. They are equipped with well designed and easy to use control panels offering comprehensive ease-of-use functions for all measuring tasks. The menu navigation is intuitive and available in several languages.
The particularly large TFT color displays are very easy to read. Thanks to an intelligent system for displaying or masking information, the largest possible area is always available for displaying signals. The signal curves, the FFT display, and other functions can be shown simultaneously on the display.
| Models | SDS1072CML | SDS1102CML | SDS1152CML |
|---|---|---|---|
| Bandwidth | 70 MHz | 100 MHz | 150 MHz |
| Sampling Rate (max.) | 1 GSa/s | 1 GSa/s | 1 GSa/s |
| Memory Depth | 2 Mpts | 2 Mpts | 2 Mpts |
| Channels | 2 | 2 | 2 |
Special Features
Cursor Measurements
Cursors report absolute and relative values in the Time and Volt axes of the main display. They may be manually or automatically adjusted to measure features of interest or set to track automatic measurements such as peak or RMS voltages, time periods and more.
Automatic Measurements
The Siglent SDS1000 oscilloscopes offer 32 different automatical time and voltage measurements for easy signal analysis.
Alternate Trigger
It is possible to trigger both channes independently to display signals with different frequencies.
Slope Trigger
Triggers on the signals rise or fall time using user defined parameters.
Digital Filter
Unique digital filters like High pass, Low pass, Band pass or Band Stop filters may improve the signal quality.
Pass / Fail Test
The Pass/Fail function monitors the changes of signals by comparing whether the input signal is within the pre-defined mask. The testing results not only can be displayed on screen or output by isolated pass/fail port, but also can be alarmed according to turn on system sound.
Fast Fourier Transformation
The FFT function provides spectrum analysis function for users. Supported FFT windows: Rectangle, Hanning, Hamming, Blackman.
USB Stick Support
The device supports an easy-to-use file system. It allows for both USB flash drive and local file storage.
Waveform Recorder
The Waveform Recorder can record input waveforms from CH1 and CH2 with a maximum record length of 2500 frames. This record behavior can also be activated by the pass/fail test output, which makes this function especially useful to capture abnormal signals in long term without keeping an eye watching it.| General Data | Siglent SDS1072CML |
|---|---|
| Display | 7" (17.78 cm) TFT true color LCD |
| Resolution | 480 × 234 Pixel |
| Size | 323 × 157 × 135 mm (12.7" × 6.1" × 5.3") |
| Weight | 2500 g (5.51 lbs) |
| Oscilloscope Details | Siglent SDS1072CML |
|---|---|
| Channels | 2 |
| Real-time sample rate | 1 GSa/s real time |
| Bandwidth | 70 MHz |
| Sampling mode | Normal, average, peak detect |
| Mathematics | A+B, A-B, A×B, A/B, FFT (Fast Fourier Transform) |
| FFT windows | Rectangle, Hanning, Hamming, Blackman |
| Signal | Siglent SDS1072CML |
|---|---|
| Max. Input voltage | 400 Vrms CAT I |
| Real-time sample rate | up to 1 GSa/s real time |
| Time base | 5 ns/Div. to 50 s/Div. (Steps 1 - 2.5 - 5) |
| Memory | 2 Mpts (1 channel) 1 Mpts (2 channels) |
| Vertical | Siglent SDS1072CML |
|---|---|
| Analog digital converter (A/D) | 8 bit |
| Sensitivity range (V/div) | 2 mV/Div to 10 V/Div. |
| Displacement range | ±10 Div. (2 mV - 10 V) |
| Trigger | Siglent SDS1072CML |
|---|---|
| Trigger | Channel 1, Channel 2, Ext, Ext / 5, AC Line |
| Signal system and line/field frequency (Video triggering mode) | Support the NTSC, PAL and SECAM broadcasting systems of any field or line frequency. |
| Measurement | Siglent SDS1072CML |
|---|---|
| Cursor measurement | Manual, Track and Auto Measure modes |
| Auto measurement | Vpp, Vmax, Vmin, Vamp, Vtop, Vbase, Vavg, Mean,Crms, Vrms, ROVShoot, FOVShoot, RPREShoot, FPREShoot, Rise time, Fall time, Freq, Period,+ Wid,－Wid, ＋Dut, －Dut, BWid, Phase, FRR, FRF, FFR, FFF, LRR, LRF, LFR, LFF |
