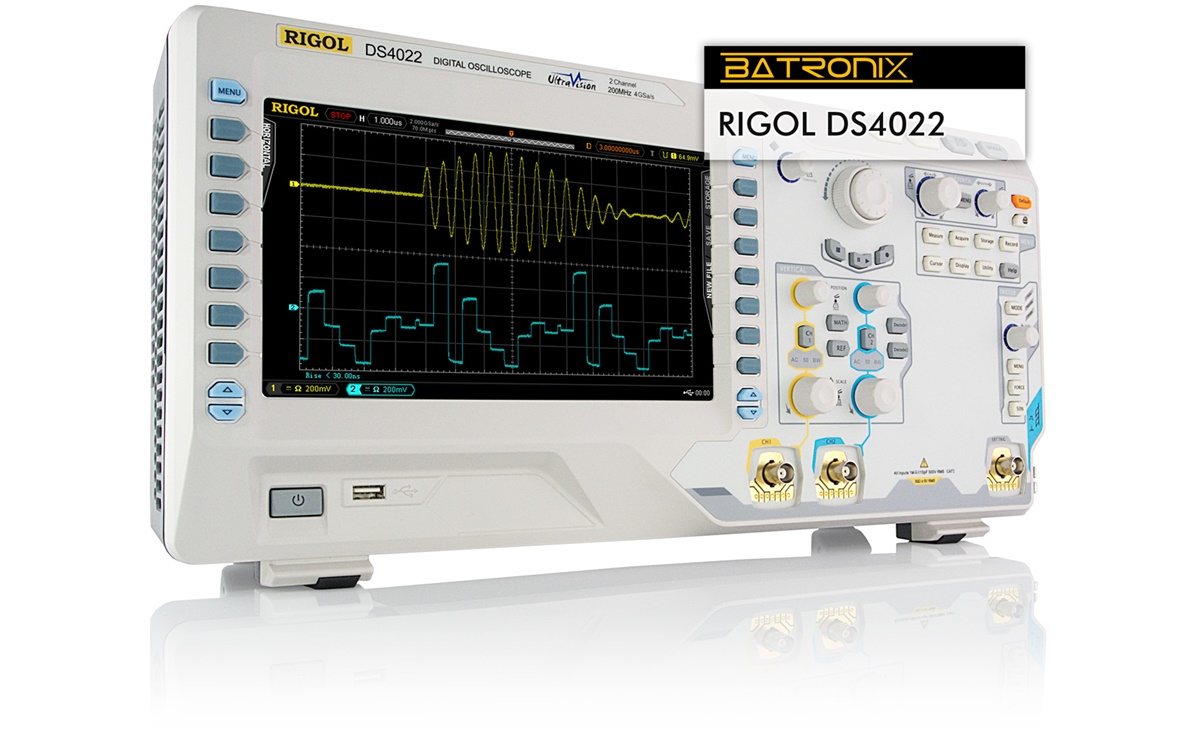

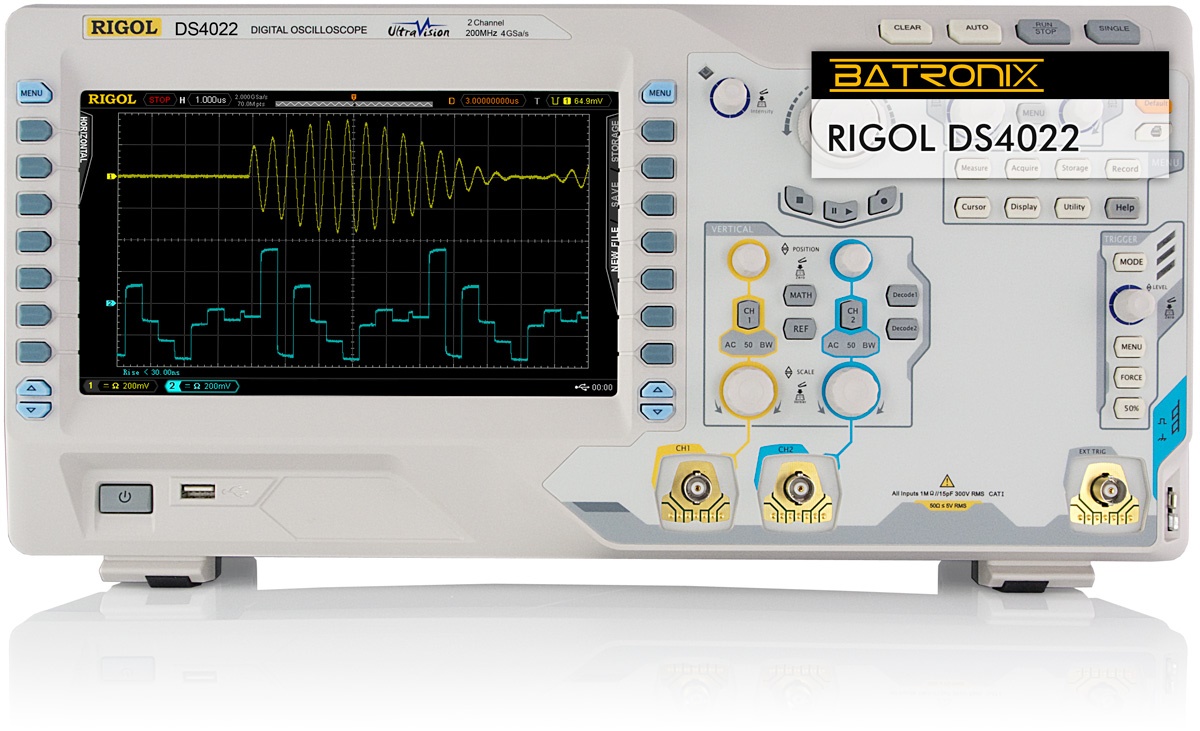

Rigol DS4022

7 Reviews

High quality 2 channel DSO with 200 MHz bandwidth, 4 GSa/s and 140 Mpts memory depth.

Big Rigol Promotion
2% discount on all Rigol measuring instruments and licences (accessories excluded).
(Valid until February 15, 2021)

This article is no longer available.

Description

The Rigol DS4022 is a very high quality two channel digital storage oscilloscope. It offers a real-time sample rate of up to 4 GSa/s and up to 200 MHz of bandwidth.

This high performance standard not only ensures capturing real-time instantaneous signals, but also observes details of repeated signals. The DS4012 has a refresh rate of up to 110.000 wfms/s, enabling users to capture instantaneous signals, as well as abnormal signals more quickly. It also helps to enhance the waveform capturing ability and to expedite a circuit debug course. The quality of the Rigol oscilloscopes is comparable to Agilent and Tektronix oscilloscopes.

Other advantages: 9" color LCD, bright and vivid waveform display; versatile trigger modes: i.e. slope, alternative, rise&fall edge, enables users to stabilize the signal more easily. In economic context, the DS4012 clearly has the highest performance standard and the largest number of functions, making it a top of the range oscilloscope.

Attention: All DS/MSO4000 are equipped with a new fan which is much more quiet than before!

Models with 2 channels	DS4012	DS4022	DS4032	DS4052
Bandwidth	100 MHz	200 MHz	350 MHz	500 MHz
Max. Sample rate	4 GSa/s	4 GSa/s	4 GSa/s	4 GSa/s
Waveform Capture Rate	110000 wfms/s	110000 wfms/s	110000 wfms/s	110000 wfms/s
Memory (standard, 1 CH)	140 Mpts	140 Mpts	140 Mpts	140 Mpts

Models with 4 channels	DS4014E	DS4014	DS4024E	DS4024	DS4034	DS4054
Bandwidth	100 MHz	100 MHz	200 MHz	200 MHz	350 MHz	500 MHz
Max. Sample Rate	4 × 2 GSa/s	4 GSa/s	4 × 2 GSa/s	4 GSa/s	4 GSa/s	4 GSa/s
Waveform Capture Rate (wfms/s)	60000	110000	60000	110000	110000	110000
Memory (standard, 1 CH)	4 × 14 Mpts	140 Mpts	4 × 14 Mpts	140 Mpts	140 Mpts	140 Mpts

Special Features

Innovative wider display

It is possible to observe up to 14 divisions on the innovative extra wide 9" display with a resolution of 800x480 pixels. Using the "Waveform Finder" it is easy to find a specific part of the recorded waveform.

Ultra Vision

Due to the very high capture rate and the huge memory it is possible to capture up to 110.000 waveforms per second. It is possible to store up to 140.000.000 single measurement points. With Ultra Vision you can zoom into a selected part of the captured waveforms to get more details.

$Picture: Advanced Math$

Advanced Math

The DS4000 series oscilloscopes comes with a modern and advanced math system which allows to solve complicated signal calculations quite simply using user defined formulas.

Auto measurements with statistics

The oscilloscope measures up to five parameters like rise- and fall-time, amplitude, pulse width, duty cycle and many more simultaneously and shows statistics for every parameter (max- , min- and average values).

Serial Bus Decoding

Serial data packages of different serial bus systems can be decoded. supported protocols are: Parallel (standard), RS232/UART (option), I²C (option), CAN (option) and FlexRay (option) The optional decoding modules can be bought separately, see accessories tab on this site.

Pass- / Fail- Signaltests mit Maskierung

Pass/fail testing can be used for troubleshooting in various environments like communication networks. Features: User defined masks, Pass/Fail counts, Stop on Fail, Fail Alarm

Specifications

General Data	Digital Oscilloscope Rigol DS4022
Display	9" WVGA-Color-LCD
Resolution	800 × 480 Pixel
Interface	2x USB-host for i.e. USB sticks USB-Device for a PC connection or USB Pict-Bridge printerinterface LAN for network connectivity (LXI compilant) GPIB (IEE-488, General Purpose Interface Bus) using the optional USB-GPIB Module Trigger- and Calibrationoutput 10 MHz reference clock In-/Out VGA interface to connect to an external monitor or projector
Size (W × H × D)	44 cm × 21.8 cm × 13 cm 17.32" × 8.58" × 5.12"
Weight	4.8 kg 10.58 lbs
Supported operation systems	Windows XP (32Bit + 64Bit) Windows Vista (32Bit + 64Bit) Windows 7 (32Bit + 64Bit)

Oscilloscope Functions	Digital Oscilloscope Rigol DS4022
Channels	2
Real-time sample rate	4 GSa/s realtime
Bandwidth	200 MHz
Sampling Modus	Normal, average, peak detect
Mathematics	userdefined, FFT (Fast Fourier Transform)
FFT windows	Rectangle, Hanning, Hamming, Blackman
Signal Bus Decoding	Parallel (standard), RS232/UART (option), I²C (option), CAN (option), FlexRay (option)

Signal	Digital Oscilloscope Rigol DS4022
Input	DC/AC coupling, CAT I 300 Vrms, CAT II 100 Vrms
Real-time sample rate	up to 4 GSa/s realtime
Time base	1 ns/div to 50 s/div
Memory	140 Mpts (1 Channel)

Vertical	Digital Oscilloscope Rigol DS4022
Analog digital converter (A/D)	With the resolution of 8 bits, make sampling on both channels synchronously.
Sensitivity range (V/div)	2 mV/div to 5 V/div
Offset range	2 mV/div to 5 V/div ± 40 V

Trigger	Digital Oscilloscope Rigol DS4022
Trigger	Channel, Ext, EXT/5
Signal system and line/field frequency (Video triggering mode)	PAL, NTSC, SECAM
Triggerfunctions	Edge, Pulse, Slope, Video, Pattern, RS232/UART, I²C, CAN, USB, FlexRay

Measurement	Digital Oscilloscope Rigol DS4022
Cursor measurement	Manual, Track and Auto Measure modes
Auto measurement	Vpp, Vamp, Vmax, Vmin, Vtop, Vbase, Vavg, Vrms, Preshoot, Overshoot, Frequency, Period, Rise Time, Fall time, Positive Width, Negative Width, Positive Duty Cycle, Negative Duty Cycle, Delay1-2 (rise), Delay1-2(fall), Phase1-2 (rise), Phase1-2 (fall)
