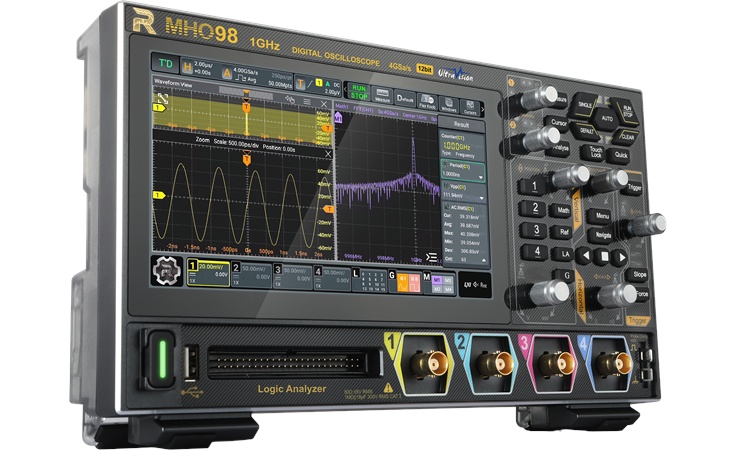

The limited Rigol MHO98 (only 1998 units worldwide) impresses with its high performance, compact design, and outstanding price-performance ratio. With its 12-bit resolution, it delivers exceptionally precise and detailed signal representation. Thanks to a maximum analog bandwidth of up to 1 GHz and four analog channels, the device is perfectly suited for demanding measurement tasks in development, research, and education.
With a sampling rate of up to 4 GSa/s and a maximum memory depth of 500 Mpts, the Rigol MHO98 enables seamless acquisition even of fast signal transitions. Its vertical sensitivity from 200 µV/div to 10 V/div and a maximum waveform capture rate of 1 Mwfms/s ensure the highest precision and reliable measurement results, even for weak signals. Measurements can be intuitively controlled via the 7-inch HD touchscreen (1024 × 600 pixels), while the practical Flex Knob provides comfortable operation and fast navigation.
For comprehensive analysis tasks, an integrated 2-channel function/arbitrary waveform generator (up to 100 MHz) is included, which also supports Bode plot analysis. In addition, the device features 16 digital channels and a included 200 MHz PLA2216 logic analyzer probe, allowing simultaneous acquisition and analysis of both analog and digital signals.
| Features | MHO98 |
|---|---|
| Channel | 4 |
| Bandwidth | 1 GHz |
| Sample rate | 1 channel with 4 GSa/s 2 channel with each 2 GSa/s 4 channel with each 1 GSa/s |
| Waveform capture rate | 30.000 wfms/s (1.000.000 wfms/s UltraAcquire Mode) |
| Memory depth | 1 channel with 100 Mpts (500 Mpts optional) 2 channel with each 50 Mpts (250 Mpts optional) 4 channel with each 20 Mpts (125 Mpts optional) |
| MHO900 | Bandwidth | Channel |
|---|---|---|
| MHO934 | 350 MHz | 4 |
| MHO954 | 500 MHz | 4 |
| MHO984 | 800 MHz | 4 |
You will find the specifications of the MHO98 series here.
Rigol MHO98 Limited Edition

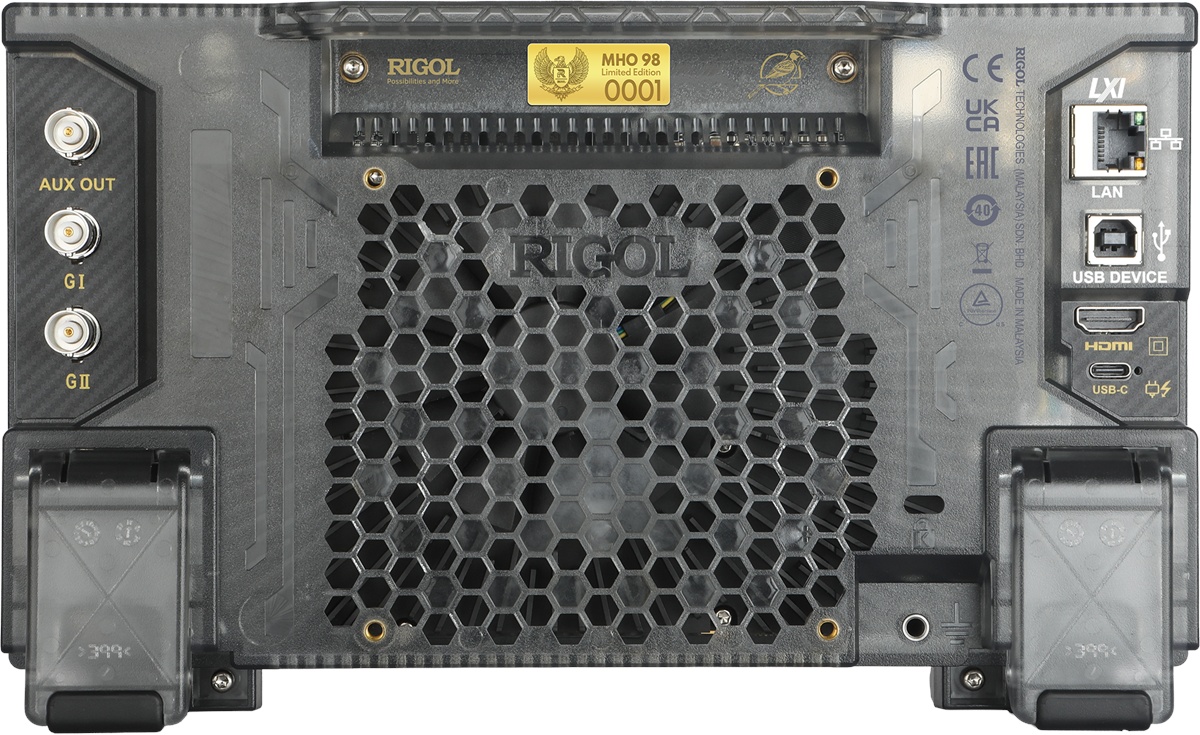

Limited Rigol MHO98 oscilloscope. Fully equipped with a maximum bandwidth of 1 GHz. Every MHO98 comes with a 24K gold nameplate. Each MH098 has a unique number, imprinted with its unique identity and glory.
12-bit ADC
High resolution & offset. Low noise signal path. More accurate measurements.
12-bit vertical resolution with 4096 levels of quantization, 16 times the quantization levels of 8-bit, adept at handling small signal testing.

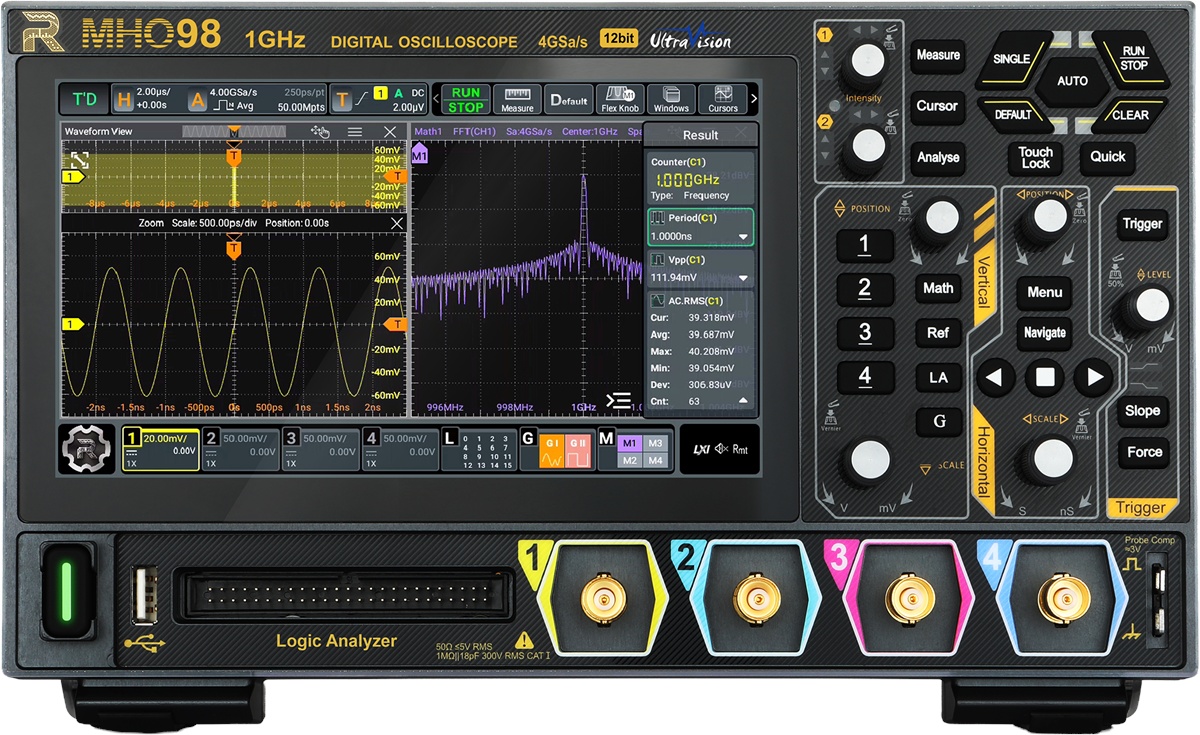

7-inch HD Touchscreen
7-inch high-definition touchscreen for more convenient human-machine interaction.
1.000.000 wfms/s acquisition rate
Find signal anomalies quickly. Smooth workflows – even with measurements, spectrum, math or long acquisitions.
- 1,000,000 wfms/s
- Acquire, process & display signals with unrivaled speed
- Detect signal faults & anomalies quickly
- Increase your statistical confidence
Support Type-C Power
Designed with a Type-C power interface, the MHO900 can be powered by just a portable power source, enabling on-site testing.
Sleek Design
The MHO900 series features a compact form factor and also supports standard monitor stand usage, effectively reducing desktop footprint and providing you with more ample workspace.
Supports Bode Plot Analysis
The MHO900 series supports an additional arbitrary function generator up to 100 MHz (AFG option), digital signal analysis, and Bode diagrams.
Standard Digital Channels
The MHO900 series comes equipped with digital channels as standard, allowing digital signal analysis when paired with the PLA2216 logic analysis probe.Downloads
