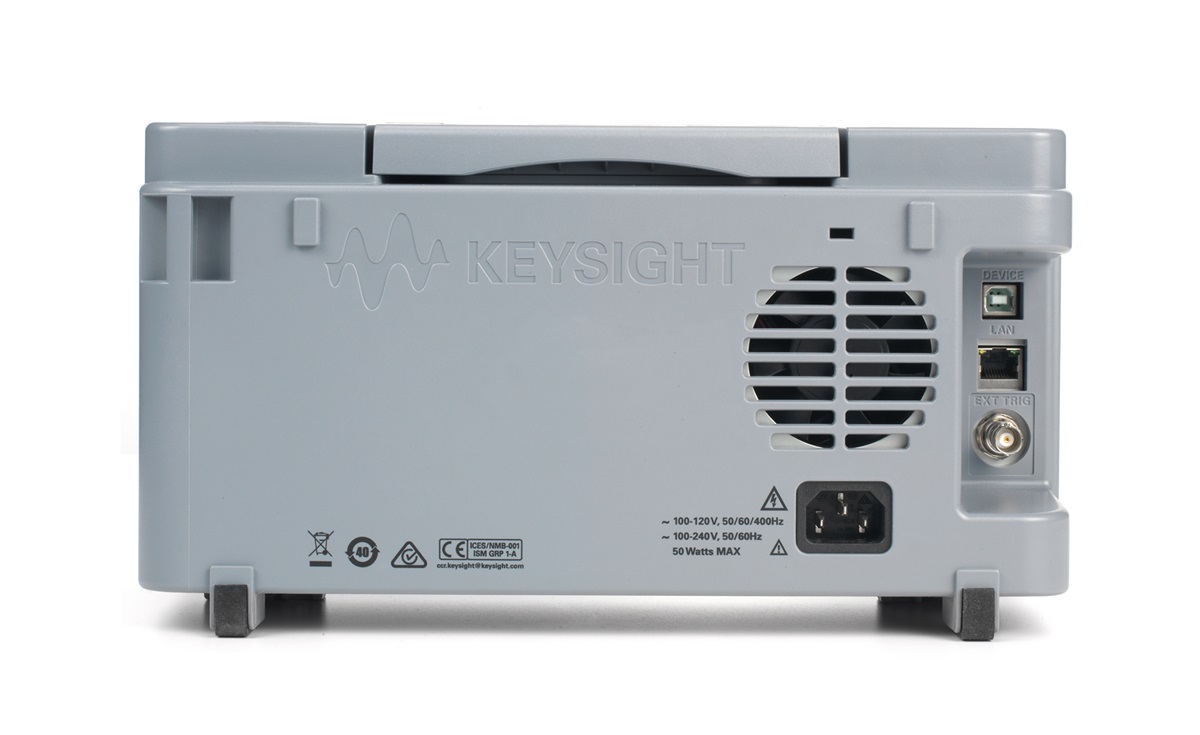

Name: Keysight DSOX1204G
Brand: Keysight
Availability: Discontinued
Rating: 5.0 (1 reviews)

Description

Keysight’s InfiniiVision 1000 X-Series oscilloscopes are engineered to give you quality, industry-proven technology at unbelievably low prices. Now it’s easy to get professional measurements and accessible expertise at your fingertips. Don’t settle for less – and test to impress.

The Keysight DSOX1204G oscilloscopes from the InfiniiVision X1000 series offers you a bandwidth of 70 MHz, upgradeable to 100 MHz or 200 MHz. The -G series offers a built-in 20 MHz function generator with modulation capability.

The 1000 X-Series is a family of low-cost oscilloscopes that don’t compromise on quality. Each model has measurement and standard software analysis capability that rivals oscilloscopes 3x the price.

Features	DSOX1202A	DSOX1202G	DSOX1204A	DSOX1204G
Channel	2	2	4	4
Bandwidth	70-200 MHz	70-200 MHz	70-200 MHz	70-200 MHz
Sample rate	2 GSa/s (one- or two-channel operation) 1 GSa/s (if external trigger view is turned on)	2 GSa/s (one- or two-channel operation) 1 GSa/s (if external trigger view is turned on)	2 GSa/s (one- or half-channel1 operation) 1 GSa/s (three- or four-channel operation)	2 GSa/s (one- or half-channel1 operation) 1 GSa/s (three- or four-channel operation)
Waveform capture rate	200000 wfms/s	200000 wfms/s	200000 wfms/s	200000 wfms/s
Memory depth	2 M points (one- or two-channel operation) 1 M points (if external trigger view is turned on)	2 M points (one- or two-channel operation) 1 M points (if external trigger view is turned on)	2 M points (one- or half-channel operation) 1 M points (three- or four-channel operation)	2 M points (one- or half channel operation). 1 M points (three- or four-channel operation)
Waveformgenerator
Serial decoder		I²C, R232 / UART, CAN and LIN		I²C, R232 / UART, CAN and LIN

You will find the specifications of the InfiniiVision 1000 X-series here.

InfiniiVision DSOX1000X (2 channel)	Bandwidth	Waveformgenerator
DSOX1202A	70 MHz, upgradeable to 100 MHz or 200 MHz
DSOX1202G	70 MHz, upgradeable to 100 MHz or 200 MHz

InfiniiVision DSOX1000X (4 Channel)	Bandwidth	Waveformgenerator
DSOX1204A	70 MHz, upgradeable to 100 MHz or 200 MHz
DSOX1204G	70 MHz, upgradeable to 100 MHz or 200 MHz

Special features

Hardware-based serial protocol decode and triggering

The 1000 X-Series is a powerful protocol analyzer that enables hardware-based specialized serial communication analysis (standard). Other vendors’ oscilloscopes use software post-processing techniques that slow down the waveform and decode update rate, but the 1000 X-Series has faster decoding based on hardware technology that enhances scope usability and the probability of capturing infrequent serial communication errors.

The EDUX models support I2C and UART/RS232 (standard). The DSOX models support I2C, SPI, UART/RS232, CAN and LIN (standard).

WaveGen (built-in 20 MHz function generator with modulation capability)

The 1000 X-Series offers an integrated 20 MHz function generator with modulation capability. It’s ideal for educational or design labs where bench space and budget are at a premium. The integrated function generator provides stimulus output of sine, square, ramp, pulse, DC and noise waveforms to your device under test. Add modulation to the signal with customizable AM, FM and FSK settings. No need to buy a separate function generator when you can get one integrated into your new oscilloscope.

Digital Voltmeter

The 1000 X-Series has an integrated 3-digit voltmeter (DVM) inside each oscilloscope. The voltmeter operates through probes connected to the oscilloscope channels, but its measurement is decoupled from the oscilloscope triggering system so both the DVM and triggered oscilloscope measurements can be made with the same connection. You can quickly measure AC RMS, DC, and DC RMS without configuring the oscilloscope capture. The voltmeter results are always displayed, keeping these quick characterization measurements at your fingertips. The built-in DVM comes standard in 1000 X-Series oscilloscopes.

Frequency Response Analyzer (Bode plot)

Frequency response analysis (gain & phase Bode plots) is a critical measurement to characterize amplifiers, passive networks, and power supply feedback networks. Bode plots are also fundamental concepts that every electrical engineering student should learn. The 1000 X-Series’ frequency response analyzer capability (standard in “G” models) is the perfect tool to help students understand the gain and phase performance of passive RLC circuits and amplifiers. This capability is achieved with a gain and phase measurement versus frequency (Bode plot). Vector network analyzers (VNAs) and low-cost frequency response analyzers are typically used for these measurements, but now an easy-to-use and affordable gain and phase analysis is possible by utilizing the 1000 X-Series’ built-in WaveGen and Bode plot capability.
