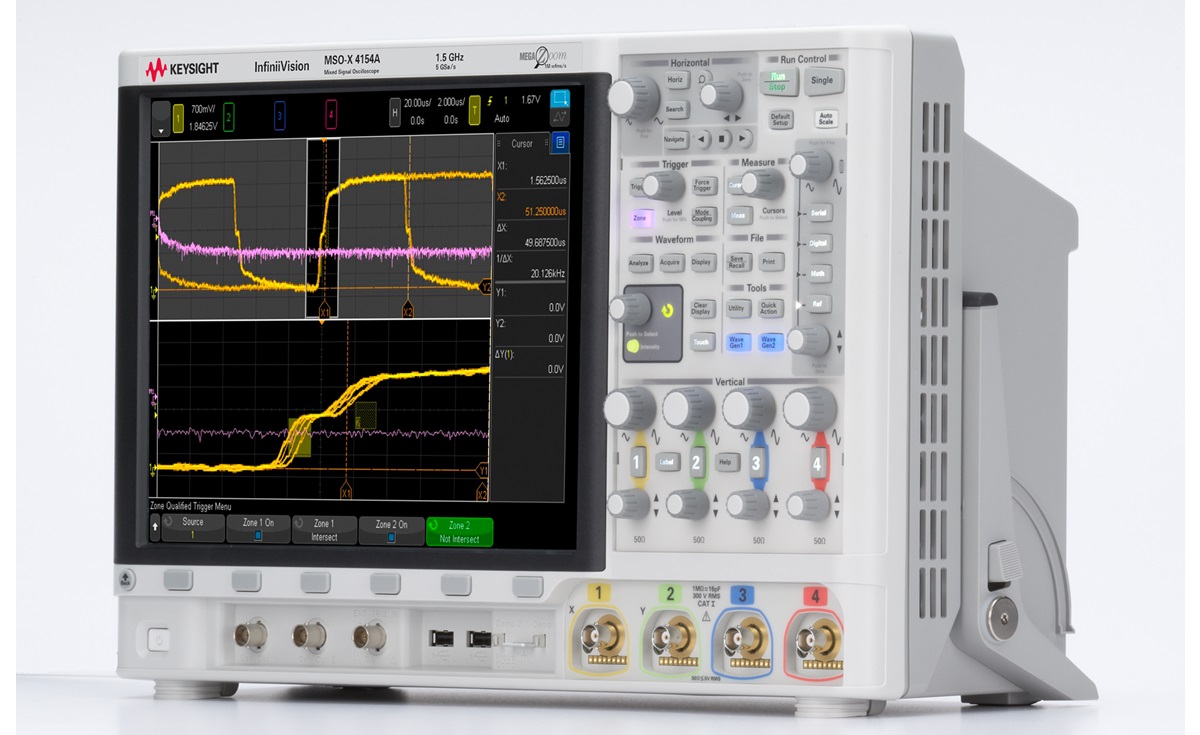

The Keysight 4000 X-Series oscilloscopes are engineered for next-generation performance, delivering waveform update rates up to 20 times faster than the competition to display the most signal detail. An industry-leading 12.1-inch capacitive touch screen with innovative hardware-based zone touch triggering provides the most intuitive interface to get your answers faster.
Anomalies and elusive events are the toughest to debug. The Keysight MSOX4154A oscilloscope redefines your debugging experience with MegaZoom IV smart memory technology. The industry-leading 1-million-waveforms-per-second update rate, means you see more of your signal behavior and can feel more confident in your design.
You may be surprised just how easy it is to use the InfiniiVision 4000 X-Series. A 12.1-inch capacitive touch screen − the industry’s largest − works just like your favorite tablet or smart phone, so debugging your devices is faster than ever before. Innovative zone touch triggering makes triggering on anything a snap. Just draw a box around signals of interest and the oscilloscope triggers on them. So, if you can see it, you can trigger on it.
|Bandwidth||200 MHz - 500 MHz||200 MHz - 1.5 GHz|
|Sample rate||5 GSa/s half channel interleaved 2.5 GSa/s all channels||5 GSa/s half channel interleaved 2.5 GSa/s all channels|
|Waveform capture rate||1000000 wfms/s||1000000 wfms/s|
|Memory depth||4 Mpts half channels 2 Mpts all channels||4 Mpts half channels 2 Mpts all channels|
You will find the specifications of the InfiniiVision 4000X X-series here.
|InfiniiVision DSOX4000A X (2 channel) (MSO Sets)||Bandwidth||Waveformgenerator||Logic analyzer|
|DSOX4022A||200 MHz (upgradeable)||Option (DSOX4WAVEGEN2)||Option (DSOX4MSO)|
|MSOX4022A||200 MHz (upgradeable)||Option (DSOX4WAVEGEN2)|
|DSOX4032A||350 MHz (upgradeable)||Option (DSOX4WAVEGEN2)||Option (DSOX4MSO)|
|MSOX4032A||350 MHz (upgradeable)||Option (DSOX4WAVEGEN2)|
|DSOX4052A||500 MHz||Option (DSOX4WAVEGEN2)||Option (DSOX4MSO)|
|MSOX4052A||500 MHz||Option (DSOX4WAVEGEN2)|
|InfiniiVision DSOX4000A (4 channel) (MSO Sets)||Bandwidth||Waveformgenerator||Logic analyzer|
|DSOX4024A||200 MHz (upgradeable)||Option (DSOX3WAVEGEN)||Option (DSOXT3MSO)|
|MSOX4024A||200 MHz (upgradeable)||Option (DSOX3WAVEGEN)|
|DSOX4034A||350 MHz (upgradeable)||Option (DSOX3WAVEGEN)||Option (DSOXT3MSO)|
|MSOX4034A||350 MHz (upgradeable)||Option (DSOX3WAVEGEN)|
|DSOX4054A||500 MHz (upgradeable)||Option (DSOX3WAVEGEN)||Option (DSOXT3MSO)|
|MSOX4054A||500 MHz (upgradeable)||Option (DSOX3WAVEGEN)|
|DSOX4104A||1 GHz (upgradeable)||Option (DSOX3WAVEGEN)||Option (DSOXT3MSO)|
|MSOX4104A||1 GHz (upgradeable)||Option (DSOX3WAVEGEN)|
|DSOX4154A||1.5 GHz||Option (DSOX3WAVEGEN)||Option (DSOXT3MSO)|
|MSOX4154A||1.5 GHz||Option (DSOX3WAVEGEN)|
The 4000 X-Series offers 16 optional, integrated and upgradable digital channels. Digital content is everywhere in today’s designs and traditional 2 and 4 channel oscilloscopes do not always provide enough channels for the job at hand. With an additional 16 integrated digital channels, you now have up to 20 channels for time-correlated acquisition and viewing on the same instrument. In addition to offering powerful triggering across the analog and digital channels, this also gives you additional channels to use for serial decode and triggering. If you buy a 2 or 4 channel DSO, you can upgrade it at any time to an MSO with a software license and 16-channel logic probe.
The 4000 X-Series offers an integrated 20 MHz function/arbitrary waveform generator, available with modulation support (DSOX4WAVEGEN). The function generator provides stimulus output of sine, square, ramp, pulse, DC, Sinc (x), exponential rise/fall, cardiac, Gaussian Pulse and noise waveforms. The modulation feature supports AM, FM, and FSK modulations with modulation shapes of sine, square, and ramp. The generator can output a continuous or a single-shot waveform. With AWG functionality, you can store waveforms from analog channels or reference memory to the arbitrary memory and output from WaveGen.
Frequency Response Analysis (FRA) is an often-critical measurement used to characterize the frequency response (gain and phase versus frequency) of a variety of today’s electronic designs, including passive filters, amplifier circuits, and negative feedback networks of switch mode power supplies (loop response). InfiniiVision 4000 X-Series oscilloscopes use the oscilloscope’s built-in waveform generator (WaveGen) to stimulate the circuit under test at various frequency settings and capture the input and output signals using two oscilloscope channels. At each test frequency, the oscilloscope measures, computes, and plots gain (20LogVout/Vin) and phase logarithmically.
Whether you are performing pass/fail tests to specified standards in manufacturing or testing for infrequent signal anomalies, mask/limit testing can be a valuable productivity tool. The 4000 X-Series features powerful hardware-based mask testing that can perform up to 270,000 tests per second. You can select multiple test criteria, including the ability to run tests for a specific number of acquisitions, a specified time, or until detection of a failure.
Segmented memory works in conjunction with serial protocol decode. For example, by setting the trigger condition to “CAN serial bus error,” segmented memory captures and stores only CAN error packets and stitches together each segment for easy viewing. You can quickly compare time tags in the event lister to discover time intervals between errors.
In addition to triggering on and decoding low-speed, full-speed, and hi-speed USB 2.0 signals (hi-speed trigger & decode require a 1.0 or 1.5 GHz model), the optional USB Software Package (D4000USBA) also supports USB 2.0 signal quality testing (hi-speed tests require the 1.5 GHz model). The USB 2.0 signal quality test with HTML pass/fail report generation includes eye-diagram mask testing, jitter analysis, EOP bit-width, signaling rate, edge monotonicity, and rise/fall times; all based on official USB-IF algorithms embedded in the oscilloscope.
