HDO4000 series digital oscilloscope is designed to meet the requirements for the design, debug, and test of the mainstream oscilloscope market. Adopting the brand-new chipset "Centaurus" developed by RIGOL, this series achieves a fast waveform capture rate of 1,500,000 wfms/s with the UltraAcquire mode, 500 Mpts memory depth, 12-bit vertical resolution, all combined with excellent noise floor performance and vertical accuracy to meet your requirements for more accurate measurements, bringing extraordinary T&M experience for you.

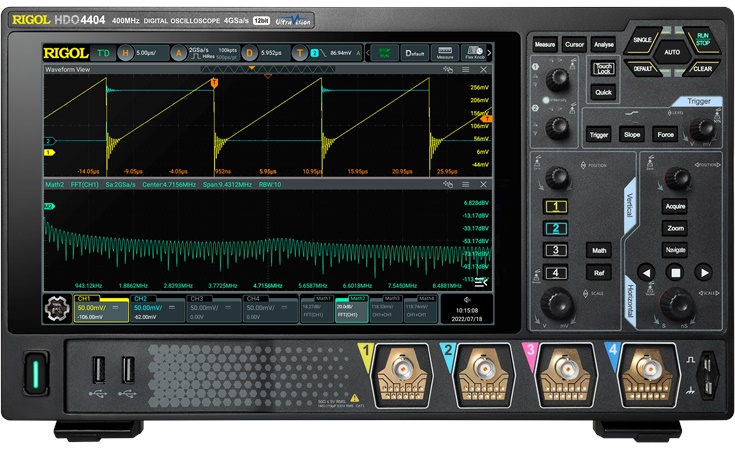

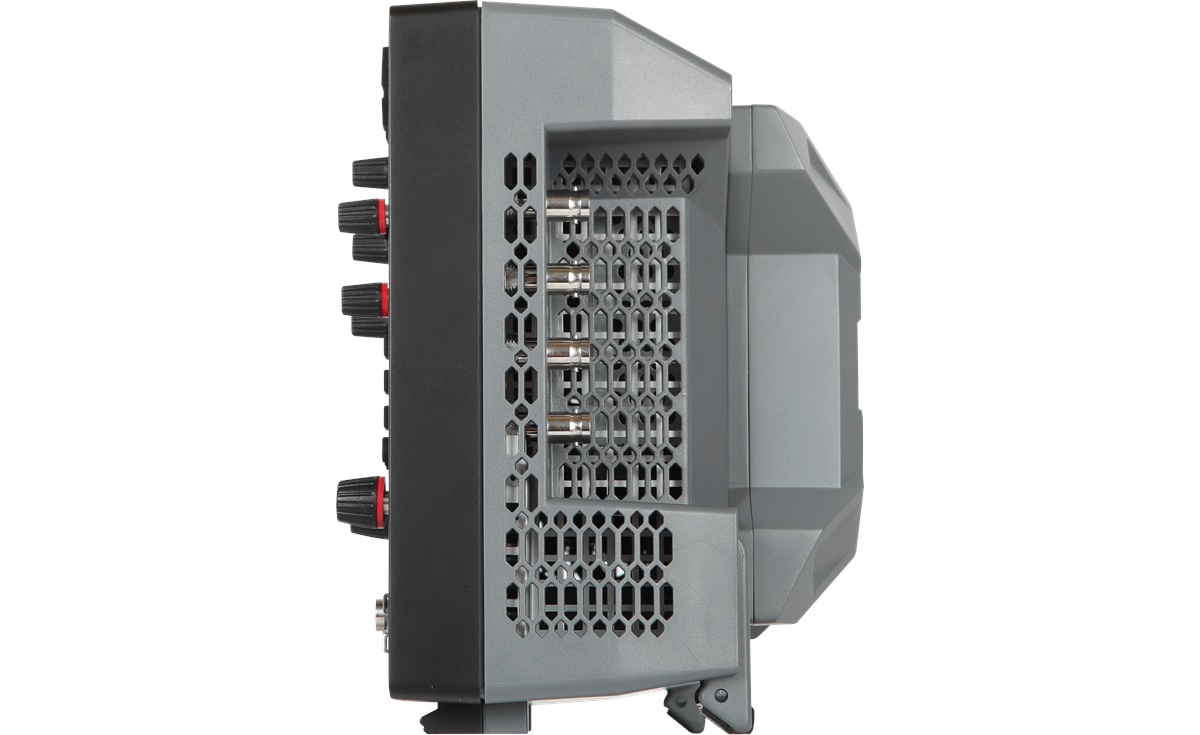

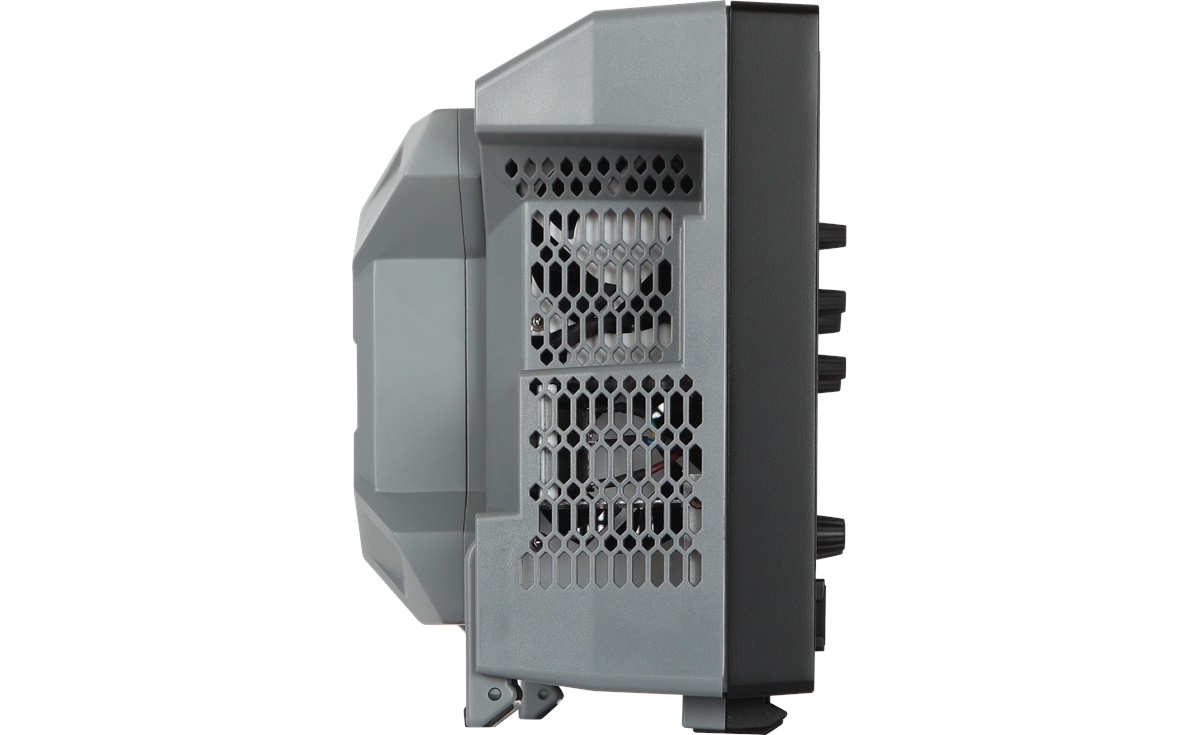

The Rigol HDO4404 is equipped with a clear 10.1" touch display with 1280*800 pixel.
| Features | HDO4000 |
|---|---|
| Channel | 4 |
| Bandwidth | 200 - 800 MHz |
| Sample rate | 1 channel with 4 GSa/s 2 channel with each 2 GSa/s 4 channel with each 1 GSa/s |
| Waveform capture rate | 1.500.000 wfms/s |
| Memory depth (standard) | 1 channel with 250 Mpts 2 channel with each 125 Mpts 4 channel with each 62.5 Mpts |
| Memory depth (max. via option) | 1 channel with 500 Mpts 2 channel with each 250 Mpts 4 channel with each 125 Mpts |
| HDO4000 | Bandwidth | Channel | Rise time (typ.) |
|---|---|---|---|
| HDO4204 | 200 MHz (upgradable) | 4 | ≤ 1.75 ns |
| HDO4404 | 400 MHz (upgradable) | 4 | ≤ 875 ps |
| HDO4804 | 800 MHz | 4 | ≤ 437 ps |
You will find the specifications of the HDO4000 series here.
Downloads
Datasheet
HDO4000 Datasheet
Language: English
File Size: 9.55 MiB
Release Date: 19.09.2022
Guide
HDO4000 Quickguide
Language: English
File Size: 3.83 MiB
Release Date: 19.09.2022
Manual
HDO4000 Manual
Language: English
File Size: 21.41 MiB
Release Date: 19.09.2022
