Owon HDS3102M Oscilloscope
1 of 1 Article
Innovative Tools. Excellent Service.
The new digital multimeter and storage oscilloscope HDS3102M-N offers reliably and high quality measurement technology at a really good price.

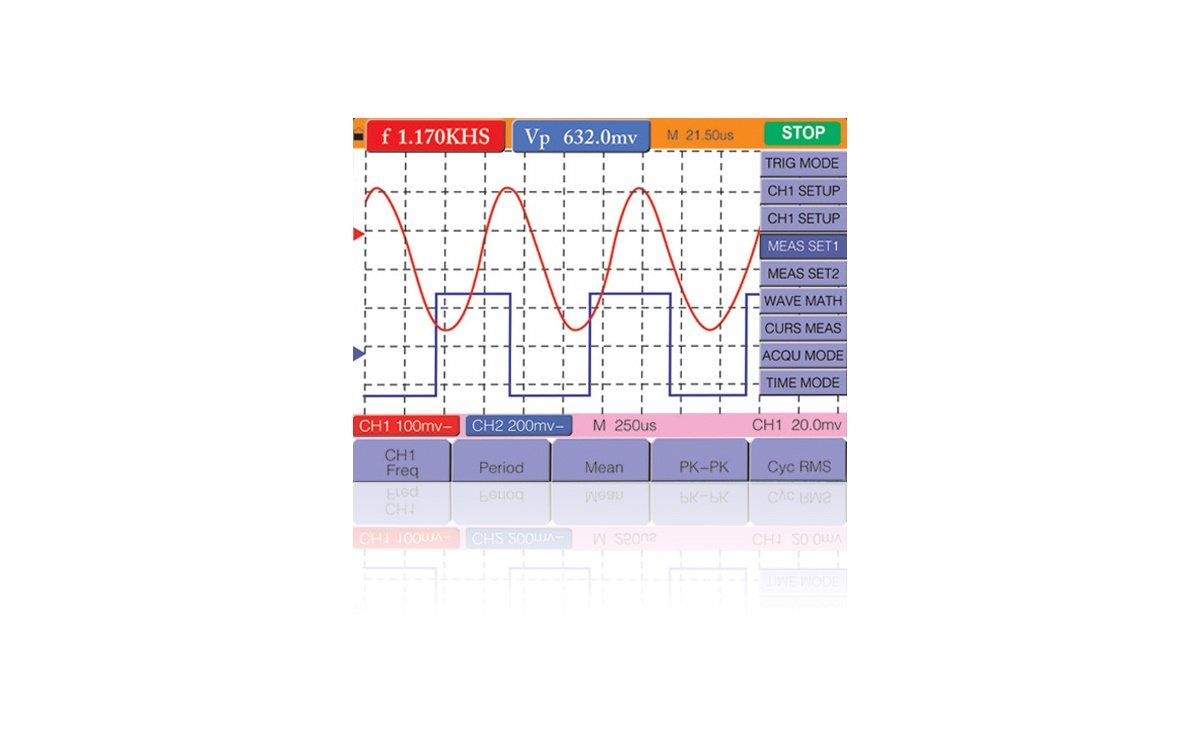

The colorful LCD panel with a resolution of 640 × 480 allows an excellent readability of the wave, especially in regards to high data volumes or many waves covered reciprocally.
The HDS3102M-N offers 100 MHz bandwidth and a sample rate of 1 GSa/s in dual Channel.
Delivery including an aluminium case, a lithium battery, 2 probes, an USB cable, PC software, a power adapter and a user manual.
| Multimeter details | HDS3102M-N |
|---|---|
| Voltages (DC) | 100 µV to 1000 V (±1% ± 2 Digit) |
| Voltages (AC) | 1 mV to 750 V (±1% ± 2 Digit) |
| Currents (DC) | 10 µA to 10 A (±1.5% ± 1 Digit to ±3% ± 3 Digits) |
| Currents (AC) | 10 µA to 10 A (±1.5% ± 3 Digit to ±5% ± 3 Digits) |
| Resistance | 0,1 Ω to 40 MΩ (±1% ± 1 Digit to ±1% ± 3 Digits) |
| Capacitances | 10 pF to 100 µF (±3% ± 3 Digits) |
| Diode test | Forward voltage 0 to 1,5 V |
| Oscilloscope details | HDS3102M-N |
|---|---|
| Channels | 2 |
| Real-time sample rate | 1 GSa/s real time |
| Bandwidth | 100 MHz |
| Display | 3.8" color TFT LCD |
| Resolution | 640 × 480 Pixel |
| Signal | HDS3102M-N |
|---|---|
| Max. Input voltage | 400 V (peak) |
| Real-time sample rate | 0.25 Sa/s to 500 MSa/s real time |
| Time base | 5 ns/Div. to 100 s/Div. (Steps 1 - 2,5 - 5) |
| Memory | 6000 points on each channel |
+:---------------------------------------------------------+:-------------------------------------------------------------------------------------------------------------+:+ |Vertical |HDS3102M-N | | +==========================================================+==============================================================================================================+=+ |Analog digital converter (A/D) |With the resolution of 8 bits, make sampling on both channels synchronously. | |
| Sensitivity range (V/div) | 5 mV/Div to 5 V/Div. | |
| Displacement range | ±0.6 V (5 mV/div to 50 mV/div) ±6 V (100 mV/div to 500 mV/div) ±30 V(1 V/div to 5 V/div) |
| Trigger | HDS3102M-N |
|---|---|
| Trigger | Channel 1 and 2 |
| Trigger displacement | Pre-Trigger: 655 Divisions Post-Trigger: 4 Divisions |
| Signal system and line/field frequency (Video triggering mode) | Support the NTSC, PAL and SECAM broadcasting systems of any field or line frequency. |
| Measurements | HDS3102M-N |
|---|---|
| Cursor measurement | Voltage difference (∆V) and time difference (∆T) between cursors |
| Auto measurement | Peak-to-peak value, average value, root mean square value, frequency, period, Vmax, Vmin, Vtop, Vbase, Overshoot, Preshot, Rise Time, Fall Time, and cycle. |
| Size and weight, software support | HDS3102M-N |
|---|---|
| Size | 180 × 115 × 40 mm (7.09" × 4.53" × 1.57") |
| Weight | 690 g (1.52 lb) |
| Supported operation systems | Windows XP(32Bit), Vista(32Bit), Windows 7(32Bit) |
