Name: Rigol DS1102D
Brand: Rigol
SKU: 4016138544831
Availability: Discontinued
Rating: 5.0 (3 reviews)

Description

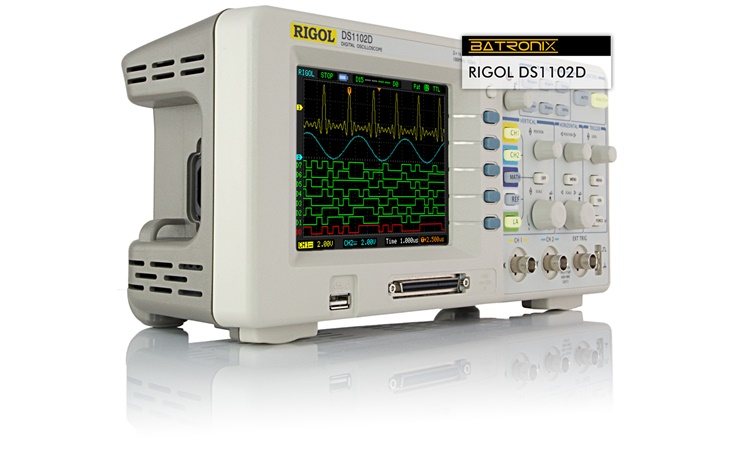

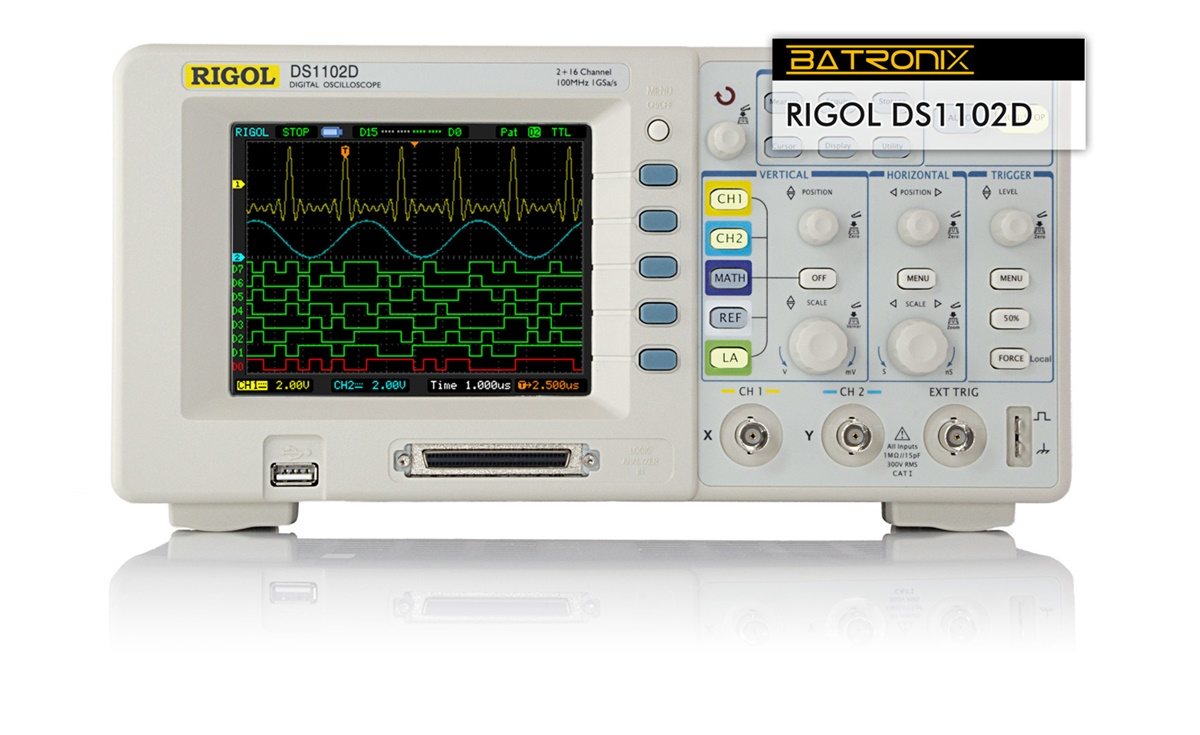

The Rigol DS1102D is a high quality two channel digital storage oscilloscope with a 16 channel logic analyzer. The DS1102D offers a real-time sample rate of up to 1 GSa/s and a bandwidth of up to 100 MHz. The fully integrated logic analyzer offers up to 200 MSa/s.

It not only has a compact design and 64K TFT color LCD, but also powerful functions: Up to 1M memory depth, Ultrazoom function, enabling users to observe details while surveying the whole waveform; 7 trigger modes, adjustable trigger sensitivity, USB Host to support USB flash memory and USB printer, and other traditional functions of RIGOL oscilloscopes. The quality of the Rigol oscilloscopes is comparable to Agilent and Tektronix oscilloscopes.

Special Features

Ultrazoom

You can sample up to 1 million measurement points with this oscilloscope. Easily zoom in and scroll within the signal. Survey macroscopically, observe microscopically.

Mixed Signal (Logic Analyzer) and Pattern Trigger

The Rigol DS1052D offers a real mixed signal mode. You can view both, analog channels and 16 digital channels at the same time.

Automatically and Cursor Measure

This oscilloscope series provides 20 types of wave parameters for automatically measuring, which contains 10 Voltage and 10 Time parameters. In cursor mode, users can easily measure by moving cursor. Besides, 3 types of cursor measurement are optional: Manual, Track and Auto.

Adjustable Trigger Sensitivity

With the Rigol oscilloscopes you have the ability to filter noise from the signal avoids false triggers.

Alternate Trigger

Provides a true dual timebase display.

Slope Trigger

Triggers on the signals rise time or fall time is user defined.

Rising and Falling Edge Trigger

Mainly used to view eye-diagrams normally only available in more advanced DSO's.

Pass / Fail Test

The Pass/Fail function monitors the changes of signals by comparing whether the input signal is within the pre-defined mask. The testing results not only can be displayed on screen or output by isolated pass/fail port, but also can be alarmed according to turn on system sound.

FFT (Fast Fourier Transformation)

The FFT function provides spectrum analysis function for users. Supported FFT windows: Rectangle, Hanning, Hamming, Blackman.

File System and USB Stick Support

The device supports an easy-to-use file system. It allows for both USB flash drive and local file storage.

Specifications

General Data	DSO Rigol DS1102D
Display	5.7" TFT LCD with 65536 colors
Resolution	320 × 234 Pixel
Size	303 mm × 154 mm × 133 mm
Weight	2.5 kg

Oscilloscope Details	DSO Rigol DS1102D
Channels	2
Real-time sample rate	1 GSa/s real time
Bandwidth	100 MHz
Sampling mode	Normal, average (2, 4, 8, 16, 32, 64, 128, 256), peak detect
Mathematics	A+B, A-B, A×B, FFT (Fast Fourier Transform)
FFT windows	Rectangle, Hanning, Hamming, Blackman

Signal	DSO Rigol DS1102D
Max. Input voltage	300 Vrms CAT I
Real-time sample rate	13 Sa/s to 1 GSa/s real time
Time base	5 ns/Div. to 50 s/Div. (Steps 1 - 2 - 5)
Memory	1M Messpunkte (1 channel) 512K Messpunkte (2 channels)

Vertical	DSO Rigol DS1102D
Analog digital converter (A/D)	With the resolution of 8 bits, make sampling on both channels synchronously.
Sensitivity range (V/div)	2 mV/Div to 10 V/Div.
Displacement range	±10 Div. (2 mV - 10 V)

Trigger	DSO Rigol DS1102D
Trigger	Channel 1, Channel 2, Ext, Ext / 5, AC Line
Signal system and line/field frequency (Video triggering mode)	Support the NTSC, PAL and SECAM broadcasting systems of any field or line frequency.

Measurement	DSO Rigol DS1102D
Cursor measurement	Manual, Track and Auto Measure modes
Auto measurement	Vpp, Vamp, Vmax, Vmin, Vtop, Vbase, Vavg, Vrms, Overshoot, Preshoot, Freq, Period, Rise Time, Fall Time, +Width, -Width, +Duty, -Duty, Delay1-2 (rise), Delay1-2(fall)
