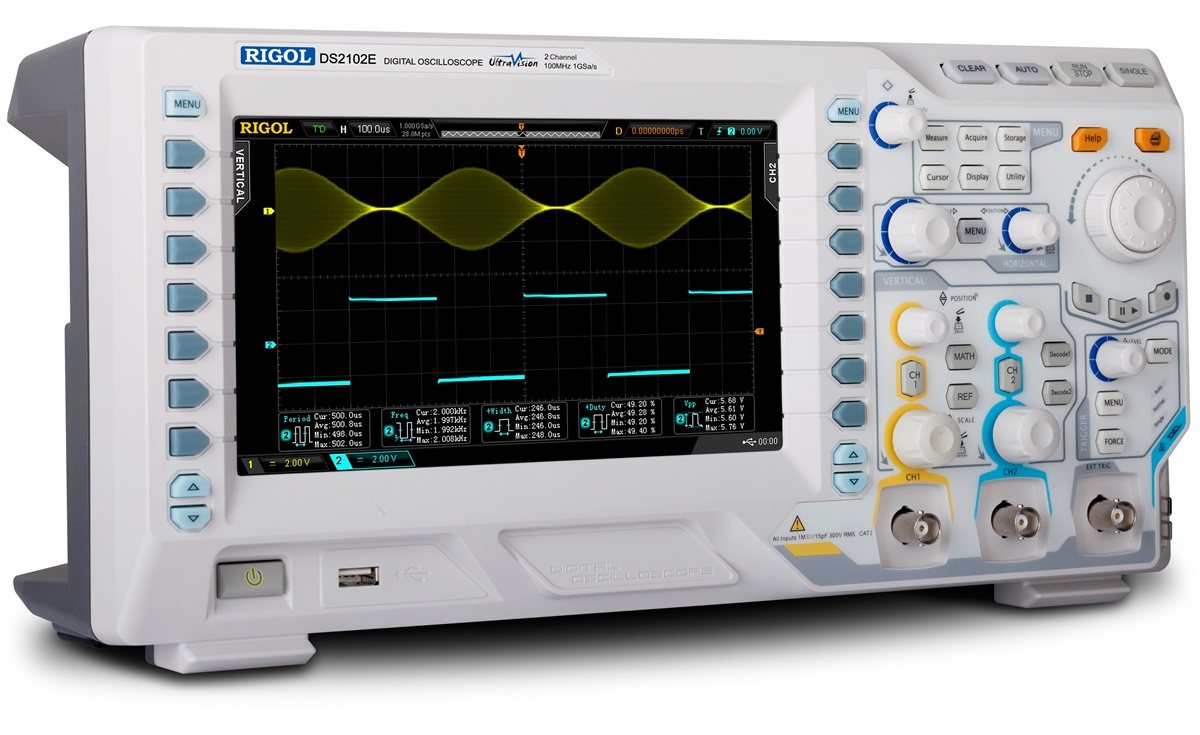

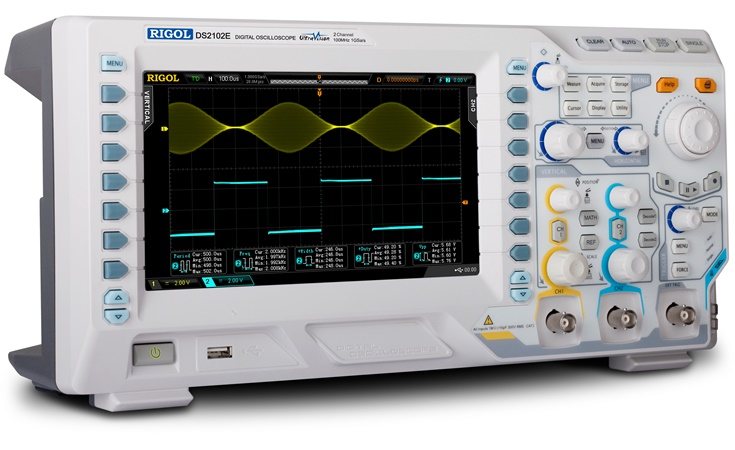

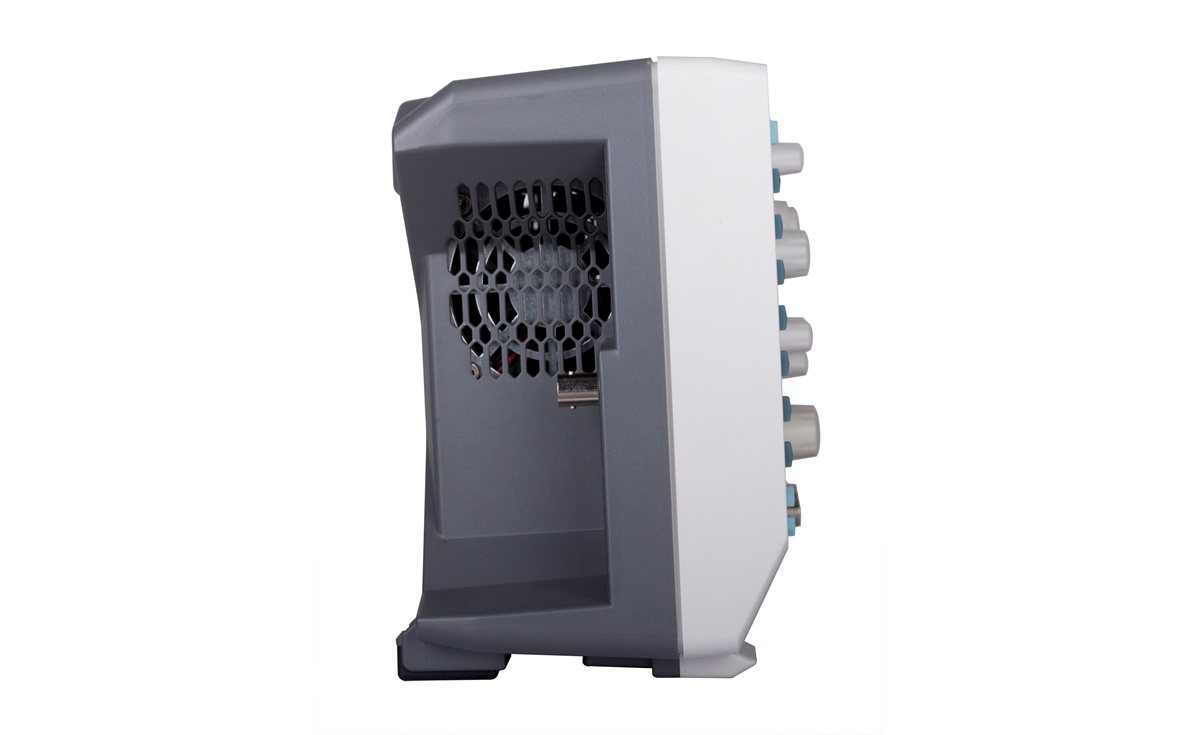

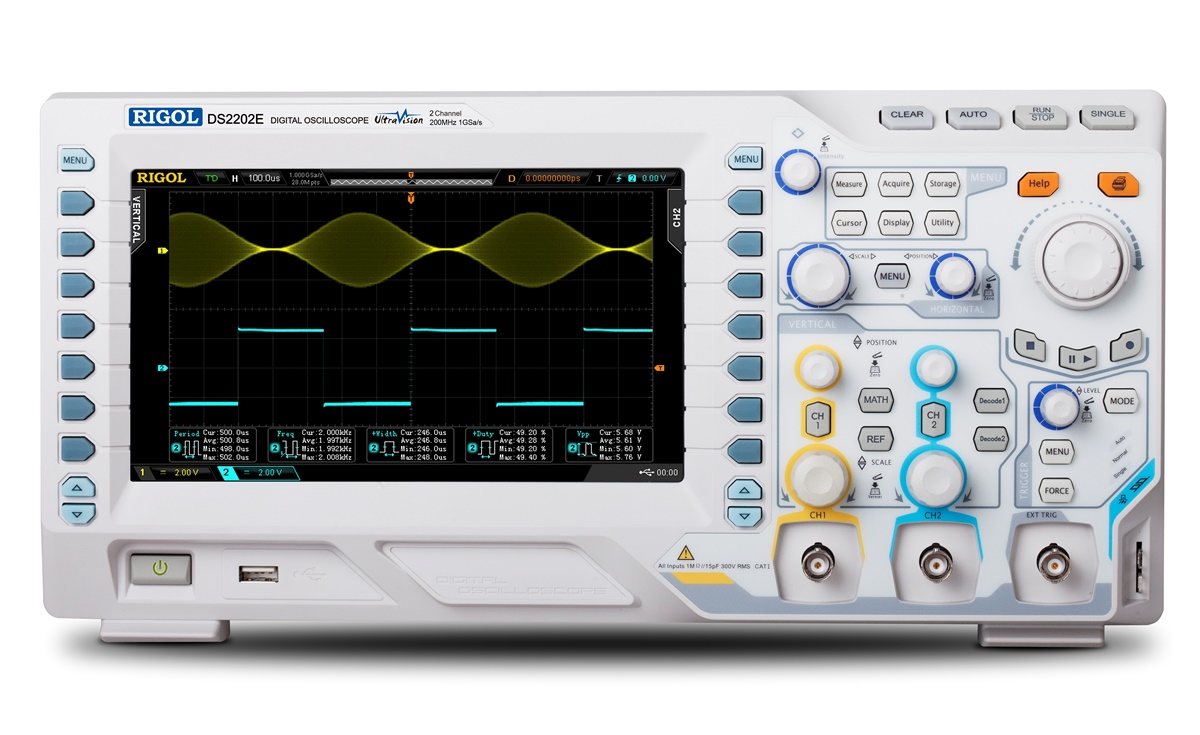

The Rigol DS2102E is a very high quality two channel digital storage oscilloscope. It features a real-time sample rate of up to 1 GSa/s per channel and a bandwidth of 100 MHz.
The Rigol oscilloscopes are equipped with well designed and easy to use controls offering comprehensive ease-of-use functions for all measuring tasks. The menu navigation is intuitive and available in several languages.
This high performance standard not only ensures capturing real-time instantaneous signals, but also observes details of repeated signals. The DS2072A has a refresh rate of up to 50.000 wfms/s, enabling users to capture instantaneous signals, as well as abnormal signals more quickly. It also helps to enhance the waveform capturing ability and to expedite a circuit debug course. The quality of the Rigol oscilloscopes is comparable to Agilent and Tektronix oscilloscopes.
The particularly large TFT color displays are very easy to read. Thanks to an intelligent system for displaying or masking information, the largest possible area is always available for displaying signals. The signal curves, the FFT display, and other functions can be shown simultaneously on the display.
| Model Overview | DS2102E | DS2202E |
|---|---|---|
| Bandwidth | 100 MHz | 200 MHz |
| Sample Rate (max.) | 1 GSa/s per channel | 1 GSa/s per channel |
| Waveform Capture Rate | 50000 wfms/s | 50000 wfms/s |
| Memory Depth | 28 Mpts / | 28 Mpts / |
Special Features
Great accuracy, low noise input
The DS2000A is able to measure very small signals, thanks to the measurement input stage which was newly developed by Rigol. The vertical resolution starts at 500uV (0.5 mV) per division. The screenshot shows the measurement of a scant 1 millivolt a squarewave signal (yellow).
Perfect frequency response design
The new measuring input stages behave almost perfectly even at the frequency response. On the screenshot you see a signal with a rise time of just 1.4 nanoseconds, with an amplitude of about 5 millivolts. The overshoot is below 5%.
Deeper Memory (14 Mpts / 56 Mpts)
The Rigol DS2000A oscilloscopes can store up to 14 million measurement points. You can zoom into a selected part of the captured waveforms to get more details and scroll within the measurement points. With the optional memory module MEM-DS2 even 56 million data points are available. The memory expansion module "MEM-DS2" is available on this page under the "accessories" tab.
Realtime waveform record, replay, analysis
The very high sampling rate of the Rigol DS2000A Oscilloscope and the large memory makes it possible to record up to 50,000 waveforms per second. The recorded waveforms can be conveniently displayed and analyzed.
Multi-Level Intensity Grading Display
With the "Multi-Level Grading Intensity" display, extensive signal characteristics with a very large number of measurement values can also be displayed completely.
Serial bus trigger functions (RS232, I²C, SPI)
Triggering on serial bus systems (RS232/UART, I ² C and SPI) is already included.
Serial bus decoding function
With the optional "SD-DS2 Decoding Kit" serial data packages of different serial bus systems can be analyzed, decoded, and displayed directly as byte values. Supported protocols are: RS232/UART, I²C, and SPI. The serial decoding module "SD-DS2" is available on this page under the "accessories" tab.
Comprehensive trigger functions
The Rigol DS2000A oscilloscopes offer comprehensive trigger options, allowing a professional use. The special trigger "Windows", "Nth Edge", HDTV, delay, time out, duration and USB are available with the optional "AT-DS2 Advanced Trigger" module, available on this page under the "Accessories" tab.
Runt Trigger
In the "runt trigger" mode, the scope can trigger on dwarf pulses. Dwarf pulses are short pulses that do not reach the full amplitude. For this trigger mode three voltage thresholds can be defined (eg, 10%, 50% and 90%). If the signal passes the first two thresholds in one direction, but doesn?t reach the third, the trigger fires.
Advanced Math
The DS2000A series oscilloscopes comes with a modern and advanced math system which lets it solve complicated signal calculations quite simply with user defined formulas.
Masked Pass/Fail-Tests
Pass/fail testing can be used for troubleshooting in various environments like communication networks. Features: User defined masks, Pass/Fail counts, Stop on Fail, Fail Alarm
Auto measurements with statistics
The oscilloscope measures up to five parameters like rise- and fall-time, amplitude, pulse width, duty cycle and many more simultaneously and shows statistics for every parameter (max- , min- and average values).| General Data | Digital Oscilloscope Rigol DS2102E |
|---|---|
| Display | 20.32 cm (8") WVGA-Color-LCD |
| Resolution | 800 × 480 Pixel |

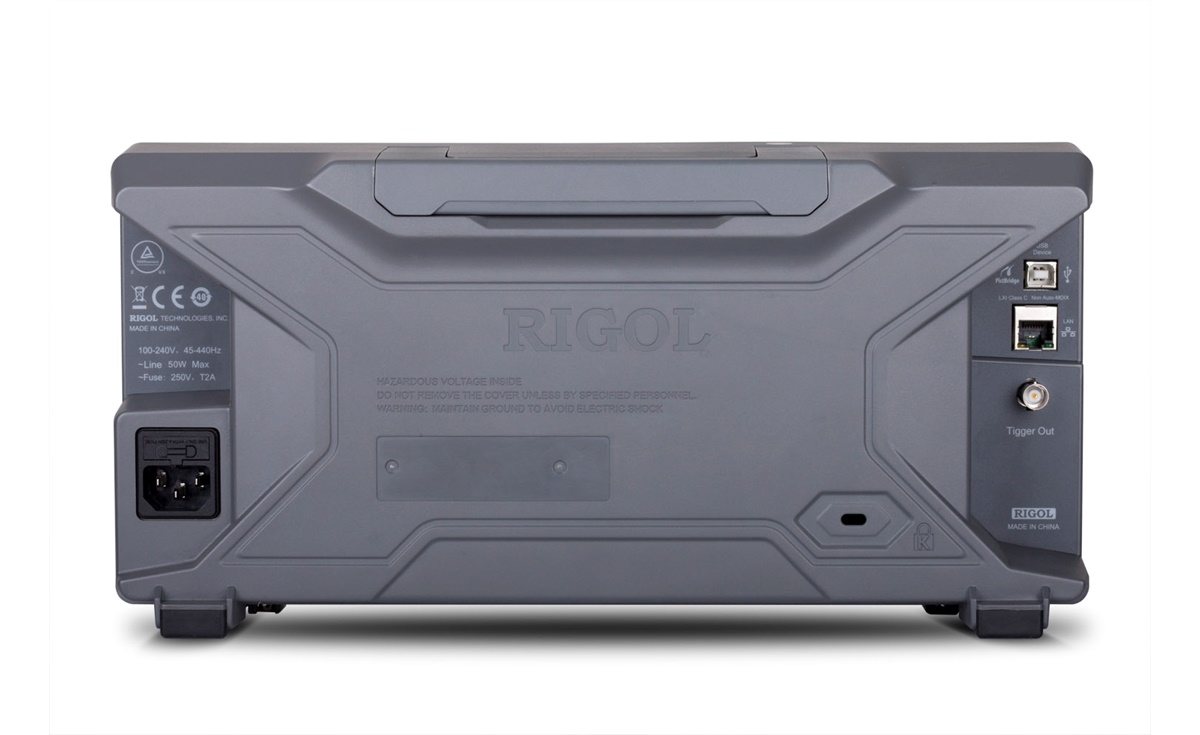

| Interface | USB-host for i.e. USB sticks USB-Device for a PC connection or USB Pict-Bridge printerinterface LAN for network connectivity (LXI compilant) GPIB (IEE-488, General Purpose Interface Bus) using the optional USB-GPIB Module GPIB (IEE-488, General Purpose Interface Bus) über das USB-GPIB Modul Module Trigger- and Calibrationoutput |
| Size (W × H × D) | 362 mm × 180 mm × 131 mm |
| Weight | 3.9 kg |
| Supported operation systems | Windows XP(32Bit), Vista(32Bit), Windows 7(32Bit) |
| Oscilloscope Functions | Digital Oscilloscope Rigol DS2102E |
|---|---|
| Channels | 2 |
| Real-time sample rate | 1 GSa/s realtime (1 Channel) |
| Bandwidth | 100 MHz |
| Sampling Modus | Normal, average, peak detect |
| Mathematics | userdefined, FFT (Fast Fourier Transform) |
| FFT windows | Rectangle, Hanning, Hamming, Blackman |
| Signal Bus Decoding | RS232/UART (optional), I²C (optional), SPI (optional) |
| Signal | Digital Oscilloscope Rigol DS2102E |
|---|---|
| Input | DC/AC Kopplung, CAT I 300 Vrms, CAT II 100 Vrms |
| Real-time sample rate | up to 1 GSa/s realtime |
| Memory | 28 Mpts (1 Channel) |
| Vertical | Digital Oscilloscope Rigol DS2102E |
|---|---|
| Analog digital converter (A/D) | 12 Bit at ≥ 5 µs/div 8 Bit at ≤ 2 µs/div |
| Sensitivity range (V/div) | 500 µV/div to 5 V/div |
| Offset range | 500 µV/div to 10 V/div |
| Trigger | Digital Oscilloscope Rigol DS2102E |
|---|---|
| Trigger | Channel, Ext |
Signal system and line/field frequency (Video Trigger mode) | PAL, NTSC, SECAM 480P, 576P, 720P, 1080P and 1080I HDTV standards |
| Triggerfunktionen | Edge, Pulse, Slope, Video, Pattern, RS232/UART, I²C, CAN, USB, FlexRay |
| Measurement | Digital Oscilloscope Rigol DS2102A |
|---|---|
| Cursor measurement | Manual, Track and Auto Measure modes |
| Auto measurement | Vpp, Vamp, Vmax, Vmin, Vtop, Vbase, Vavg, Vrms, Preshoot, Overshoot, Frequency, Period, Rise Time, Fall time, Positive Width, Negative Width, Positive, Duty Cycle, Negative Duty Cycle, Delay1-2 (rise), Delay1-2 (fall), Phase1-2 (rise), Phase1-2 (fall) |
