The InfiniiVision 3000A X-Series redefined oscilloscopes. It saw the most signal detail, provided more functionality than any other oscilloscope, and gave you maximum investment protection. It was also the most successful oscilloscope in Hewlett Packard, Agilent and Keysight Technologies, Inc.’s history. The 3000T X-Series continues that legacy.

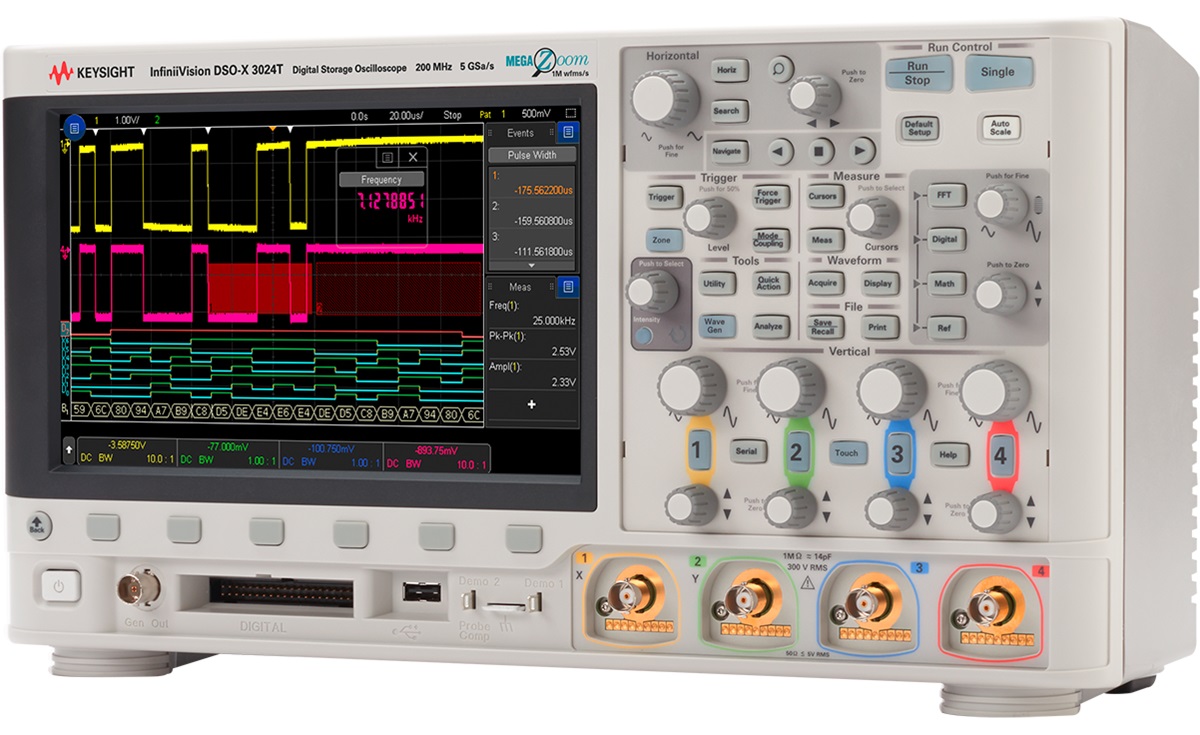

The Keysight DSOX3024T takes everything that was revolutionary about the A model and adds a capacitive touch screen, a user interface designed for touch, and the exclusive zone touch trigger, all combined with an industry-leading uncompromised update rate of 1 million wfm/s to give you the confidence that you’re seeing all of your signal detail, and the ability to discover any issues.
And the addition of new analysis capabilities help you solve your hardest problems quickly.
The Keysight DSOX3024T once again redefines what you can expect in a general purpose oscilloscope by providing all of the performance and capability you need to get to measurement insights faster
|Bandwidth||100 MHz - 1 GHz||100 MHz - 1 GHz|
|Sample rate||5 GSa/s half channels 2.5 GSa/s all channels||5 GSa/s half channels 2.5 GSa/s all channels|
|Waveform capture rate||1000000 wfms/s||1000000 wfms/s|
|Memory depth||4 Mpts half channels 2 Mpts all channels||4 Mpts half channels 2 Mpts all channels|
You will find the specifications of the InfiniiVision 3000T X-series here.
|InfiniiVision DSOX3000TX (2 channel) (MSO Sets)||Bandwidth||Waveformgenerator||Logic analyzer|
|DSOX3012T||100 MHz (upgradeable)||Option (DSOX3WAVEGEN)||Option (DSOXT3MSO)|
|MSOX3012T||100 MHz (upgradeable)||Option (DSOX3WAVEGEN)|
|DSOX3022T||200 MHz (upgradeable)||Option (DSOX3WAVEGEN)||Option (DSOXT3MSO)|
|MSOX3022T||200 MHz (upgradeable)||Option (DSOX3WAVEGEN)|
|DSOX3032T||350 MHz (upgradeable)||Option (DSOX3WAVEGEN)||Option (DSOXT3MSO)|
|MSOX3032T||350 MHz (upgradeable)||Option (DSOX3WAVEGEN)|
|DSOX3052T||500 MHz (upgradeable)||Option (DSOX3WAVEGEN)||Option (DSOXT3MSO)|
|MSOX3052T||500 MHz (upgradeable)||Option (DSOX3WAVEGEN)|
|DSOX3102T||1 GHz||Option (DSOX3WAVEGEN)||Option (DSOXT3MSO)|
|MSOX3102T||1 GHz||Option (DSOX3WAVEGEN)|
|InfiniiVision DSOX3000TX (4 channel) (MSO Sets)||Bandwidth||Waveformgenerator||Logic analyzer|
|DSOX3014T||100 MHz (upgradeable)||Option (DSOX3WAVEGEN)||Option (DSOXT3MSO)|
|MSOX3014T||100 MHz (upgradeable)||Option (DSOX3WAVEGEN)|
|DSOX3024T||200 MHz (upgradeable)||Option (DSOX3WAVEGEN)||Option (DSOXT3MSO)|
|MSOX3024T||200 MHz (upgradeable)||Option (DSOX3WAVEGEN)|
|DSOX3034T||350 MHz (upgradeable)||Option (DSOX3WAVEGEN)||Option (DSOXT3MSO)|
|MSOX3034T||350 MHz (upgradeable)||Option (DSOX3WAVEGEN)|
|DSOX3054T||500 MHz (upgradeable)||Option (DSOX3WAVEGEN)||Option (DSOXT3MSO)|
|MSOX3054T||500 MHz (upgradeable)||Option (DSOX3WAVEGEN)|
|DSOX3104T||1 GHz||Option (DSOX3WAVEGEN)||Option (DSOXT3MSO)|
|MSOX3104T||1 GHz||Option (DSOX3WAVEGEN)|
The 3000T X-Series offers 16 optional, integrated and upgradable digital channels. Digital content is everywhere in today’s designs and traditional 2 and 4 channel oscilloscopes do not always provide enough channels for the job at hand. With an additional 16 integrated digital channels, you now have up to 20 channels of time-correlated acquisition and viewing on the same instrument. In addition to offering powerful triggering across the analog and digital channels, this also gives you additional channels to use for serial decode and triggering. And if you buy a 2 or 4 channel DSO, you can upgrade it at any time to an MSO with a software license and 16-channel logic probe.
The 3000T X-Series offers an integrated 20 MHz function/arbitrary waveform generator, available with modulation support (DSOX3WAVEGEN). The function generator provides stimulus output of sine, square, ramp, pulse, DC, Sinc (x), exponential rise/fall, cardiac, Gaussian Pulse and noise waveforms to your device under test. The modulation feature supports AM, FM, and FSK modulations with modulation shapes of sine, square, and ramp. The generator can output a continuous or a single-shot waveform. With AWG functionality, you can store waveforms from analog channels or reference memory to the arbitrary memory and output from WaveGen.
Frequency Response Analysis (FRA) is an often-critical measurement used to characterize the frequency response (gain and phase versus frequency) of a variety of today’s electronic designs, including passive filters, amplifier circuits, and negative feedback networks of switch mode power supplies (loop response). InfiniiVision 3000T X-Series oscilloscopes use the oscilloscope’s built-in waveform generator (WaveGen) to stimulate the circuit under test at various frequency settings and capture the input and output signals using two oscilloscope channels. At each test frequency, the oscilloscope measures, computes, and plots gain (20LogVout/Vin) and phase logarithmically.
Traditional oscilloscope counter measurements offer only five or six digits of resolution, which may not be enough for the most critical frequency measurements are being made. With the 3000T X-Series’ standard 8-digit counter, you can see your measurements with the precision you would normally expect only from a standalone counter. Because the integrated counter measures frequencies up to a wide bandwidth of 1.0 GHz, you can use it for many high-frequency applications as well.
Whether you are performing pass/fail tests to specified standards in manufacturing or testing for infrequent signal anomalies, mask/limit testing can be a valuable productivity tool. The 3000T X-Series features powerful hardware-based mask testing that can perform up to 270,000 tests per second. You can select multiple test criteria, including the ability to run tests for a specific number of acquisitions, a specified time, or until detection of a failure.
